2004 Isuzu Ascender 2WD L6-4.2LFACTORY OEM SERVICE PROCEDURE

Lumbar Replacement - Front Seat

Lumbar Replacement - Front Seat

Removal Procedure

1. Remove the front seat from the vehicle.
2. Remove the seat back cover and pad.
3. Remove the seat back panel.

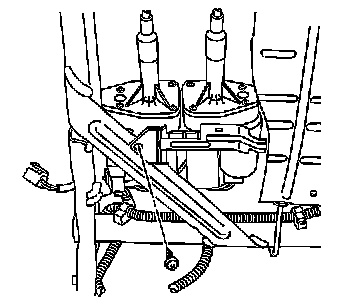

4. Disconnect the electrical connector from the lumbar motor.
5. Detach the lumbar clip from the top of the seat back frame.

6. Remove the lumbar motor mounting screw.
7. Remove the lumbar assembly from the seat.

Installation Procedure

1. Position the lumbar assembly onto the seat.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the lumbar motor mounting screw.

Tighten the lumbar motor mounting screw to 8 N.m (71 lb in).

3. Attach the lumbar clips onto the top and bottom of the seat back frame.
4. Connect the electrical connector to the lumbar motor.
5. Install the seat back panel.
6. Install the seat back pad and cover.
7. Install the seat in the vehicle.
