2004 Isuzu Ascender 2WD L6-4.2LFACTORY OEM SERVICE PROCEDURE
Memory Positioning Systems: Diagrams

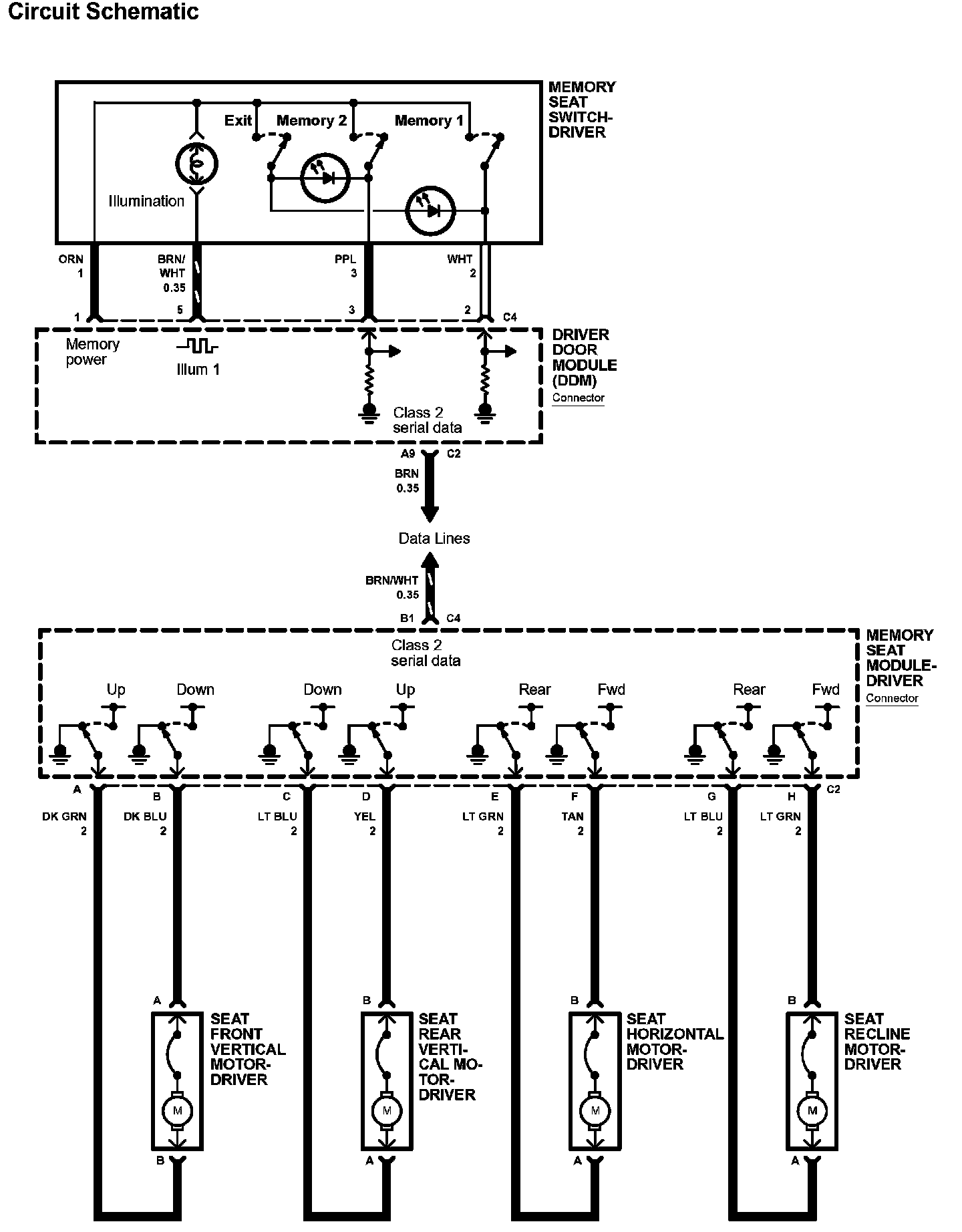

Diagram 141-0 (Driver):

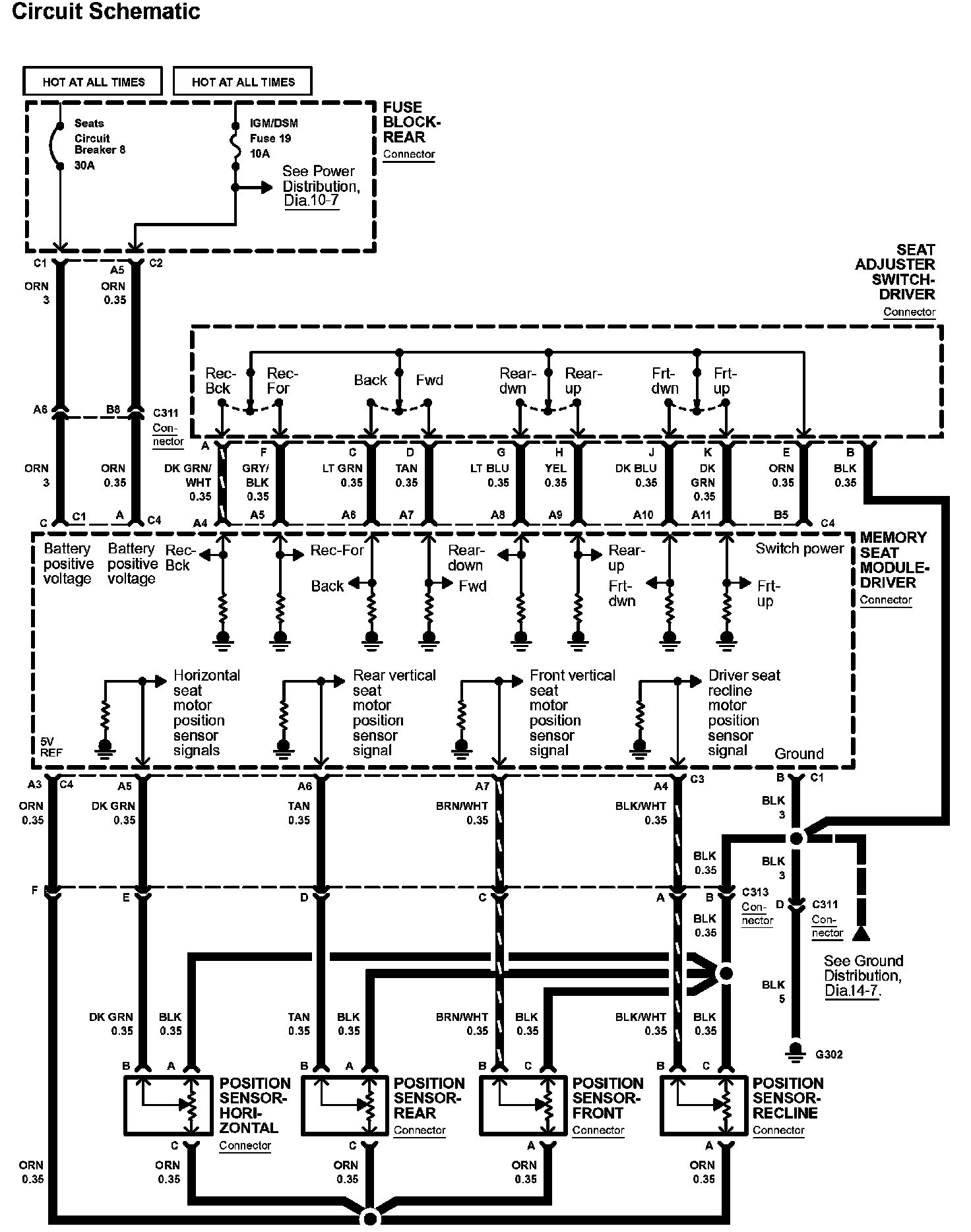

Diagram 141-1 (Driver):
Diagram 141-2 (Lumbar Supports):

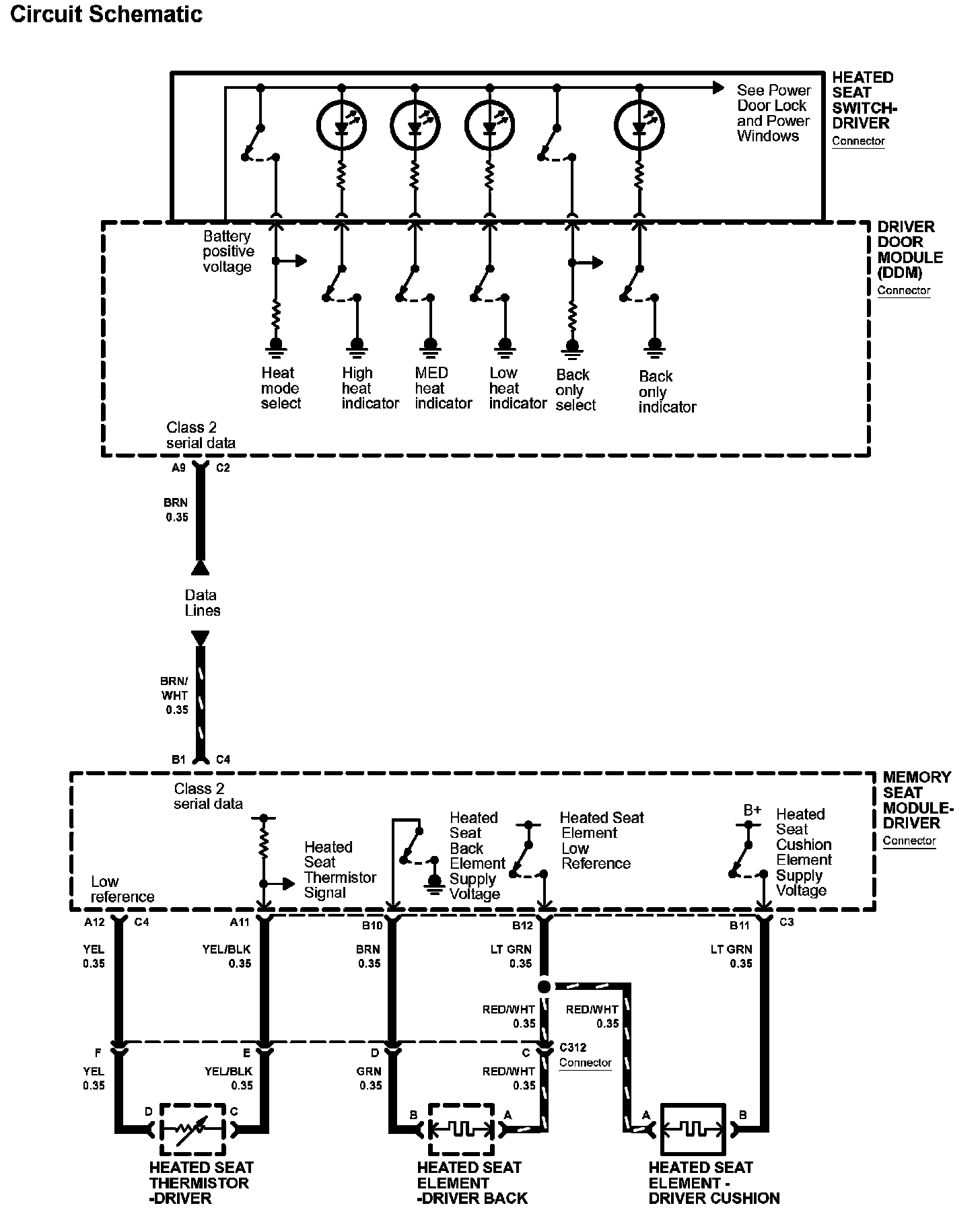

Diagram 141-3 (Heated Seats):

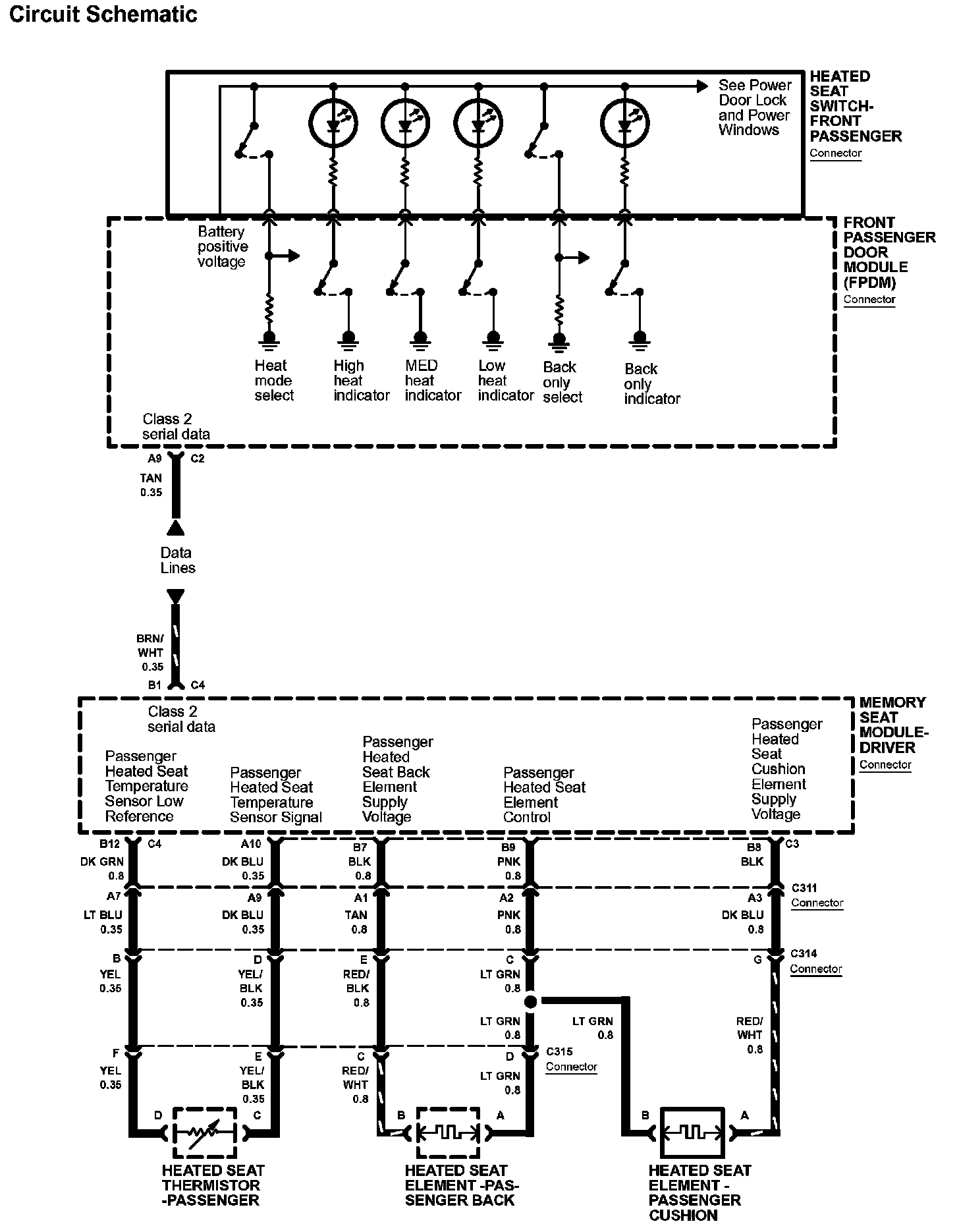

Diagram 141-4 (Heated Seats):
Diagrams: Other diagrams referred to by number within these diagrams can be found at Diagrams by Number. Diagrams By Number
Connector Views: Connector terminal views for the connectors shown within these diagrams can be found at Connector Views by Connector Number. Connector Views By Connector Number
