2003 Isuzu Rodeo 2WD V6-3.2LFACTORY OEM SERVICE PROCEDURE
Vehicle Speed Sensor: Service and Repair

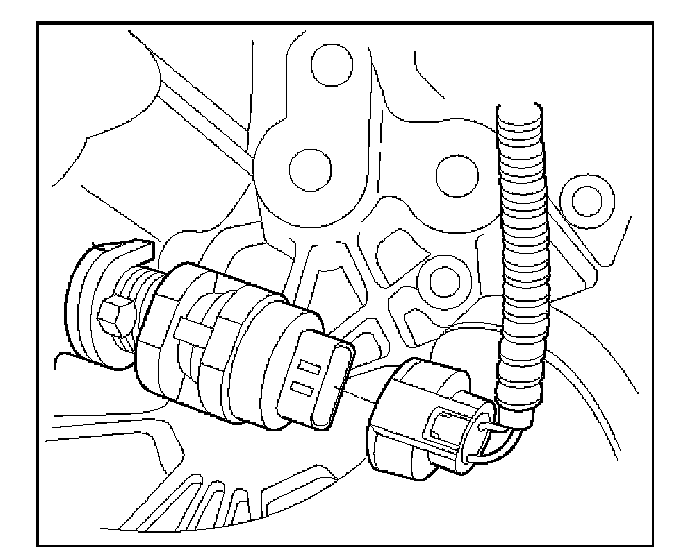

REMOVAL PROCEDURE
CAUTION: The VSS is located on the right side of the transfer case just ahead of the rear propeller shaft and very close to the exhaust pipes for 4WD and on the extension cover for 2WD. Be sure that the exhaust pipes are cool enough to touch before trying to remove the VSS. If the pipes are hot, you could be burned.
1. Disconnect the negative battery cable.
2. Disconnect the VSS electrical connector.
3. Remove the bolt and the clamp securing the VSS in place.
IMPORTANT: Have a container ready to catch any fluid that leaks out when the VSS is removed from the transfer case for 4WD and on the extension cover for 2WD.
4. Remove the VSS from the transfer case by wiggling it slightly and pulling it straight out.
INSTALLATION PROCEDURE
1. Install the VSS in the transfer case with the notch for the connector facing the rear.
2. Secure the VSS in place with the clamp and the bolt.
Tighten
Tighten the bolt to 16 N.m (12 lb ft.).
3. Connect the VSS electrical connector.
4. Check the transfer case oil level. Add fluid if necessary.
5. Connect the negative battery cable.
CAUTION: The VSS is located on the right side of the transfer case just ahead of the rear propeller shaft and very close to the exhaust pipes for 4WD and on the extension cover for 2WD. Be sure that the exhaust pipes are cool enough to touch before trying to remove the VSS. If the pipes are hot, you could be burned.
1. Disconnect the negative battery cable.
2. Disconnect the VSS electrical connector.
3. Remove the bolt and the clamp securing the VSS in place.
IMPORTANT: Have a container ready to catch any fluid that leaks out when the VSS is removed from the transfer case for 4WD and on the extension cover for 2WD.
4. Remove the VSS from the transfer case by wiggling it slightly and pulling it straight out.
INSTALLATION PROCEDURE
1. Install the VSS in the transfer case with the notch for the connector facing the rear.
2. Secure the VSS in place with the clamp and the bolt.
Tighten
Tighten the bolt to 16 N.m (12 lb ft.).
3. Connect the VSS electrical connector.
4. Check the transfer case oil level. Add fluid if necessary.
5. Connect the negative battery cable.
