2003 Isuzu Rodeo 2WD L4-2.2LFACTORY OEM SERVICE PROCEDURE
Keys - Code Cutter Applications
TSB SBO3-14-S001
Curtis Key Code Cutter and Application Listing
(Supersedes SB00-14-S002)
ISSUE DATE: APRIL 2003
Affected Vehicles
All Isuzu Vehicles.
Service Information

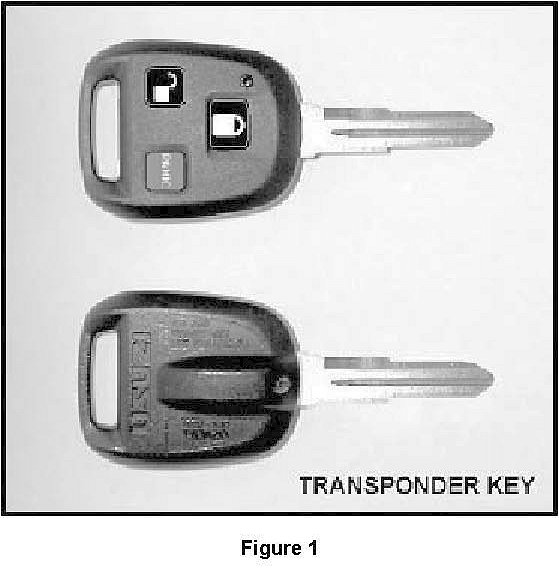

Beginning with the 2003 Model Year, Isuzu introduced the Isuzu Immobilizer System in the Rodeo, Rodeo Sport and Axiom with 3.2L/3.5L engines. An integral component of the Immobilizer System is the Transponder Key (see figure 1).
Due to the configuration of the Transponder Key, cutting a key blank using the Curtis No.15 Code Cutter is not possible. However, the Transponder Key can be cut using a Curtis No. 15 XL Code Cutter or the Curtis PC+ HD Computerized Code Cutter.

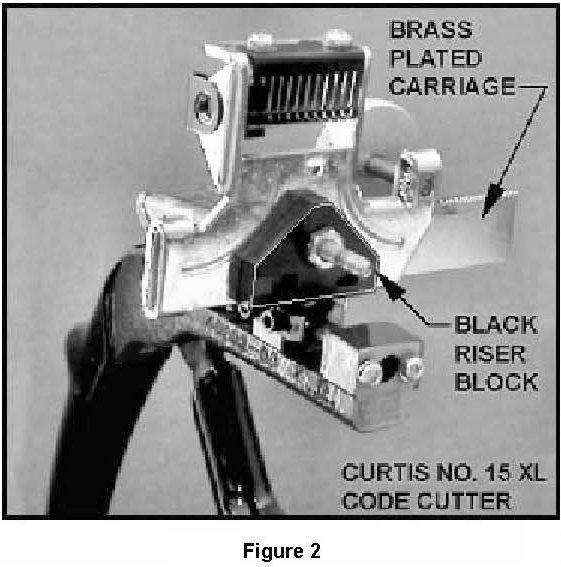

The Curtis No. 15 XL Code Cutter is identified by a brass plated carriage and black riser block (see figure 2).
NOTE:
Vehicles with the Immobilizer must have ALL Transponder Keys reprogrammed to a vehicle when a new key is programmed.
Refer to the Immobilizer System section of the Service Manual
For questions regarding Code Cutters, codes, keys, and applications, please contact:
Curtis Industries
(800) 555-2878
Curtis No. 15 XL Code Cutter Application Information
NOTE:
Key blanks for 2002 model year and earlier can continue to be cut using the new Curtis No. 15 Code Cutter.

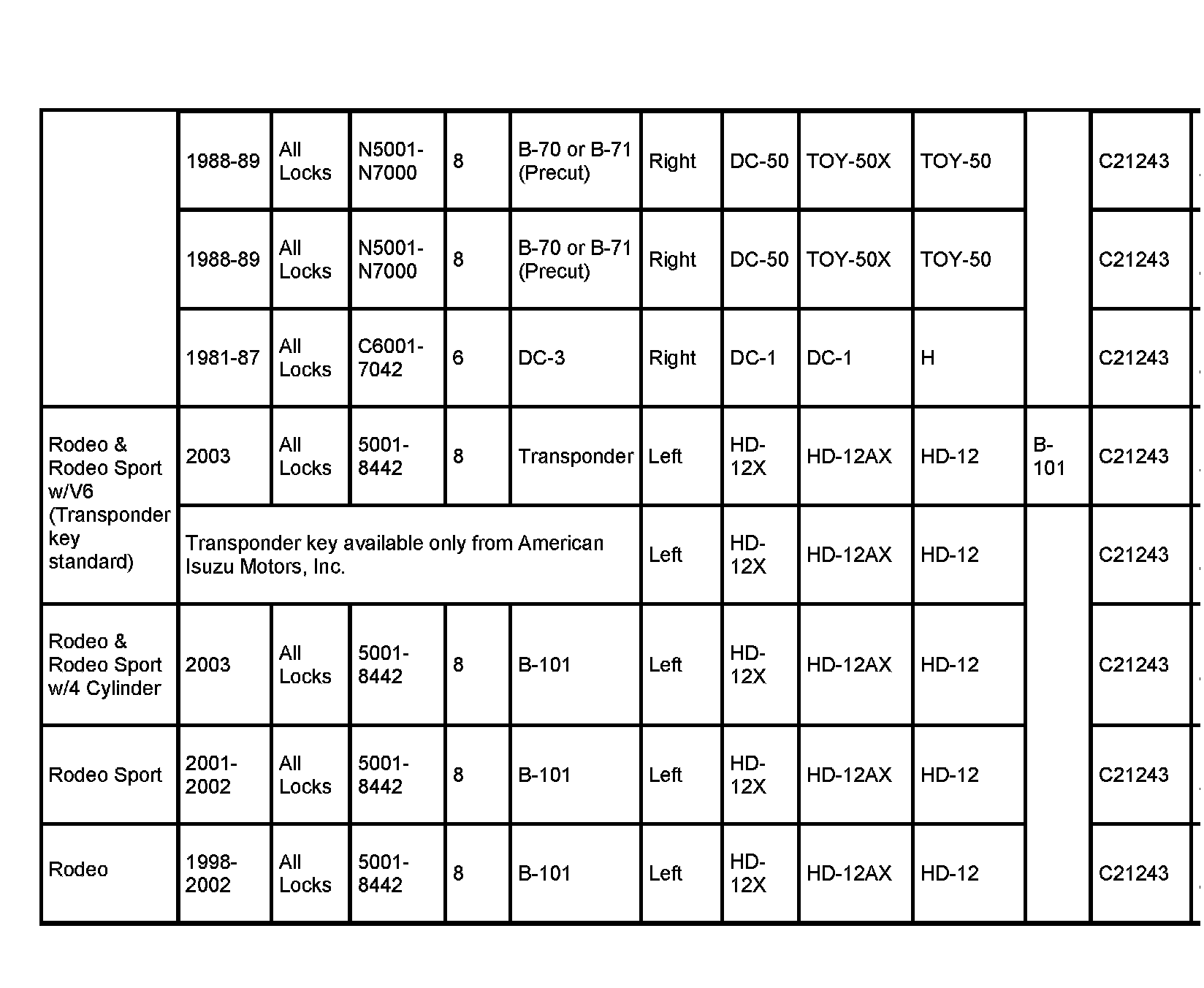

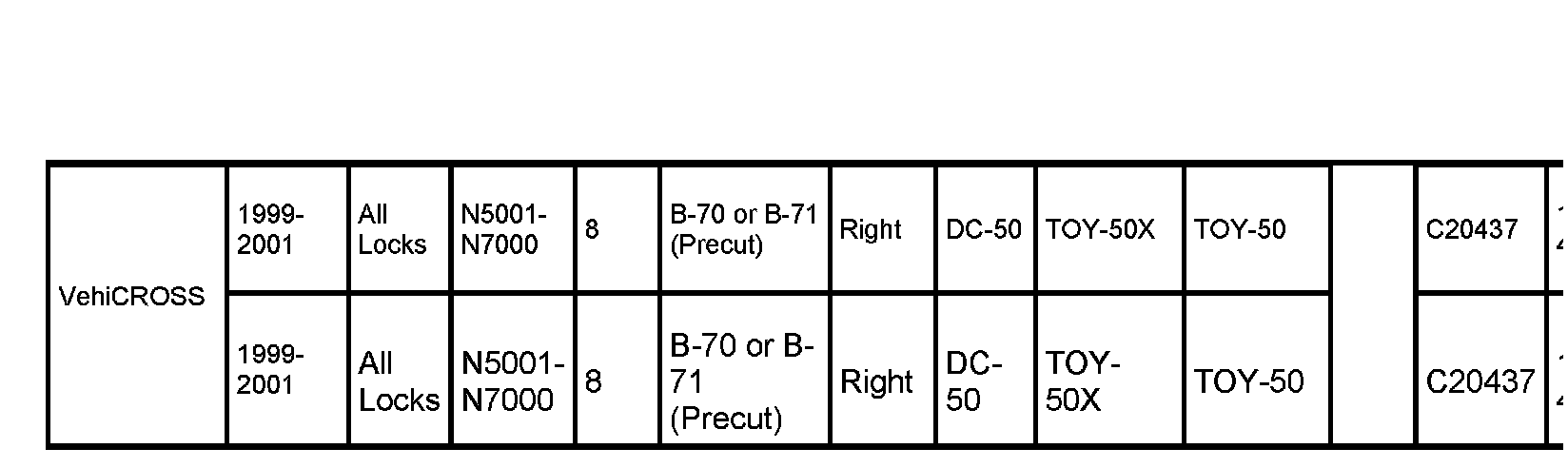

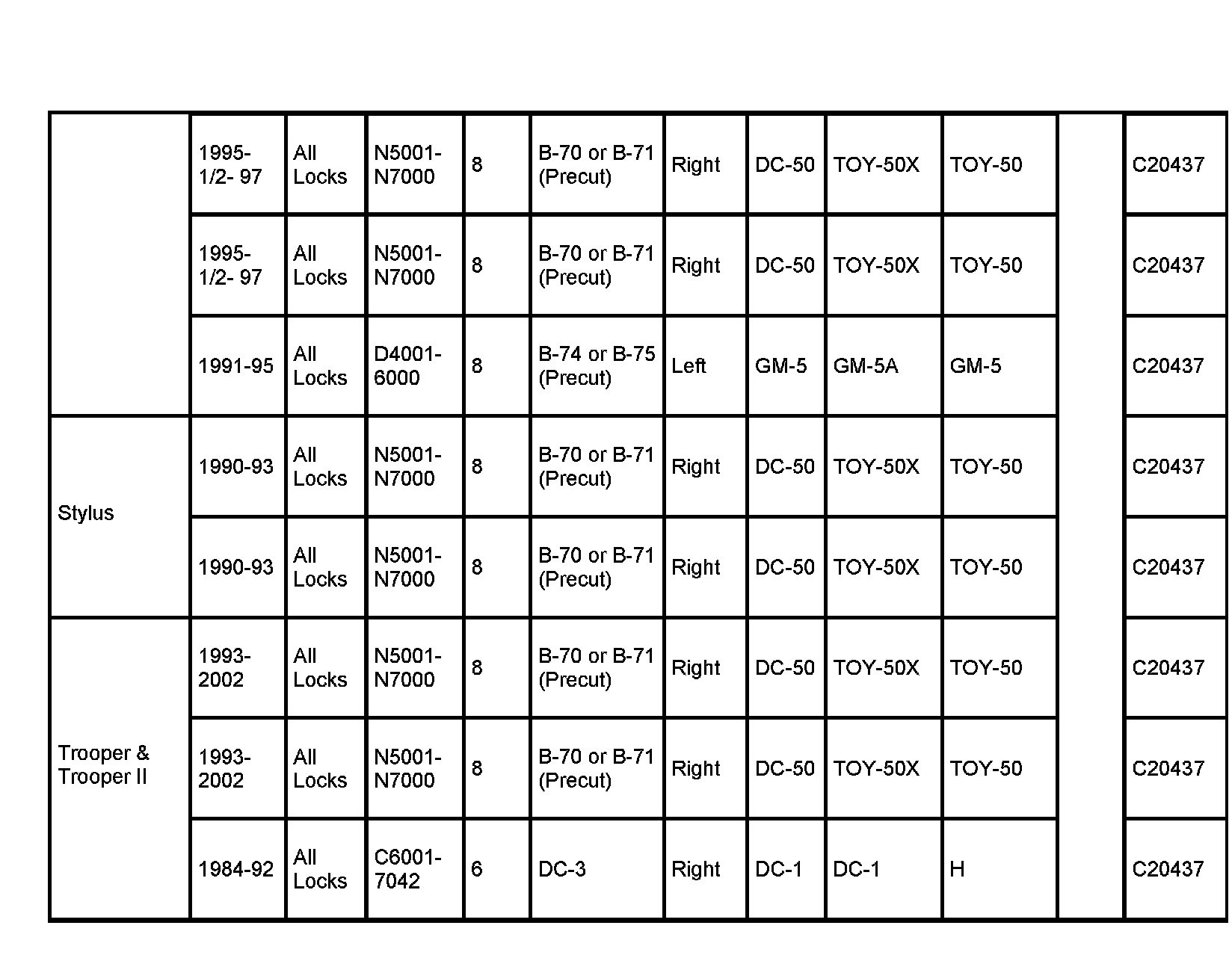

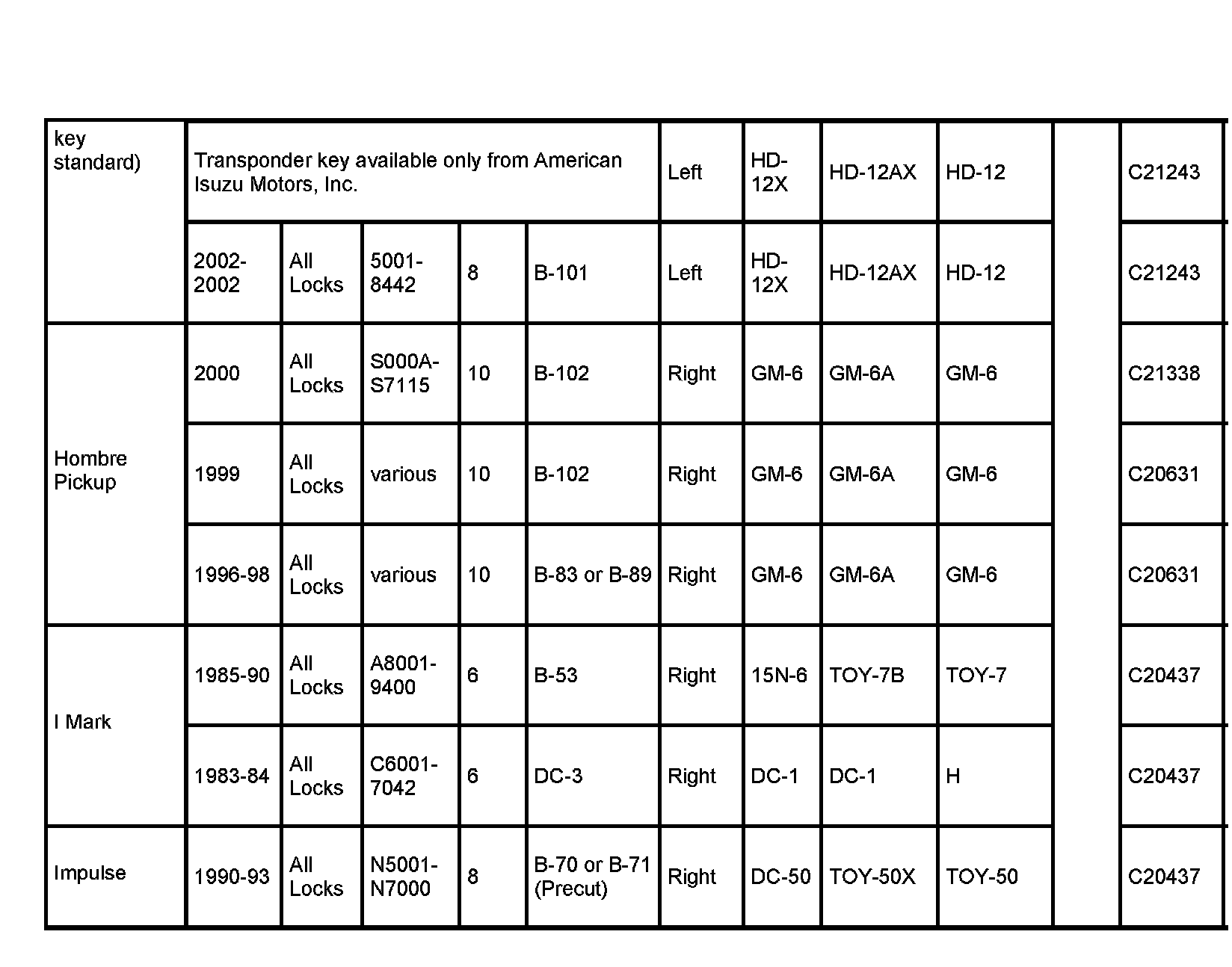

# 15 XL Code Cutter Application Listing

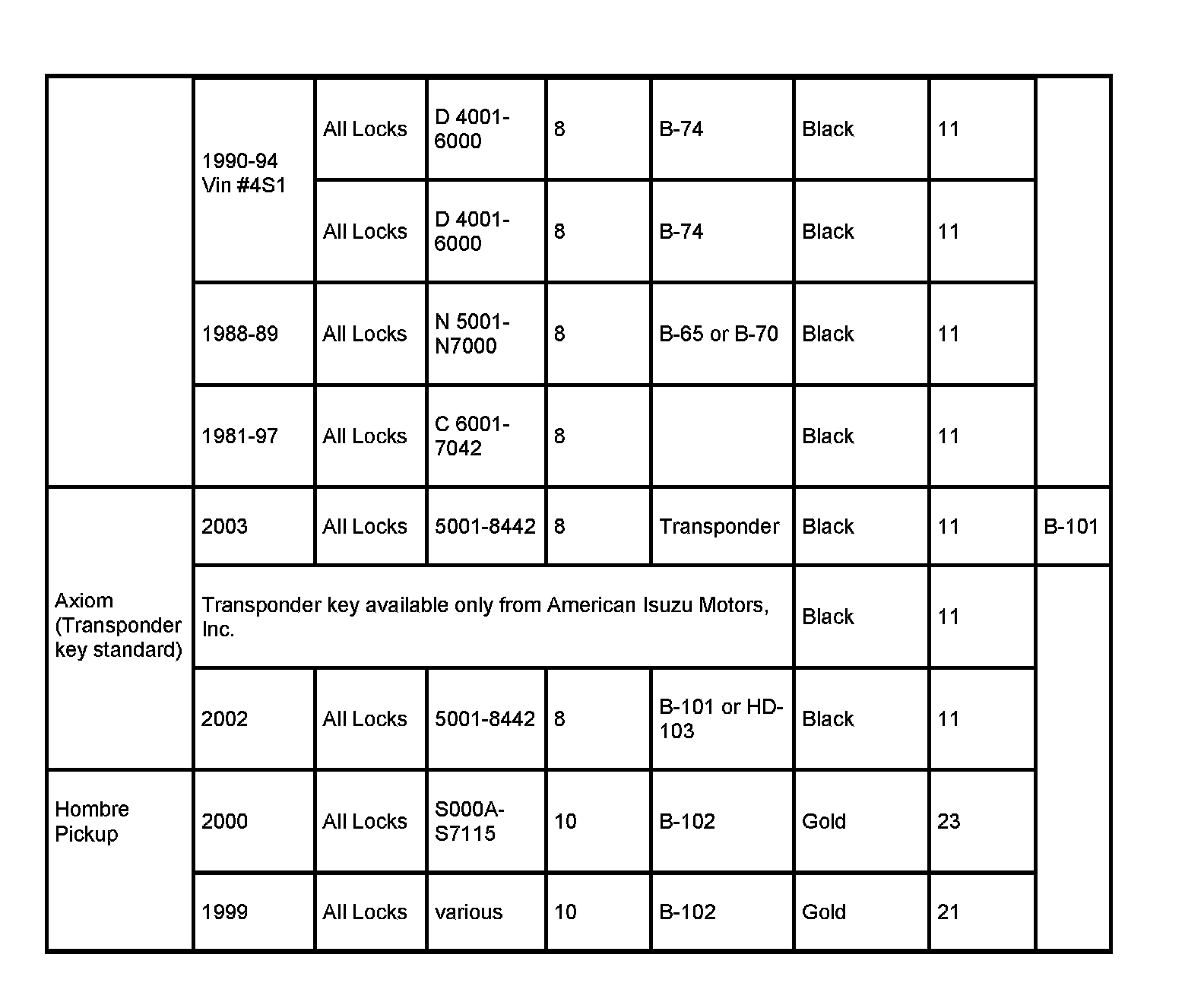

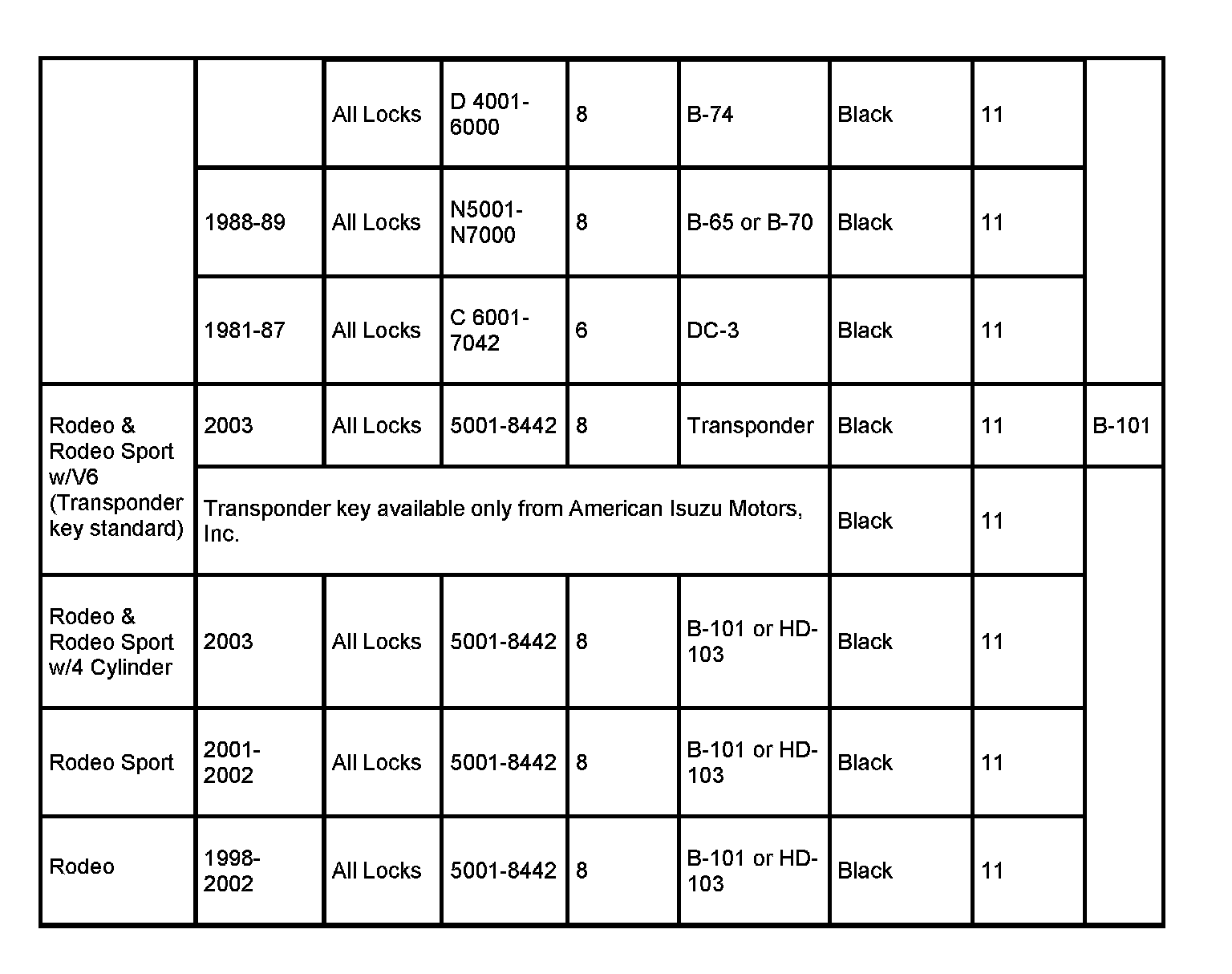

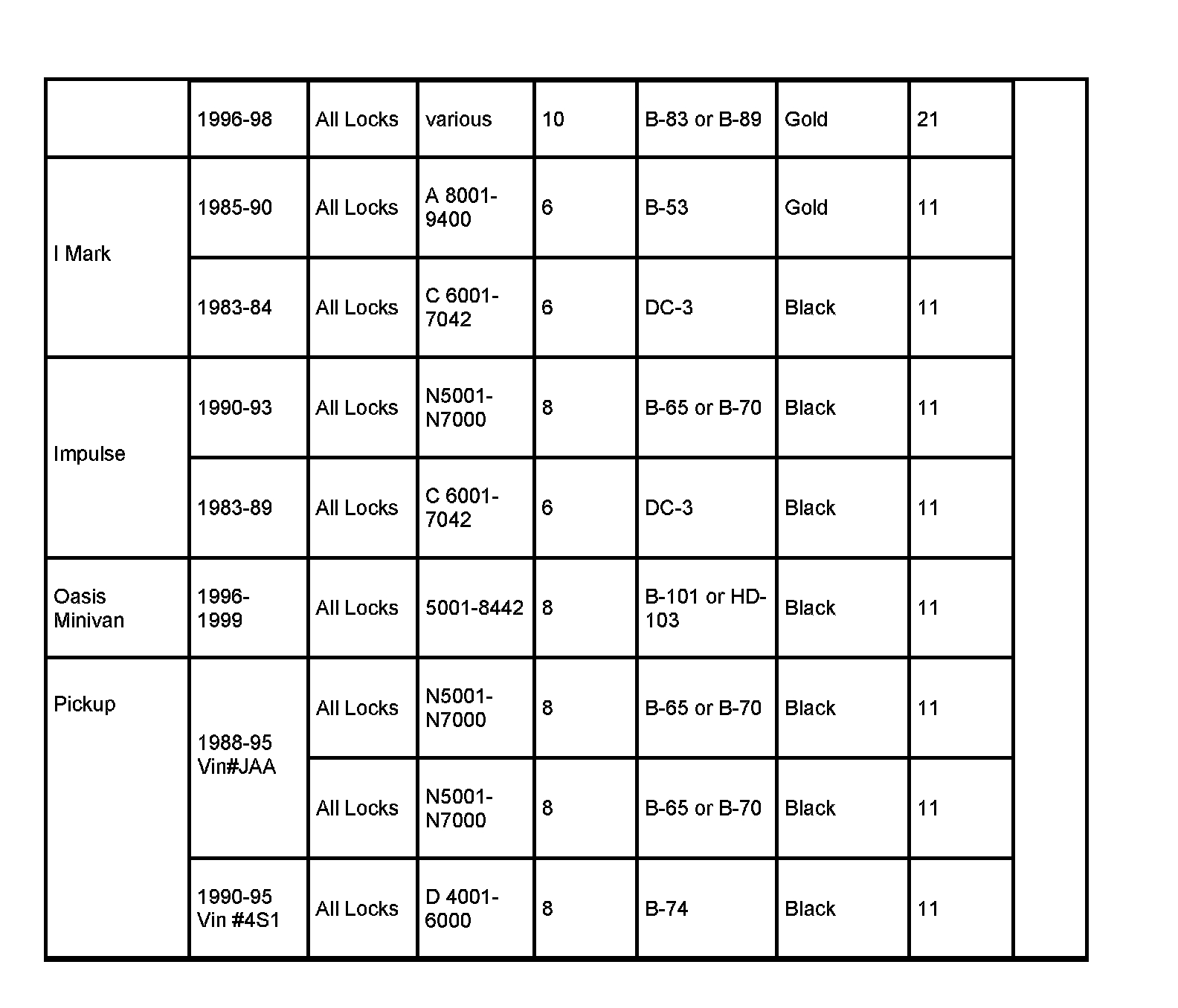

PC+ & PC+ HD Application Guide
Disclaimer
Curtis Key Code Cutter and Application Listing
(Supersedes SB00-14-S002)
ISSUE DATE: APRIL 2003
Affected Vehicles
All Isuzu Vehicles.
Service Information
Beginning with the 2003 Model Year, Isuzu introduced the Isuzu Immobilizer System in the Rodeo, Rodeo Sport and Axiom with 3.2L/3.5L engines. An integral component of the Immobilizer System is the Transponder Key (see figure 1).
Due to the configuration of the Transponder Key, cutting a key blank using the Curtis No.15 Code Cutter is not possible. However, the Transponder Key can be cut using a Curtis No. 15 XL Code Cutter or the Curtis PC+ HD Computerized Code Cutter.
The Curtis No. 15 XL Code Cutter is identified by a brass plated carriage and black riser block (see figure 2).
NOTE:
Vehicles with the Immobilizer must have ALL Transponder Keys reprogrammed to a vehicle when a new key is programmed.
Refer to the Immobilizer System section of the Service Manual
For questions regarding Code Cutters, codes, keys, and applications, please contact:
Curtis Industries
(800) 555-2878
Curtis No. 15 XL Code Cutter Application Information
NOTE:
Key blanks for 2002 model year and earlier can continue to be cut using the new Curtis No. 15 Code Cutter.
�J�:
�o�:
g��:
ɼ�:
��:
��:
� �:
# 15 XL Code Cutter Application Listing
PC+ & PC+ HD Application Guide
Disclaimer
