2003 Isuzu Rodeo 2WD L4-2.2LFACTORY OEM SERVICE PROCEDURE
Emission Control Systems: Testing and Inspection

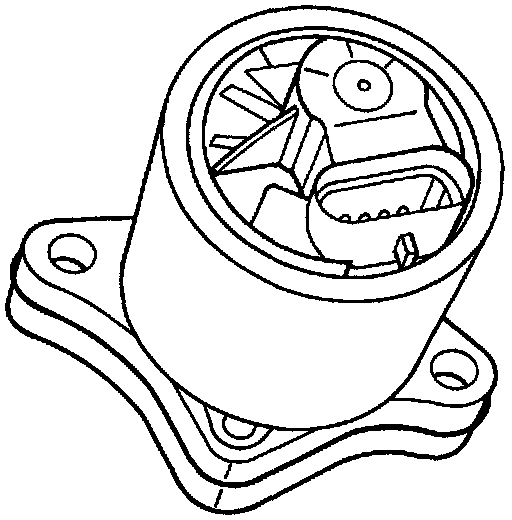

The linear EGR valve is designed to accurately supply EGR to the engine independent of intake manifold vacuum. The valve controls EGR flow from the exhaust to the intake manifold through an orifice with a PCM-controlled pintle. During operation, the PCM controls pintle position by monitoring the pintle position feedback signal. The feedback signal can be monitored with a Tech 2 as "Actual EGR Pos." "Actual EGR Pos." should always be near the commanded EGR position ("Desired EGR Pos."). The PCM also tests for EGR flow. If incorrect flow is detected, DTC P0401 will set. If DTC P0401 is set, refer to PCM Diagnosis charts.
The linear EGR valve is usually activated under the following conditions:
- Warm engine operation.
- Above-idle speed.
Too much EGR flow at idle, cruise or cold operation may cause any of the following conditions to occur:
- Engine stalls after a cold start.
- Engine stalls at idle after deceleration.
- Vehicle surges during cruise.
- Rough idle.
- DTC P0300 (misfire detected).
Too little or no EGR flow may allow combustion temperatures to get too high. This could cause:
- Spark knock (detonation).
- Engine overheating.
- Emission test failure.
- DTC P0401 (EGR Flow Insufficient detected).
- Poor fuel economy.
The linear EGR valve is usually activated under the following conditions:
- Warm engine operation.
- Above-idle speed.
Too much EGR flow at idle, cruise or cold operation may cause any of the following conditions to occur:
- Engine stalls after a cold start.
- Engine stalls at idle after deceleration.
- Vehicle surges during cruise.
- Rough idle.
- DTC P0300 (misfire detected).
Too little or no EGR flow may allow combustion temperatures to get too high. This could cause:
- Spark knock (detonation).
- Engine overheating.
- Emission test failure.
- DTC P0401 (EGR Flow Insufficient detected).
- Poor fuel economy.
