2003 Isuzu Rodeo 2WD L4-2.2LFACTORY OEM SERVICE PROCEDURE
Vehicle Speed Sensor: Service and Repair
REMOVAL PROCEDURE
1. Disconnect the negative battery cable.

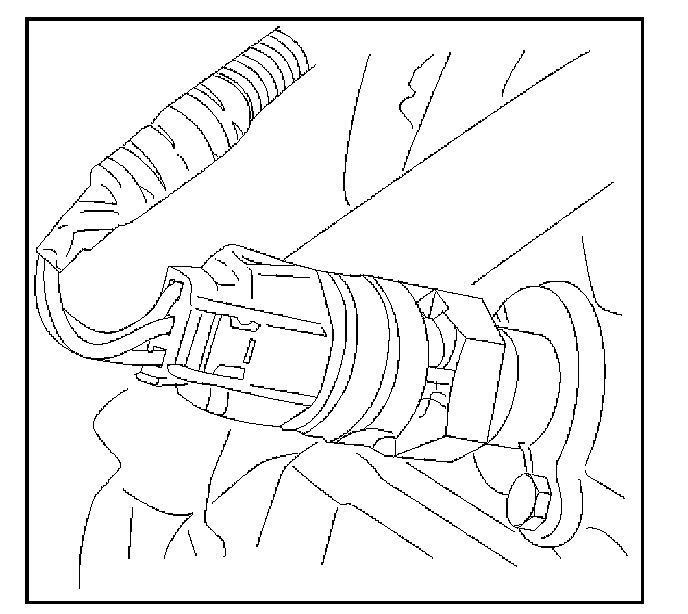

2. VSS is located on the right side of the transmission case just ahead of the rear propeller shaft. Disconnect the VSS electrical connector.

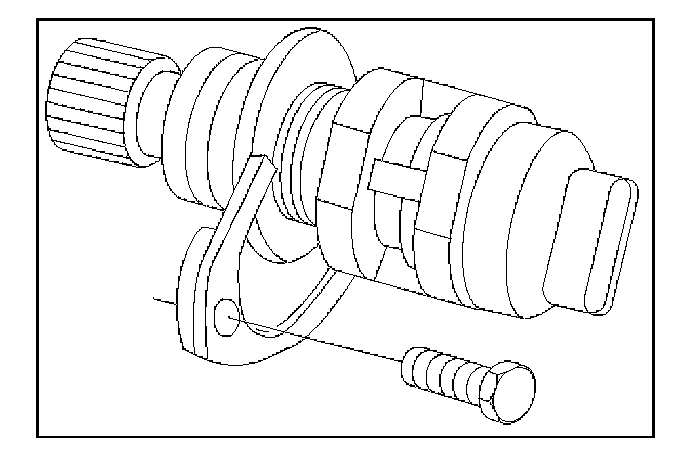

3. Remove the bolt and the VSS from the transmission case by wiggling it slightly and pulling it straight out.
IMPORTANT: Have a container ready to catch any fluid that leaks out when the VSS is removed from the transfer case.
INSTALLATION PROCEDURE
1. Install the VSS in the transmission case with the notch for the connector facing the rear.
2. Secure the VSS with mounting bolt. Tighten the bolt to 16 N.m (12 lb ft).
3. Connect electrical connector to the VSS.
4. Check the transmission oil level. Add oil if necessary.
5. Connect the negative battery cable.
1. Disconnect the negative battery cable.
2. VSS is located on the right side of the transmission case just ahead of the rear propeller shaft. Disconnect the VSS electrical connector.
3. Remove the bolt and the VSS from the transmission case by wiggling it slightly and pulling it straight out.
IMPORTANT: Have a container ready to catch any fluid that leaks out when the VSS is removed from the transfer case.
INSTALLATION PROCEDURE
1. Install the VSS in the transmission case with the notch for the connector facing the rear.
2. Secure the VSS with mounting bolt. Tighten the bolt to 16 N.m (12 lb ft).
3. Connect electrical connector to the VSS.
4. Check the transmission oil level. Add oil if necessary.
5. Connect the negative battery cable.
