2003 Isuzu Rodeo 2WD L4-2.2LFACTORY OEM SERVICE PROCEDURE
Knock Sensor: Service and Repair
REMOVAL PROCEDURE
1. Disconnect negative battery cable.

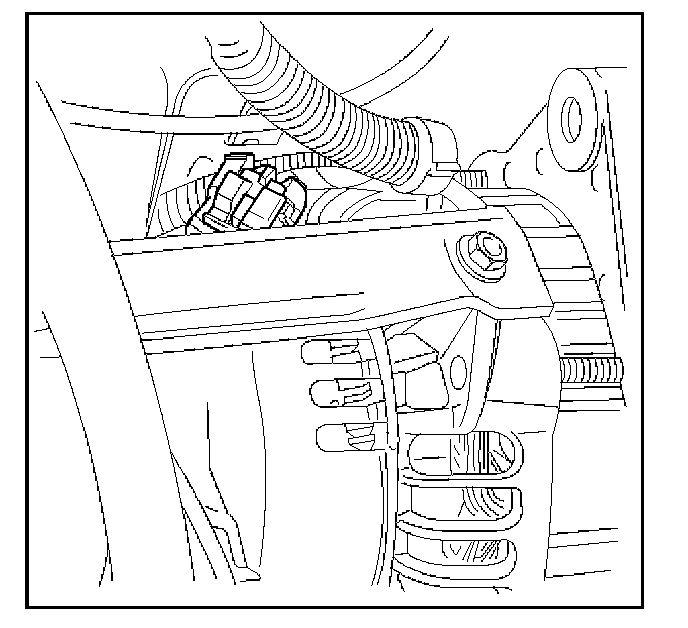

2. Disconnect pig tail electrical connector at near the top of generator.

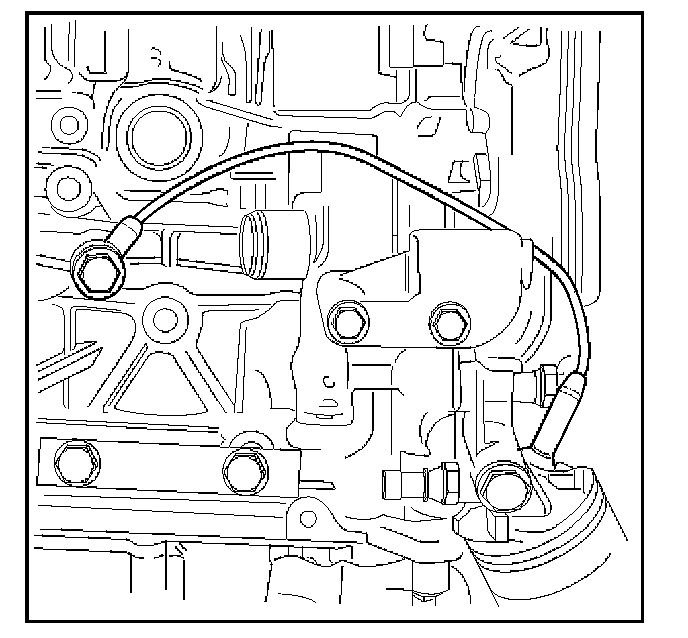

3. Unscrew retaining bolt from Knock Sensor located passenger side of engine block just front of starter.

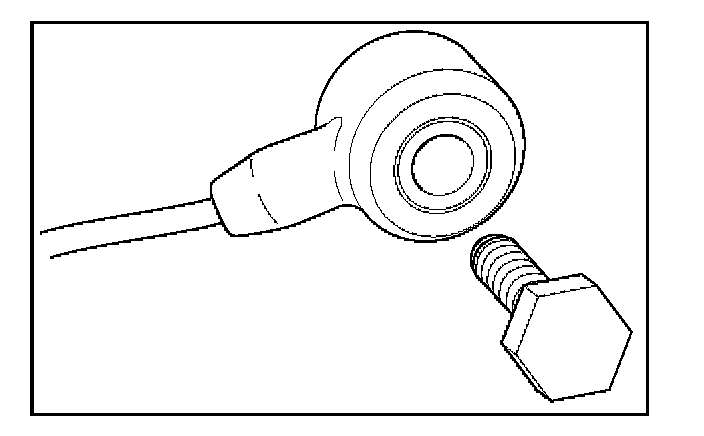

4. Remove Knock Sensor with retaining bolt.
INSTALLATION PROCEDURE
1. Install Knock Sensor with retaining bolt.
2. Connect pig tail electrical connector.
3. Connect battery negative cable.
1. Disconnect negative battery cable.
2. Disconnect pig tail electrical connector at near the top of generator.
3. Unscrew retaining bolt from Knock Sensor located passenger side of engine block just front of starter.
4. Remove Knock Sensor with retaining bolt.
INSTALLATION PROCEDURE
1. Install Knock Sensor with retaining bolt.
2. Connect pig tail electrical connector.
3. Connect battery negative cable.
