2003 Isuzu Rodeo 2WD L4-2.2LFACTORY OEM SERVICE PROCEDURE
Wire Color Coding
Wire Color:
Wiring
Wire Color
All wires have color-coded insulation.
Wires belonging to a system's main harness will have a single color. Wires belonging to a system's sub-circuits will have a colored stripe. Striped wires use the following code to show wire size and colors.

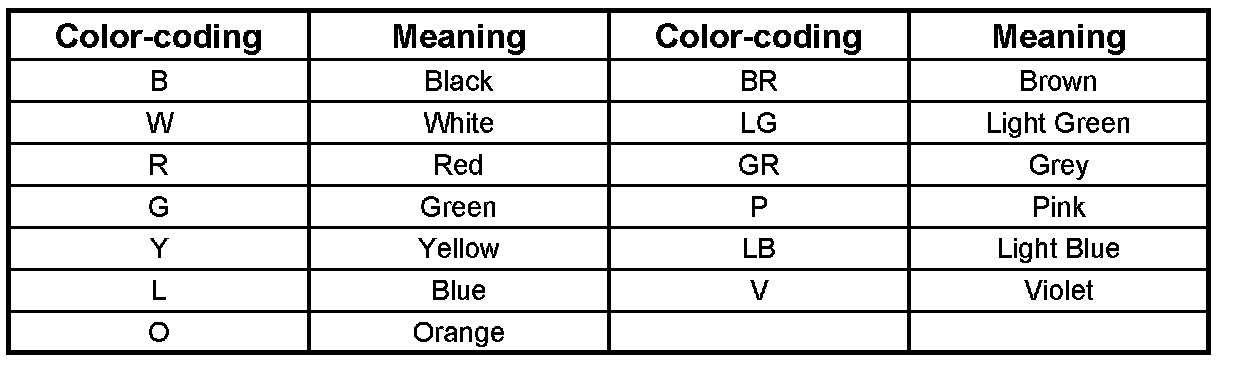

Abbreviations are used to indicate wire color within a circuit diagram. Refer to the following table.
Wiring Color Coding:
Wire Color Coding
Description Of Circuit By Wire Base Color:
Description of Circuit by Wire Base Color
System Schematic
