2003 Isuzu Rodeo 2WD L4-2.2LFACTORY OEM SERVICE PROCEDURE
Automatic Transmission/Transaxle

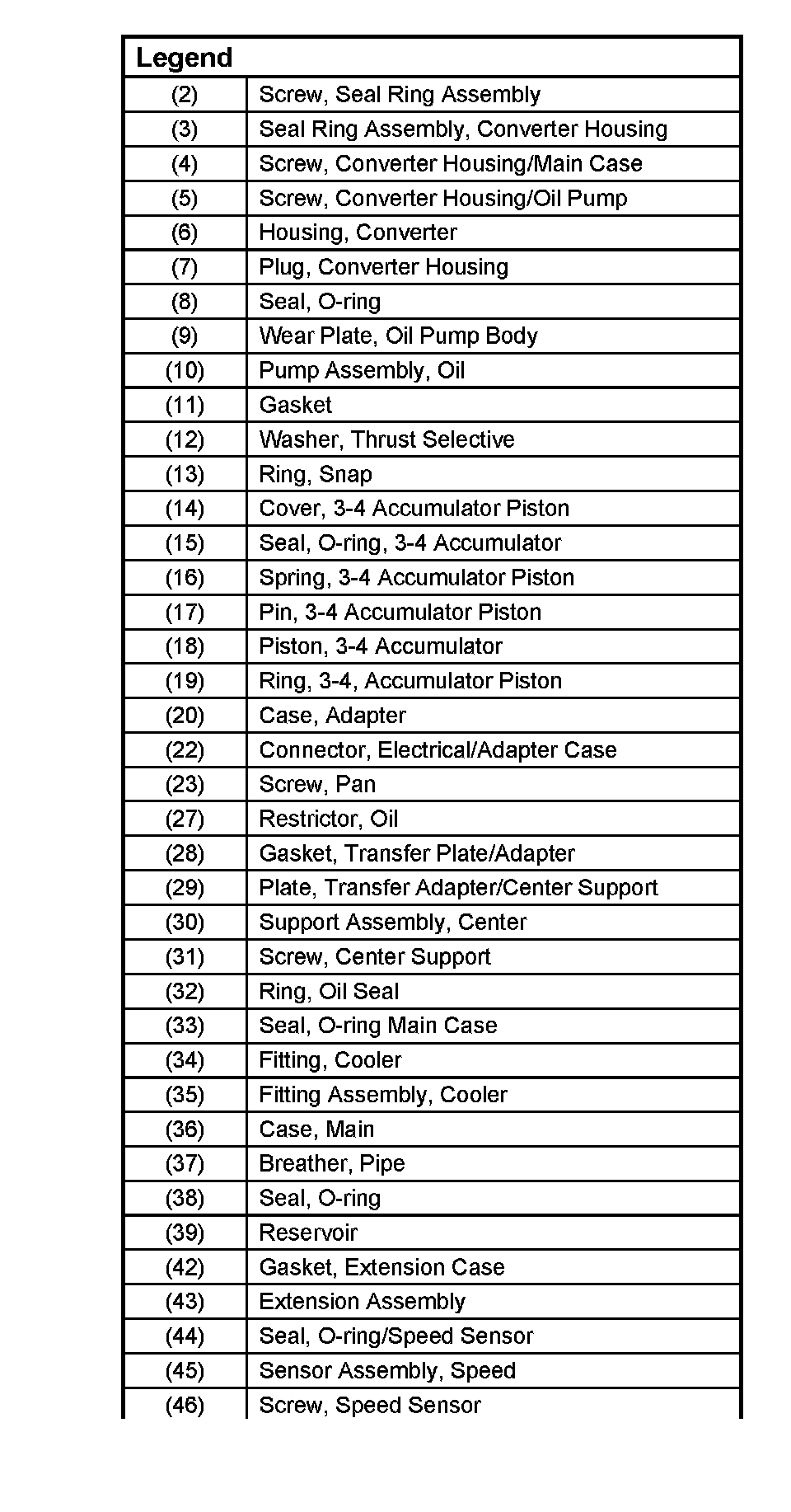

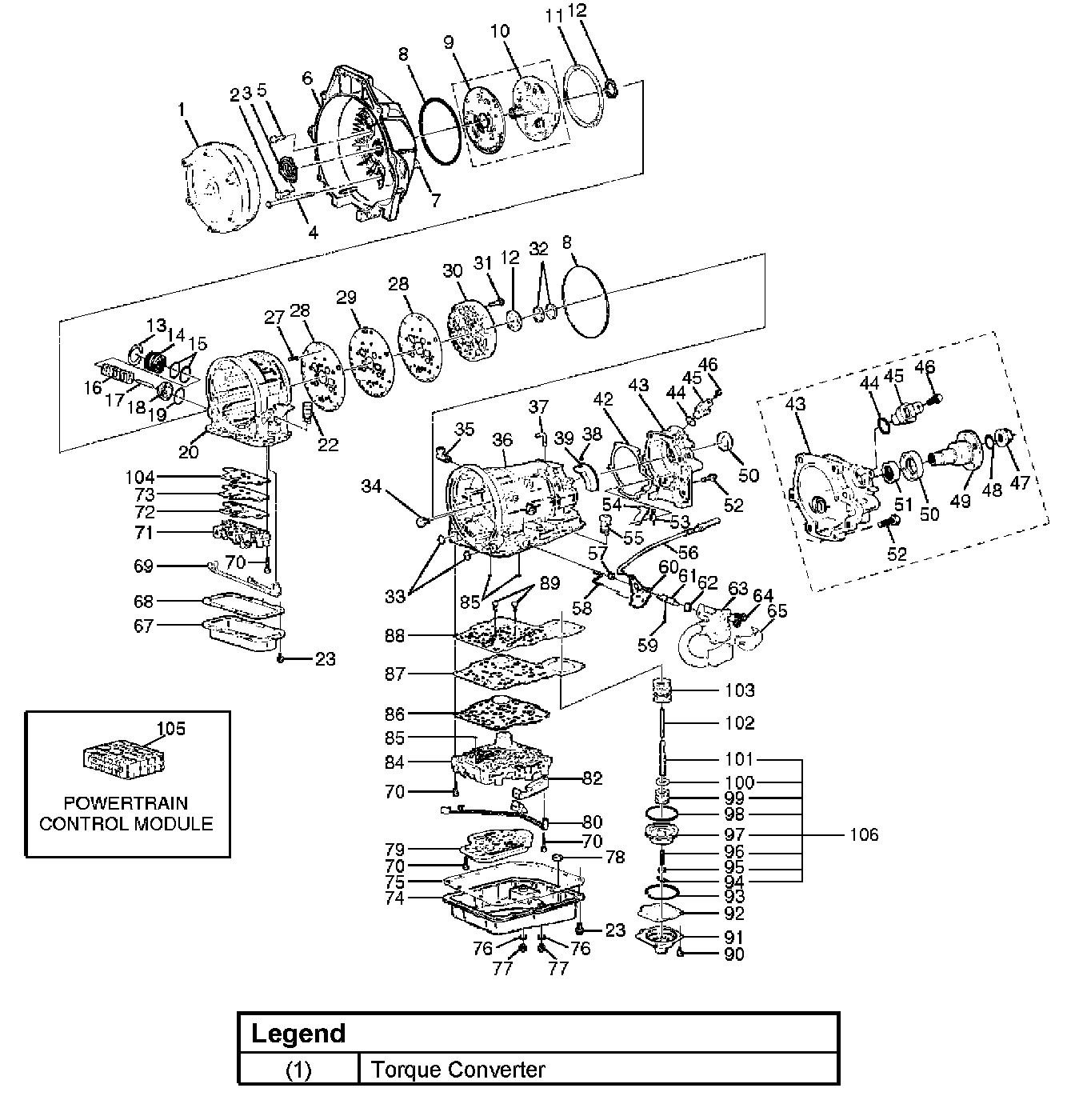

Case and Associated Parts
1 of 4
2 of 4
3 of 4
4 of 4

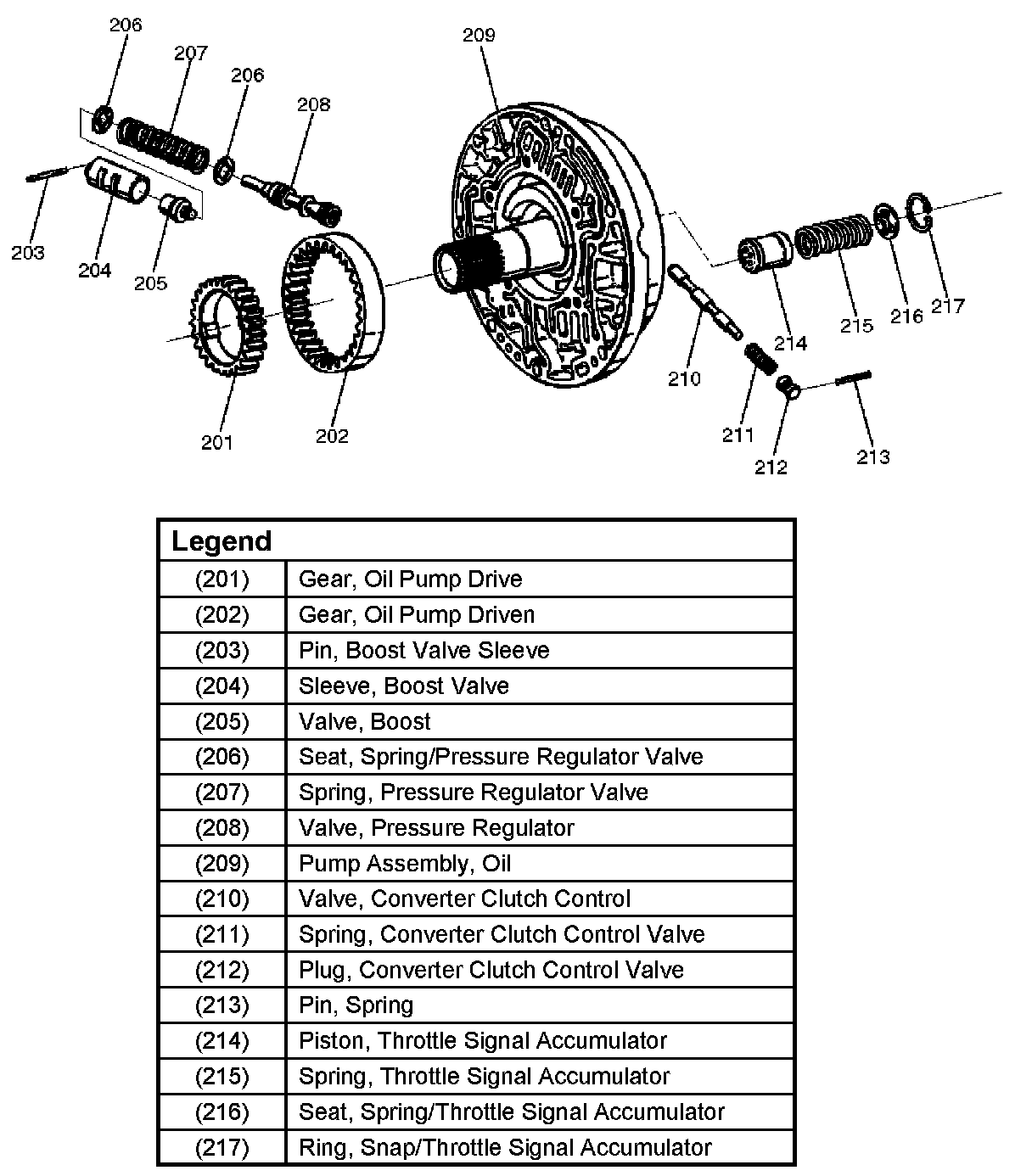

Pump Assembly

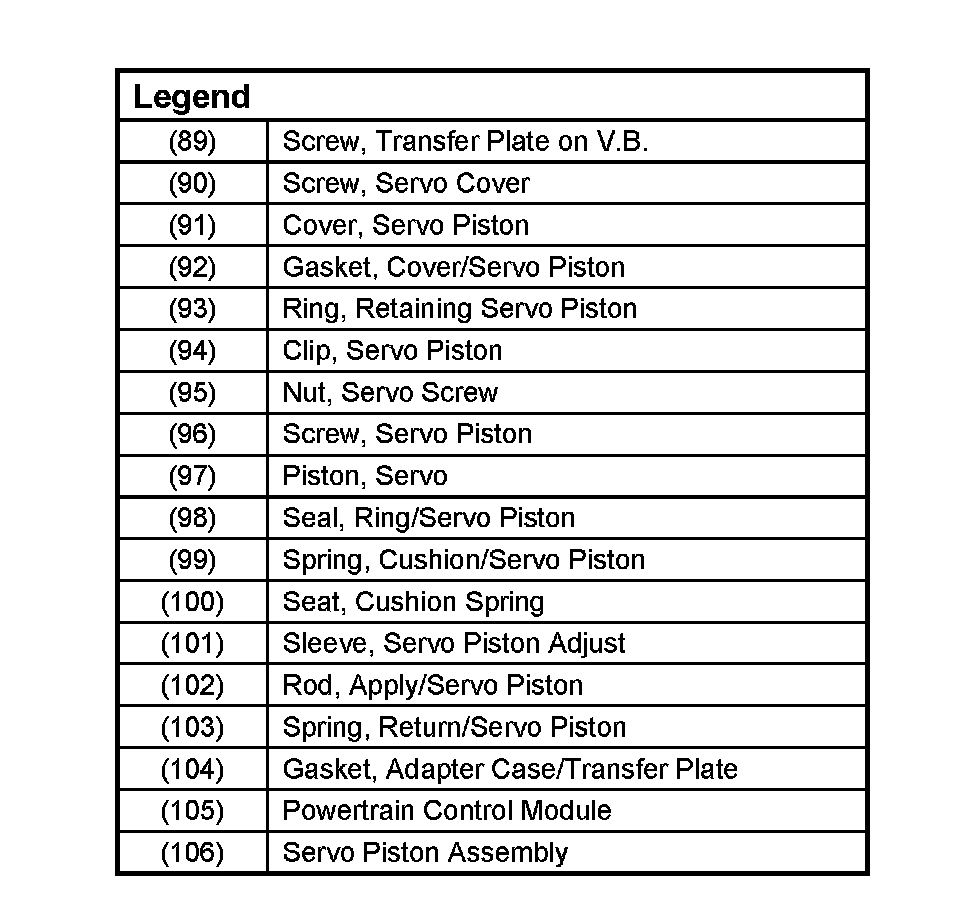

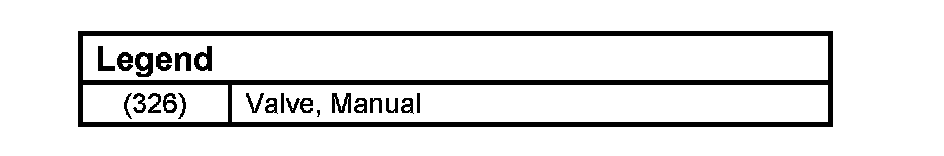

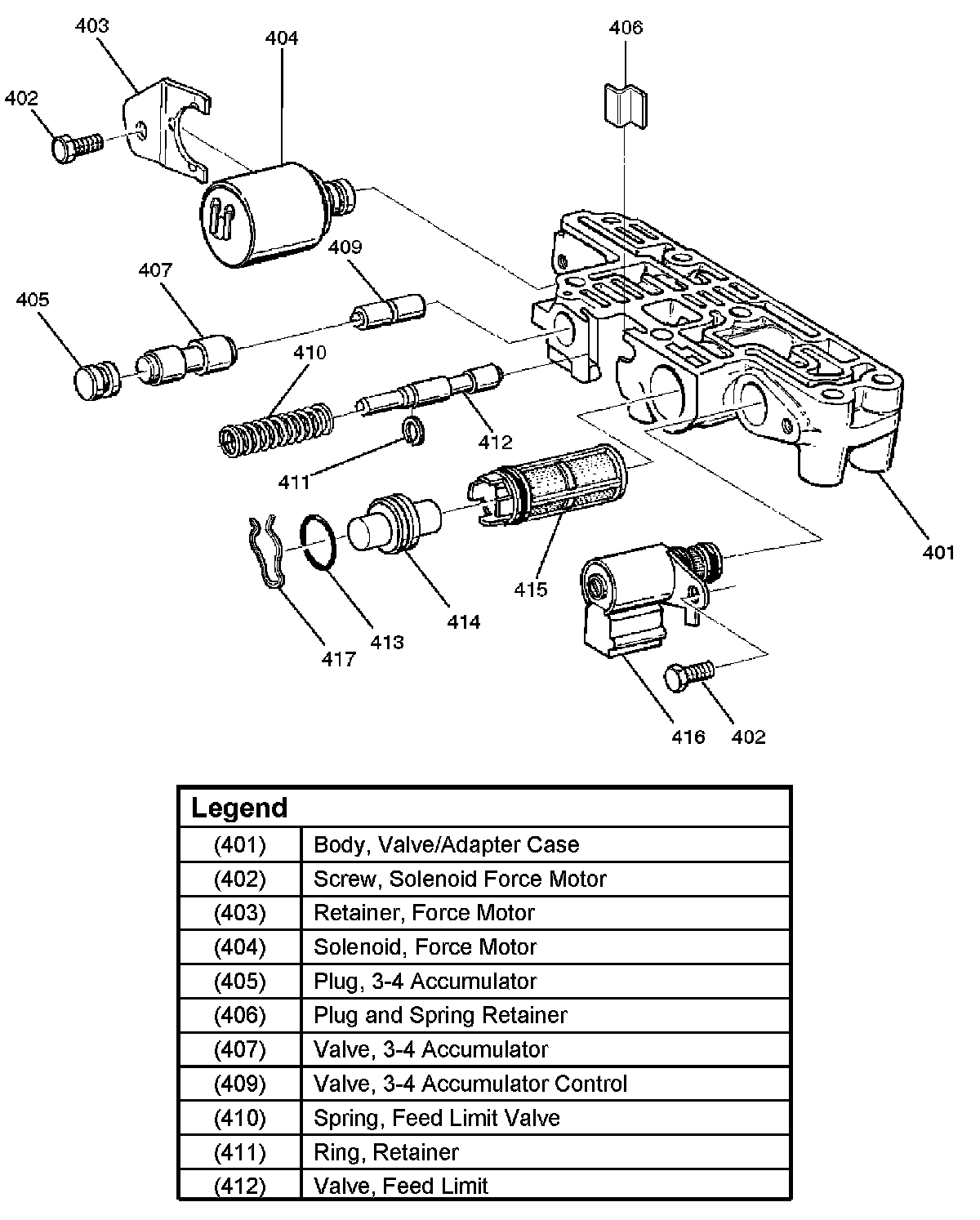

Valve Body Assemblies
1 of 4
2 of 4
3 of 4
4 of 4
Overdrive Internal Components
1 of 2
2 of 2

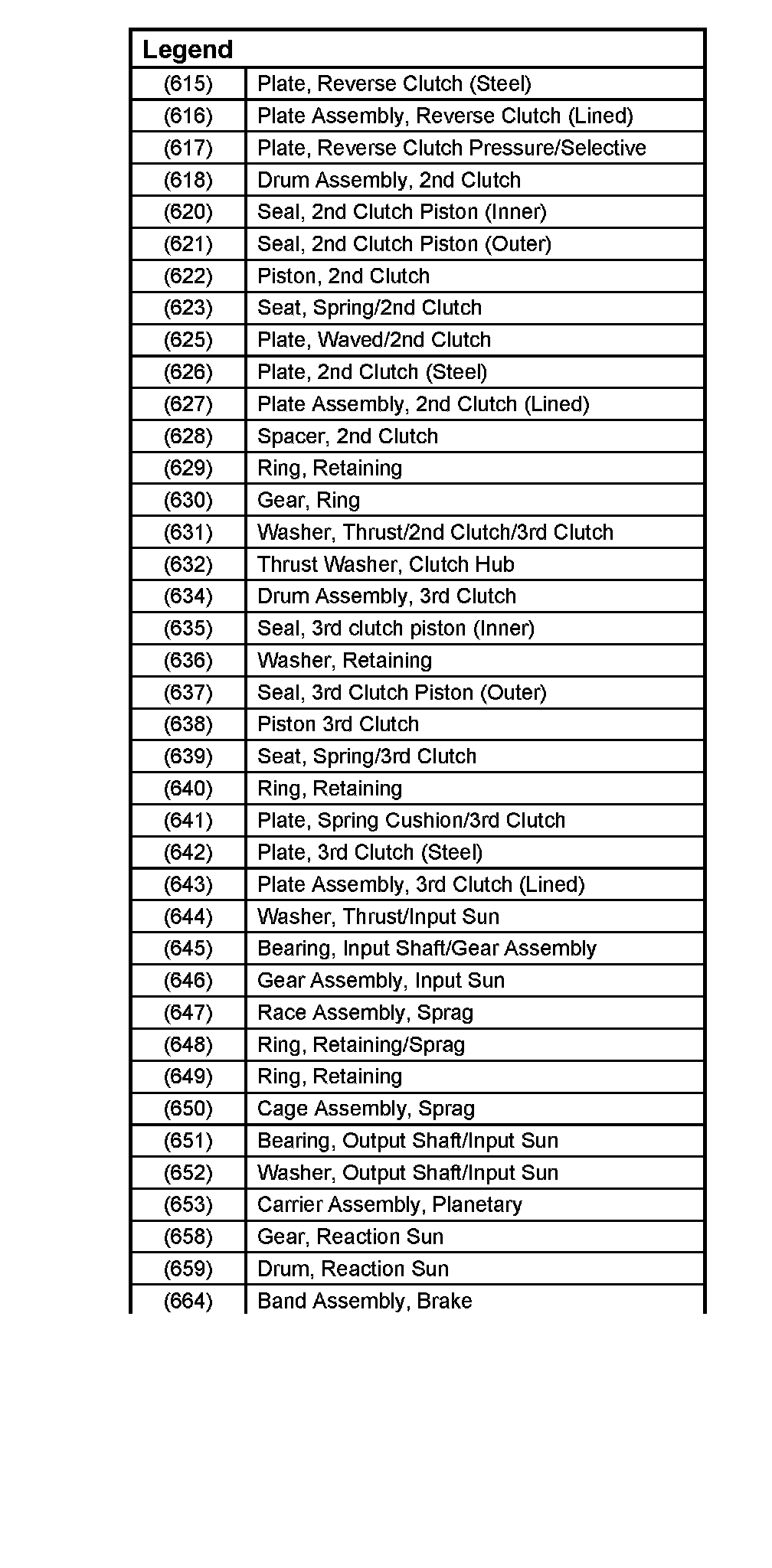

Internal Components
1 of 4
2 of 4
3 of 4
Center Support Assembly
1 of 4
2 of 4
3 of 4
4 of 4
Pump Assembly
Valve Body Assemblies
1 of 4
2 of 4
3 of 4
4 of 4
Overdrive Internal Components
1 of 2
2 of 2
Internal Components
1 of 4
2 of 4
3 of 4
Center Support Assembly
Factory Service Tools
