2002 Isuzu Trooper LS, RWDFACTORY OEM SERVICE PROCEDURE

EHCU Connector Pin-out Checks: Notes

Disconnect Electronic Brake Control Module.
Perform checks with high impedance digital multimeter J-39200 or equivalent.

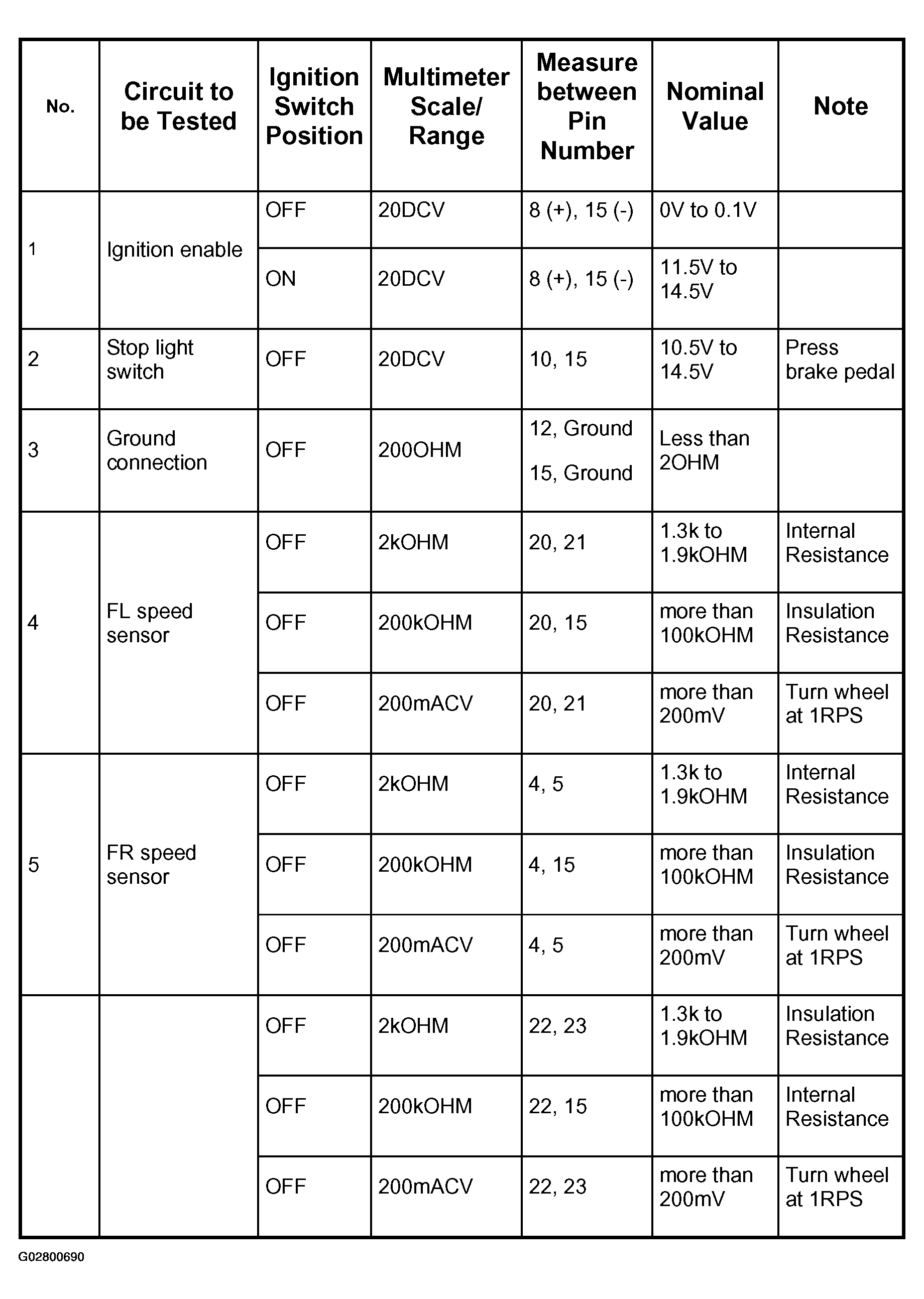

Fig 1: EHCU Connector Pin-Out Checks (1 Of 2)
Courtesy of ISUZU MOTOR CO.
