2002 Isuzu Rodeo S 4WD V6-3.2LFACTORY OEM SERVICE PROCEDURE
Typical Scan Tool Data Values
Use the Typical Scan Data Values Table only after the On-Board Diagnostic System Check has been completed, no DTC(s) were noted, and you have determined that the on-board diagnostics are functioning properly. Tech 2 values from a properly-running engine may be used for comparison with the engine you are diagnosing. The typical scan data values represent values that would be seen on a normally-running engine.
NOTE: A Tech 2 that displays faulty data should not be used, and the problem should be reported to the Tech 2 manufacturer. Use of a faulty Tech 2 can result in misdiagnosis and unnecessary replacement of parts.
Only the parameters listed below are referred for use in diagnosis. For further information on using the Tech 2 to diagnose the PCM and related sensors, refer to the applicable reference section listed below. If all values are within the typical range described below, refer to Symptom Diagnosis for diagnosis.
Test Conditions
Engine running, lower radiator hose hot, transmission in park or neutral, closed loop, accessaries off, brake not applied and air conditioning off.
3.5L V-6 Engine (Automatic and Manual Transmission)
NOTE: A Tech 2 that displays faulty data should not be used, and the problem should be reported to the Tech 2 manufacturer. Use of a faulty Tech 2 can result in misdiagnosis and unnecessary replacement of parts.
Only the parameters listed below are referred for use in diagnosis. For further information on using the Tech 2 to diagnose the PCM and related sensors, refer to the applicable reference section listed below. If all values are within the typical range described below, refer to Symptom Diagnosis for diagnosis.
Test Conditions
Engine running, lower radiator hose hot, transmission in park or neutral, closed loop, accessaries off, brake not applied and air conditioning off.

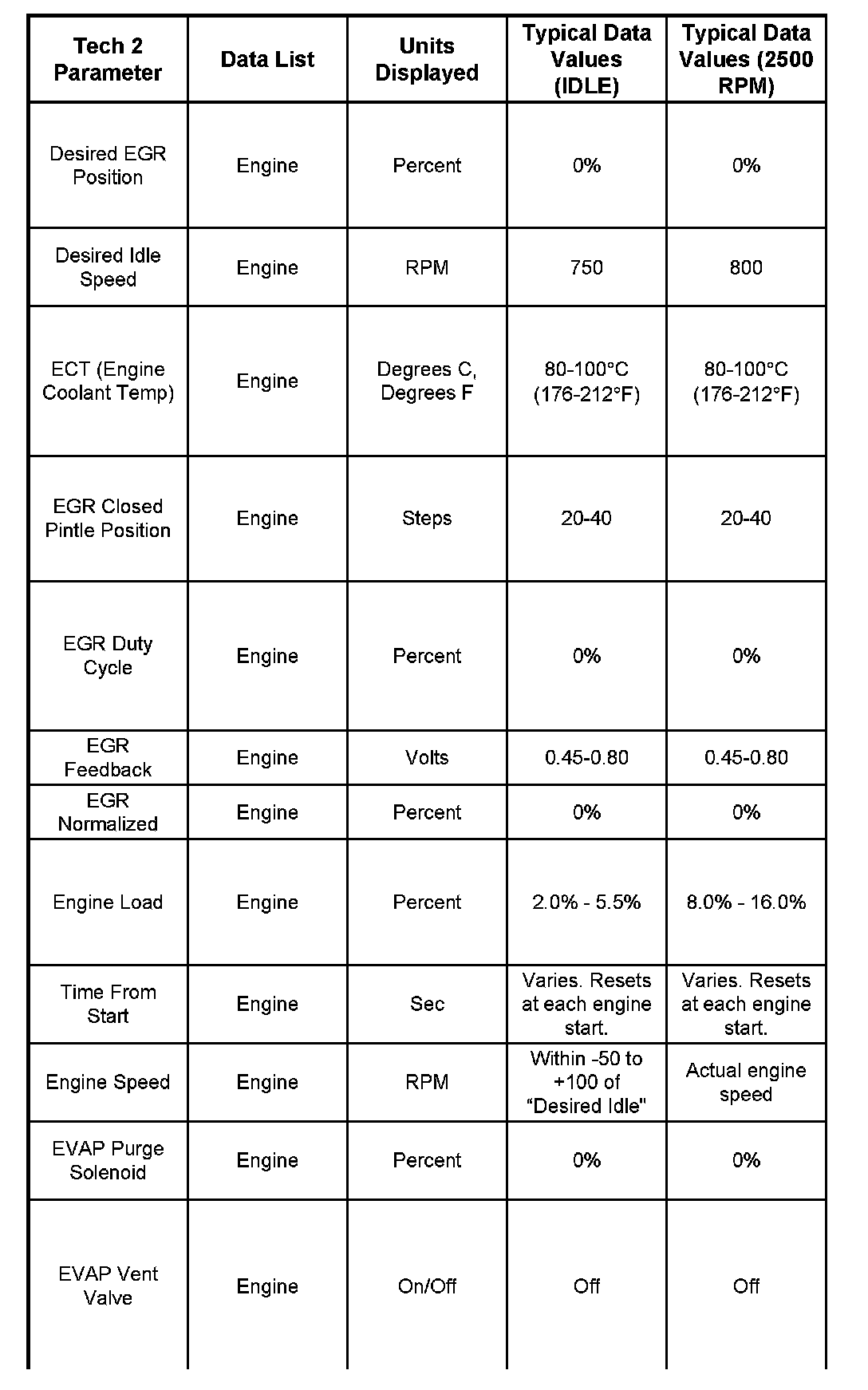

Typical Scan Data Values Part 1:
Typical Scan Data Values Part 2:
Typical Scan Data Values Part 3:
Typical Scan Data Values Part 4:
Typical Scan Data Values Part 5:
Typical Scan Data Values Part 6:
Typical Scan Data Values Part 7:
3.5L V-6 Engine (Automatic and Manual Transmission)
