2002 Isuzu Axiom Base, RWDFACTORY OEM SERVICE PROCEDURE

Getting Started

NOTE: Before starting make sure the vehicle ignition is off.

Before operating the Isuzu PCMCIA card with the Tech 2, the following steps must be performed:
The Isuzu 02 System PCMCIA card (1) inserts into the Tech 2 (4).
Connect the SAE 16/19 adapter (2) to the DLC cable (4).
Connect the DLC cable to the Tech 2 (4)
Make sure vehicle ignition is off.
Connect the Tech 2 SAE 16/19 adapter to the vehicle DLC connector.

Fig 1: Identifying Diagnostic Trouble Code Connector & Terminals
Courtesy of ISUZU MOTOR CO.
The vehicle ignition turns on.
Power up the Tech 2.
Verify the Tech 2 power up display.

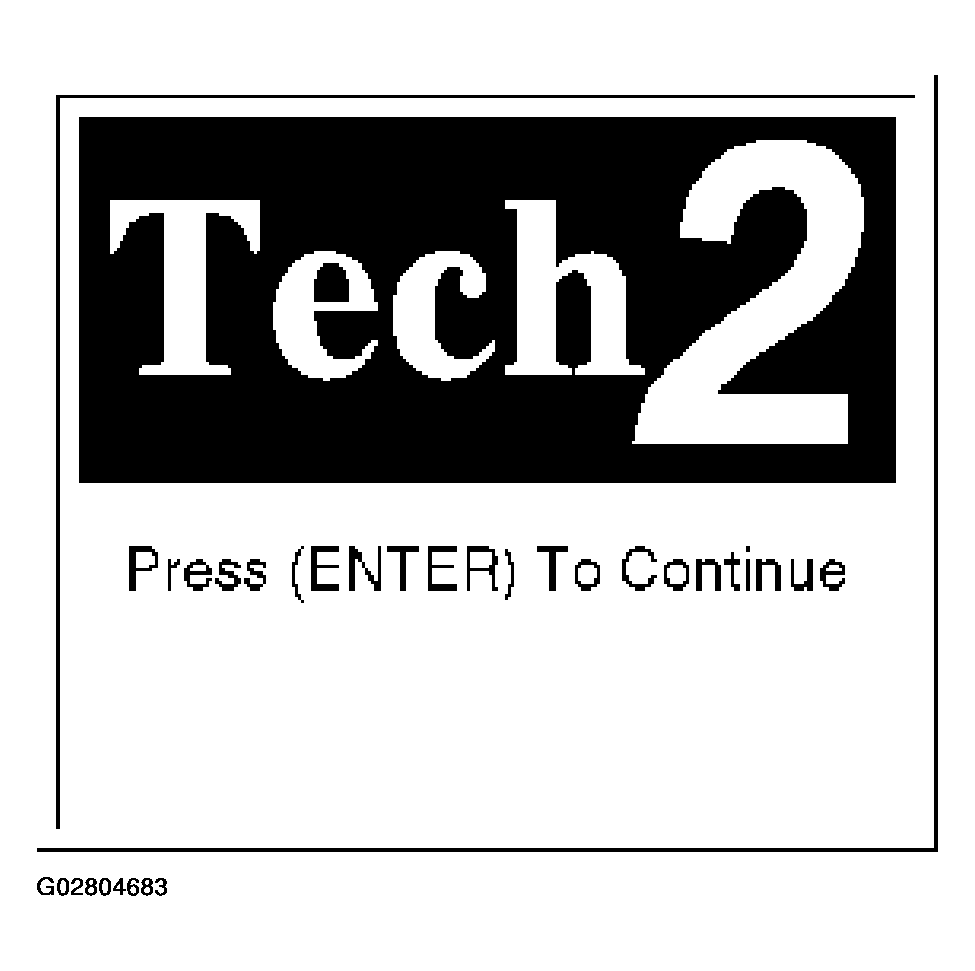

Fig 2: Display Tech 2

Courtesy of ISUZU MOTOR CO.
