2002 Isuzu Axiom Base, RWDFACTORY OEM SERVICE PROCEDURE
Brake Switch

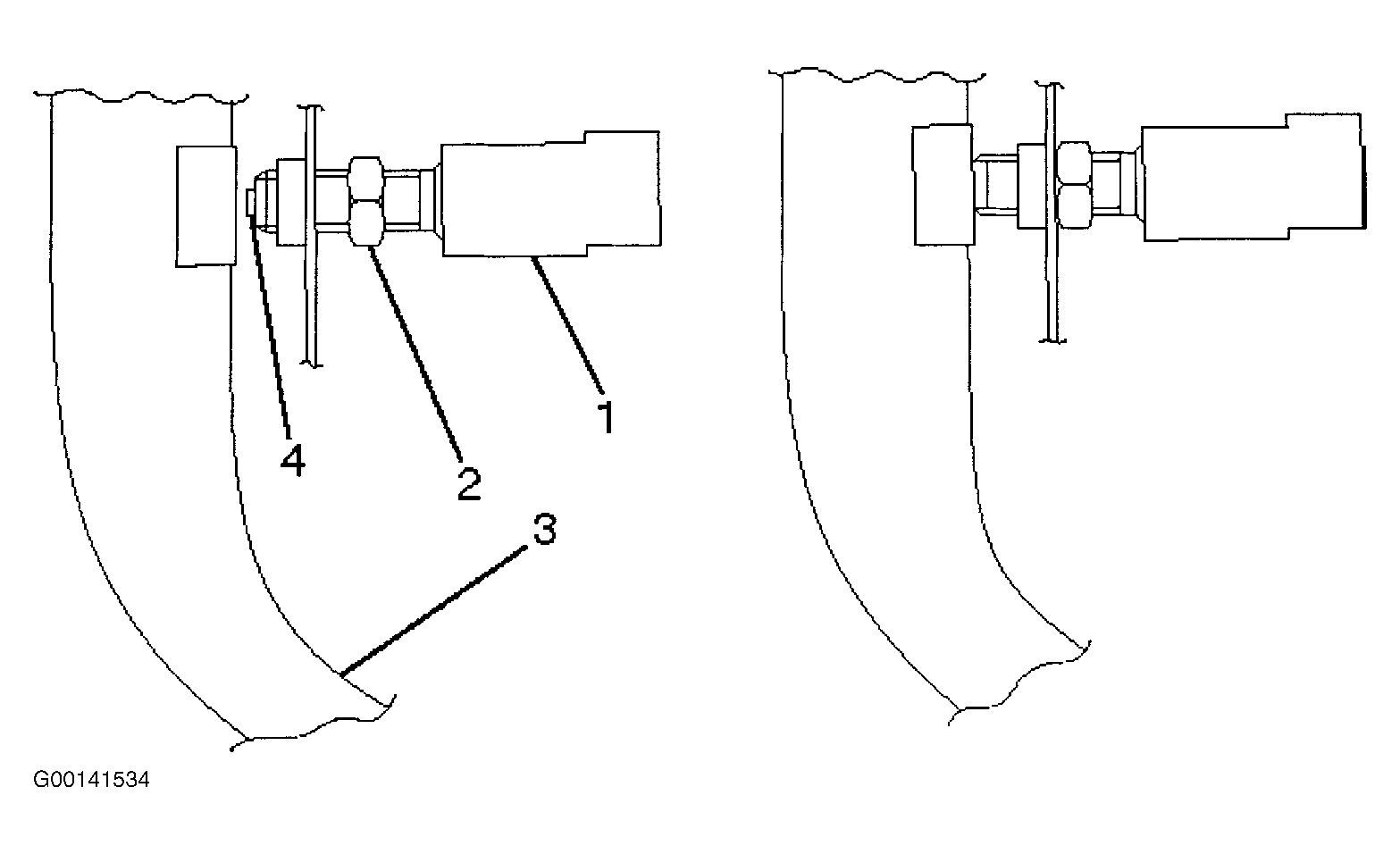

- Ensure that brake pedal is fully returned by pedal return spring. See Fig 1 .
- Disconnect brake switch 2-pin harness connector.
- Loosen lock nut. Rotate brake switch by hand until push rod disappears from brake switch tip.
- Back brake switch out 1/2 turn. Tighten lock nut. Connect harness connector. Test brake light operation. If necessary repeat adjustment until brake lights operate normally.
