Bench Testing: Rectifier

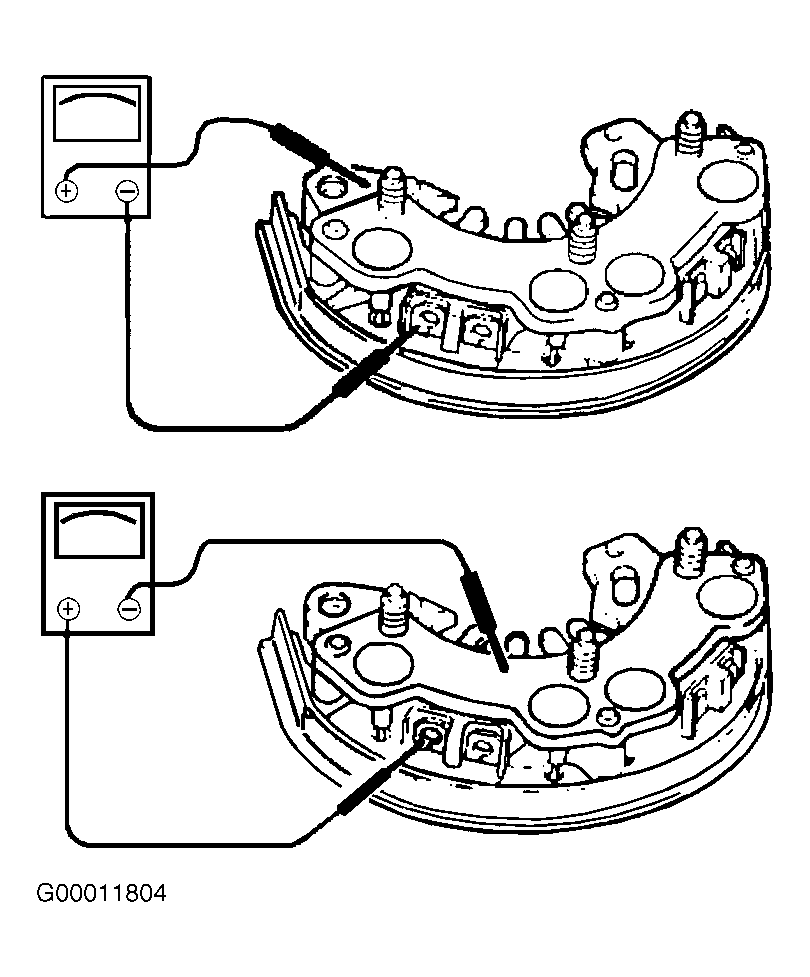

Measure the resistance between each diode terminal and aluminum diode fin in forward and reverse directions with the connection of the tester leads switched. See Fig 1 . The diodes are normal if resistance is nearly zero ohms in one direction and is infinitely high in the other direction. If a diode has no resistance or equal resistance in both directions, it is defective and should be replaced together with the holder
