2002 Isuzu Axiom Base, RWDFACTORY OEM SERVICE PROCEDURE
Bench Testing: Generator
- Remove the generator from the vehicle. See GENERATOR under REMOVAL & INSTALLATION.

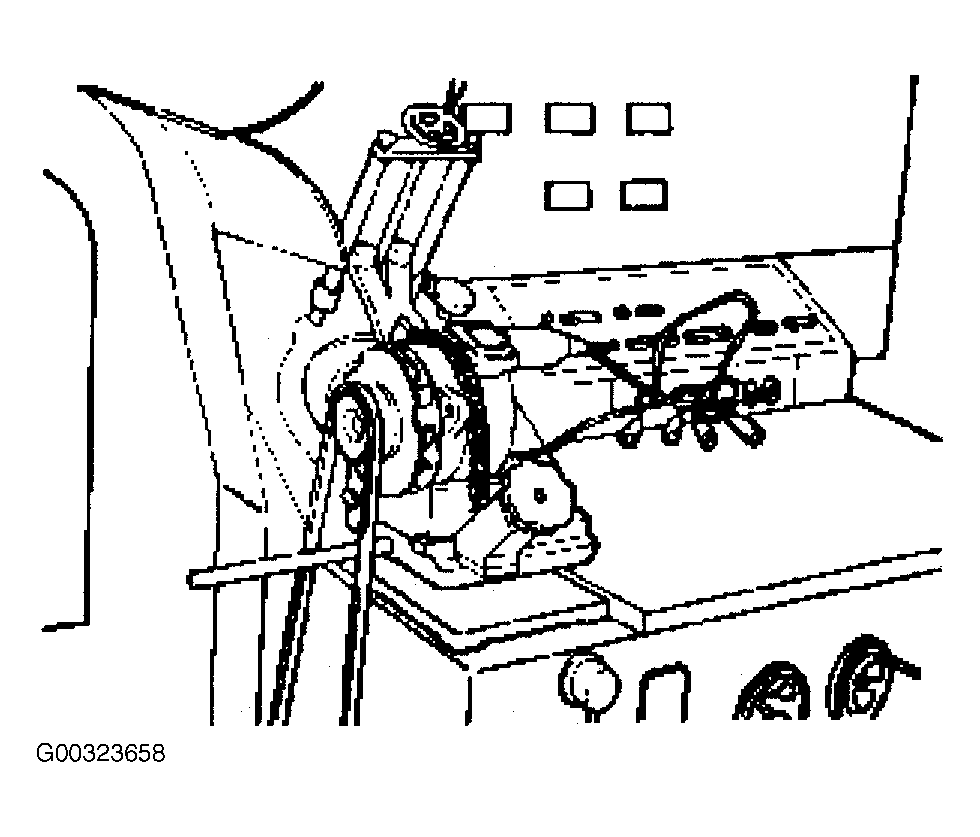

- Secure the generator to the bench test equipment and connect wires. See Fig 1
.
- Terminal "IG" for energizing
- Terminal "L" for neutral (warming lamp)
- Terminal "B" for output
- Conduct the generator output test. For characteristics of generator, see Fig 2 . Repair or replace the generator if its outputs are abnormal.
