2001 Isuzu Rodeo S 2WD L4-2.2LFACTORY OEM SERVICE PROCEDURE
Torque Specifications
TORQUE SPECIFICATIONS

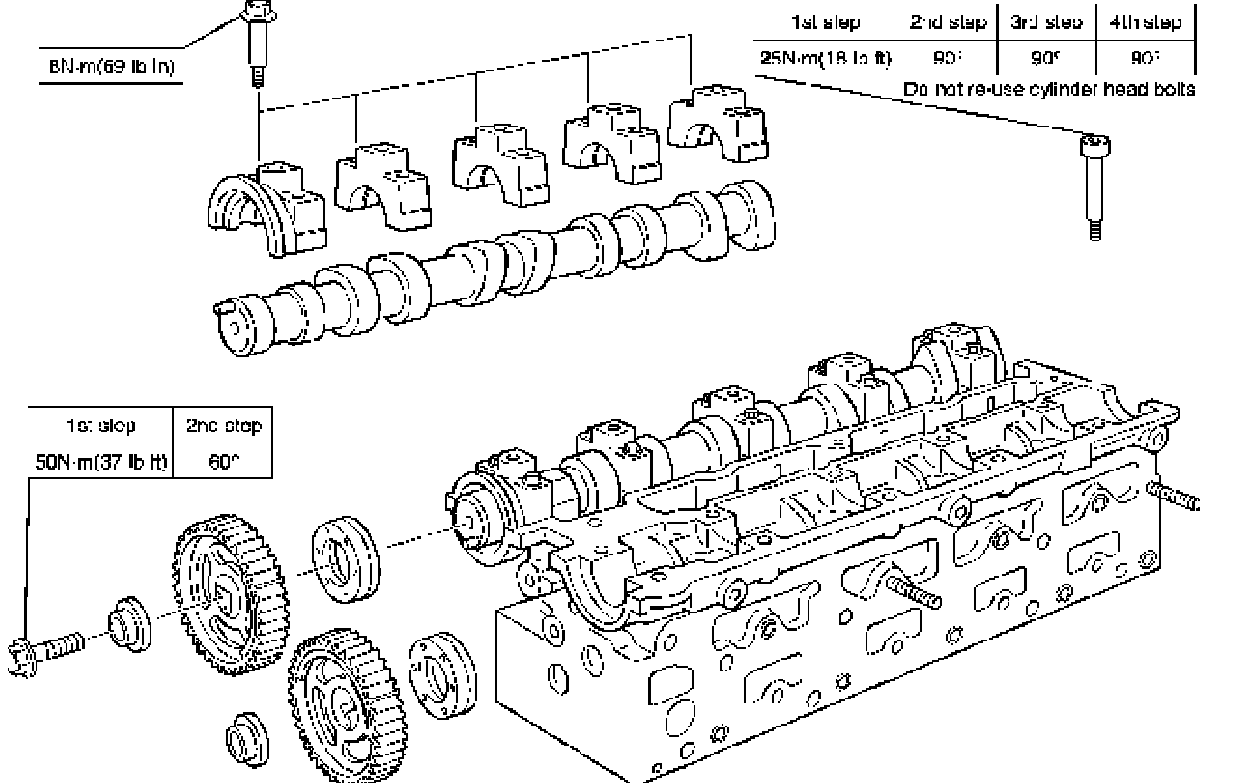

Camshaft Bracket, Timing Gear Camshaft Side, Cylinder Head

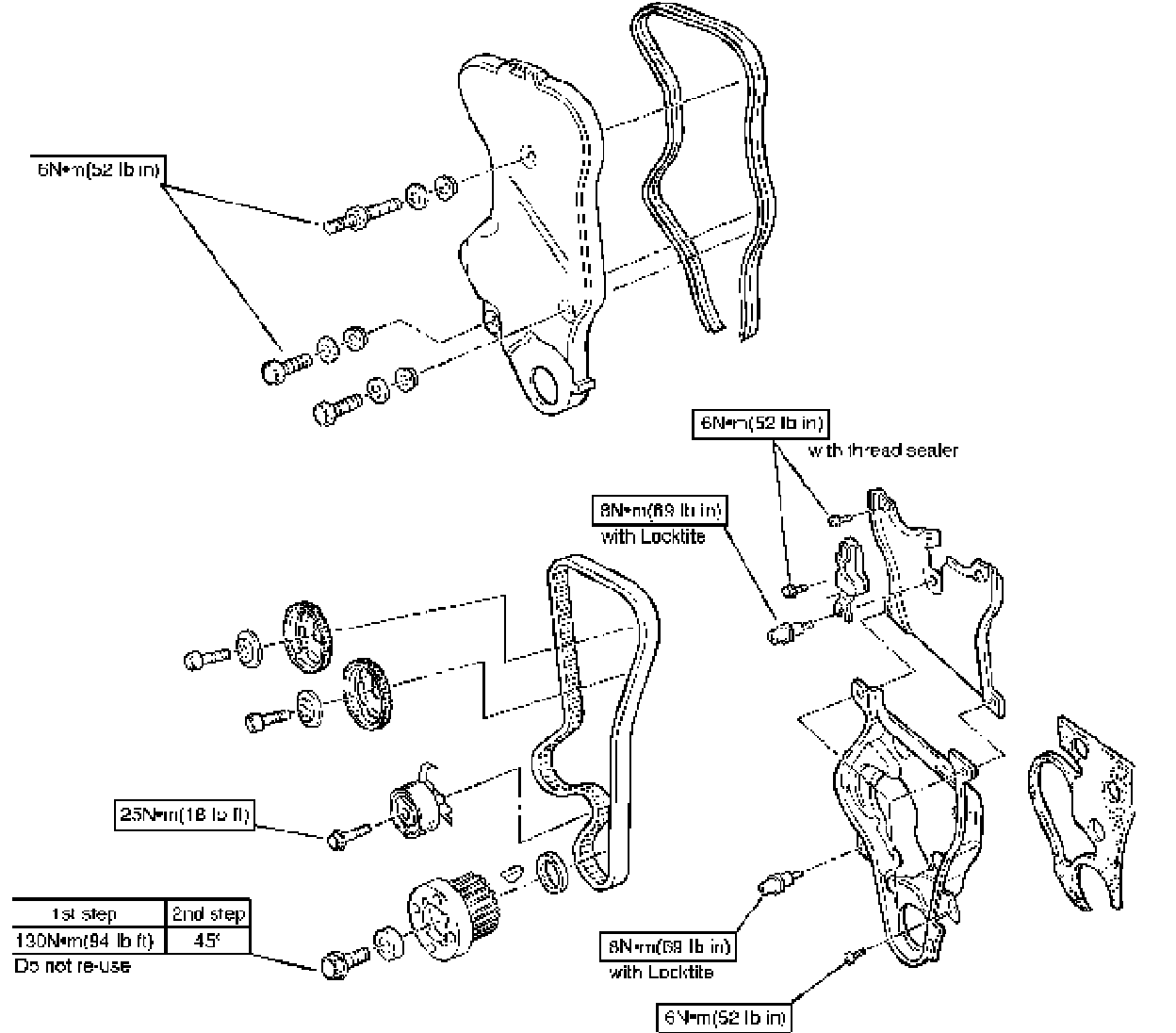

Timing Gear Crankshaft (Center Bolt), Timing Belt Cover Front, Timing Belt Cover Rear, Timing Belt Tensioner, Camshaft Angle Sensor
Crankshaft Main Bearing, Oil Pan Support, Oil Pan, Balance Unit Assembly, Connecting rod Cap, Oil Pump, Oil Strainer

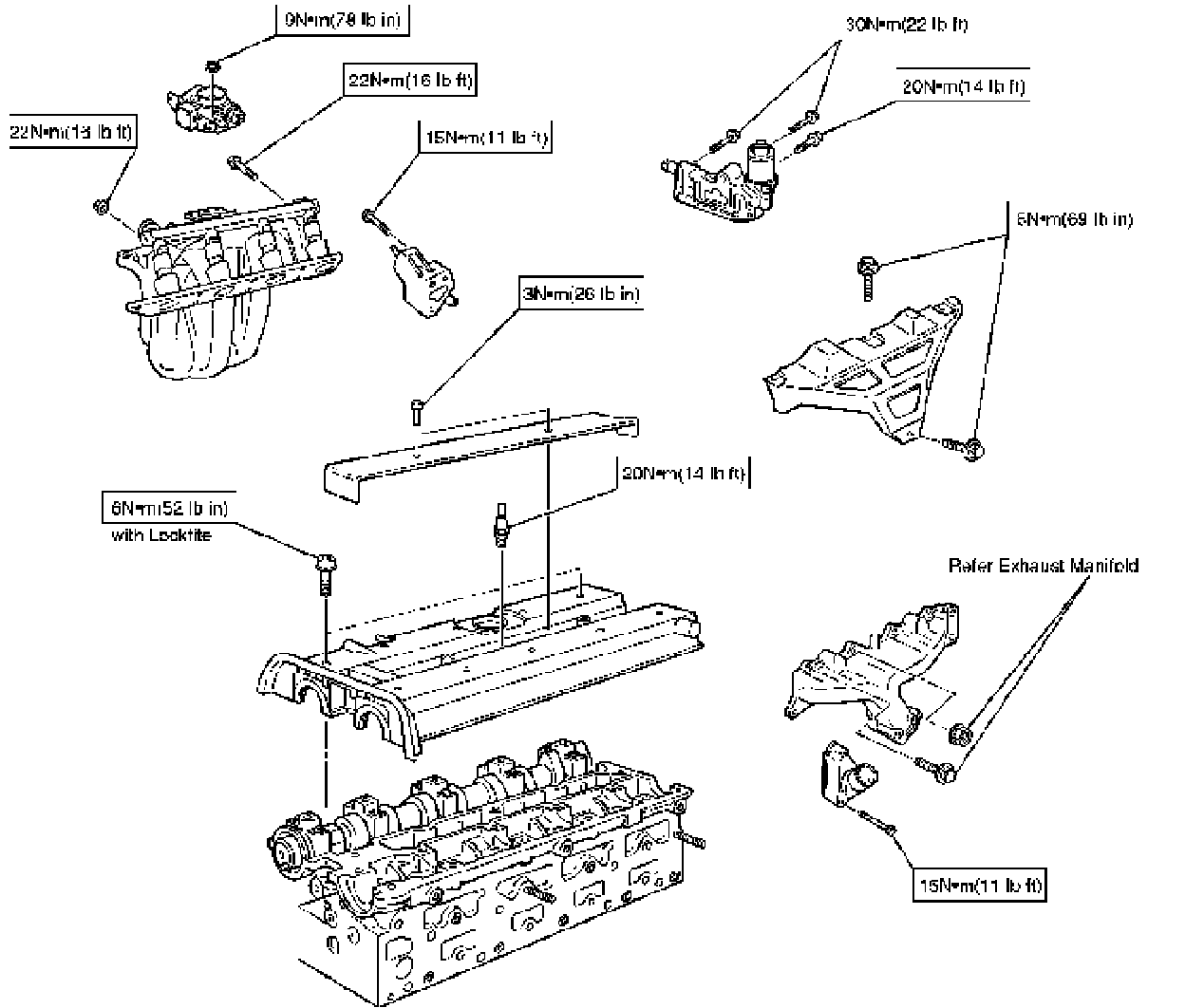

Spark Plug, Throttle Body, EGR Valve Adapter Assembly, Bypass Housing Assembly, Thermostat Assembly, Inlet Manifold Assembly, Exhaust Manifold Assembly, Heat Shield, Ignition Cable Cover

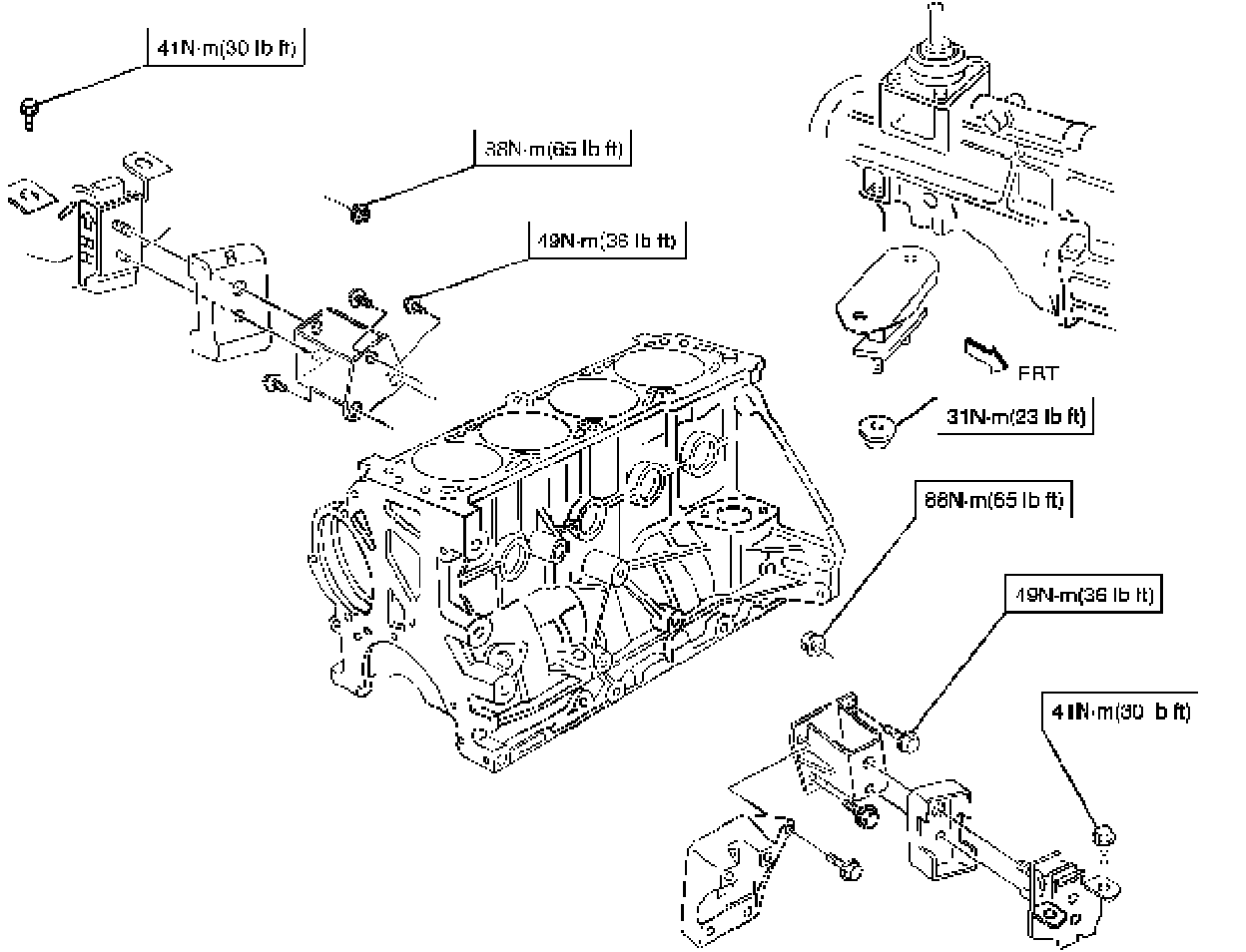

Engine Mount
TIGHTENING SEQUENCES
Cylinder Head Removal
Cylinder Head Installation
Camshaft Bearing Cap Installation
Note: Remove camshaft bearing caps in reverse order of installation.
Camshaft Bracket, Timing Gear Camshaft Side, Cylinder Head
Timing Gear Crankshaft (Center Bolt), Timing Belt Cover Front, Timing Belt Cover Rear, Timing Belt Tensioner, Camshaft Angle Sensor
Crankshaft Main Bearing, Oil Pan Support, Oil Pan, Balance Unit Assembly, Connecting rod Cap, Oil Pump, Oil Strainer
Spark Plug, Throttle Body, EGR Valve Adapter Assembly, Bypass Housing Assembly, Thermostat Assembly, Inlet Manifold Assembly, Exhaust Manifold Assembly, Heat Shield, Ignition Cable Cover
Engine Mount
TIGHTENING SEQUENCES
Cylinder Head Removal
Cylinder Head Installation
Camshaft Bearing Cap Installation
Note: Remove camshaft bearing caps in reverse order of installation.
