2001 Isuzu Rodeo S 2WD L4-2.2LFACTORY OEM SERVICE PROCEDURE
Pinout Values and Diagnostic Parameters
PCM Pinout Table, 32-Pin Red Connector - Row "A":

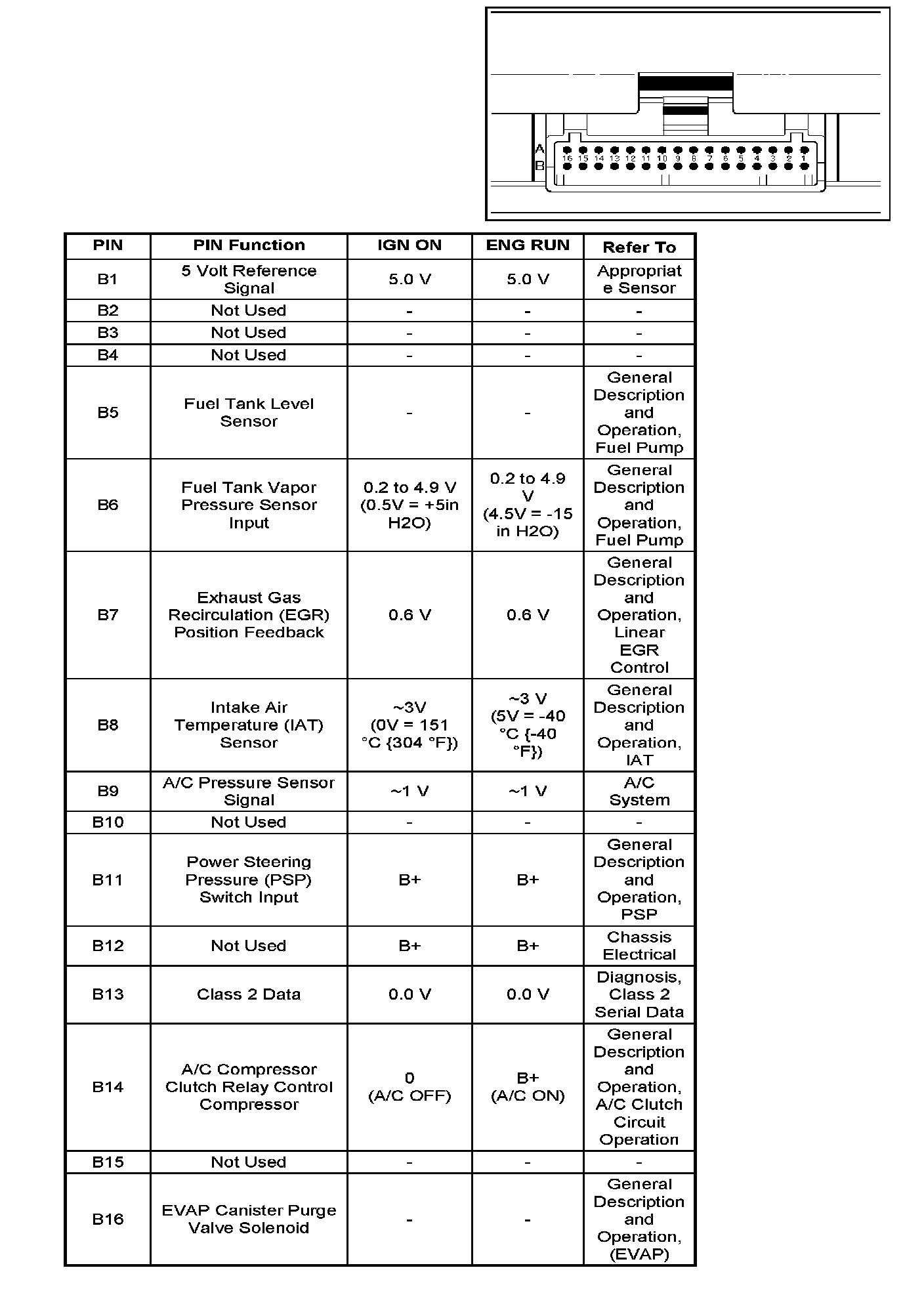

PCM Pinout Table, 32-Pin Red Connector - Row "B":
PCM Pinout Table, 32-Pin Red Connector - Row "C":
PCM Pinout Table, 32-Pin Red Connector - Row "D":

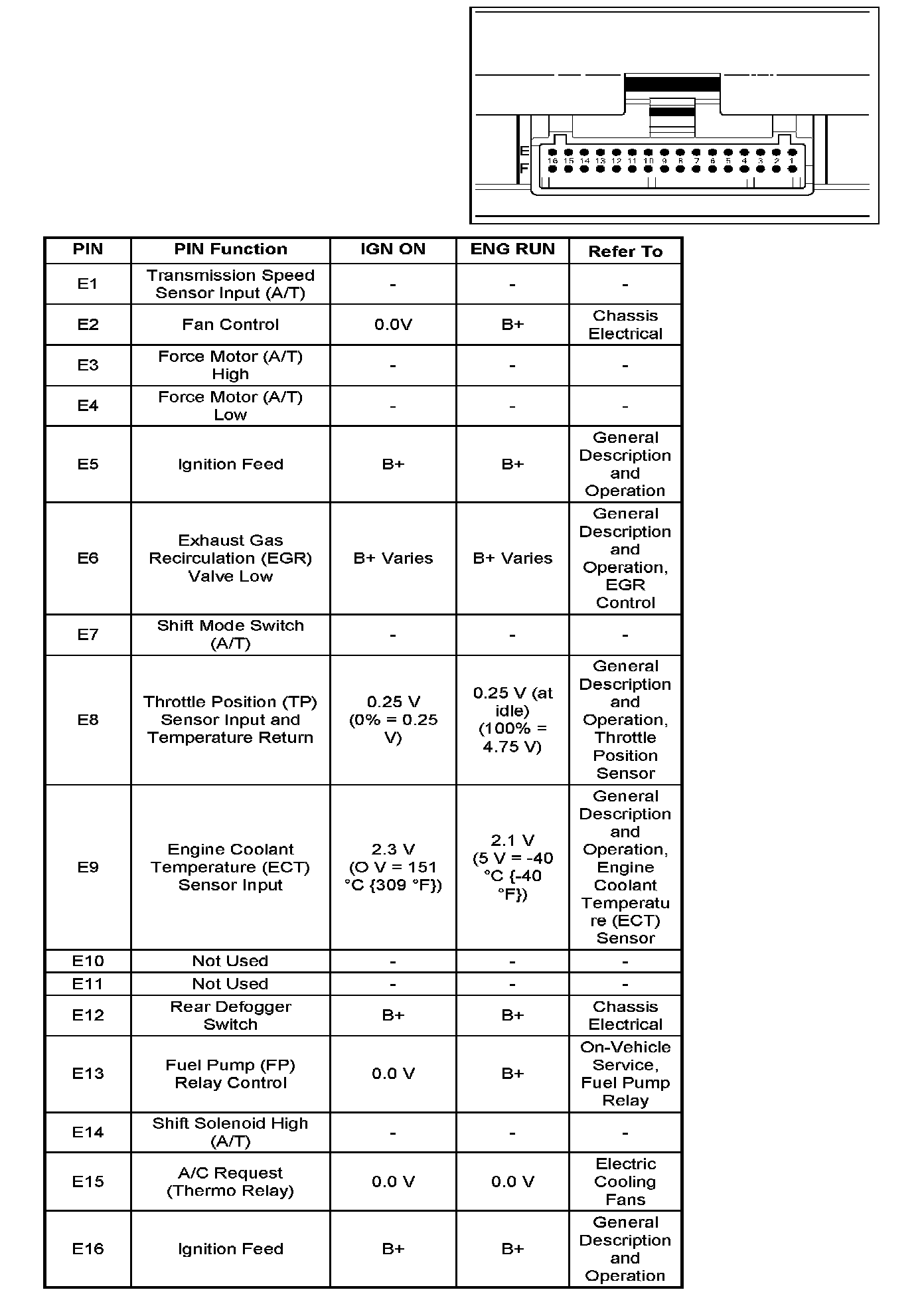

PCM Pinout Table, 32-Pin Red Connector - Row "E":
PCM Pinout Table, 32-Pin Red Connector - Row "F":
