2001 Isuzu Rodeo LS 2WD V6-3.2LFACTORY OEM SERVICE PROCEDURE
Torque Specifications
TORQUE SPECIFICATIONS

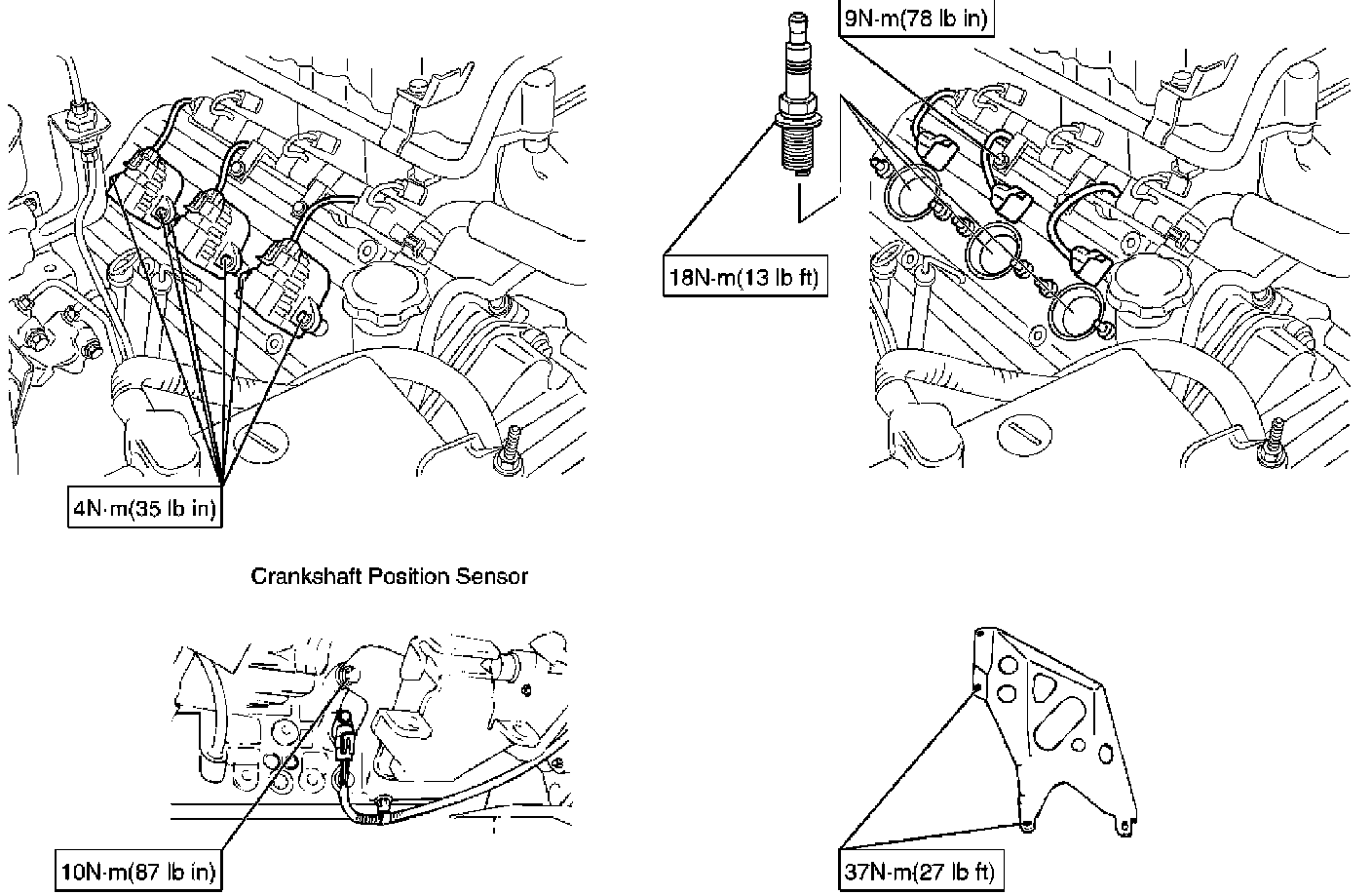

Ignition Coil, Spark Plug, Crankshaft Angle Sensor and Under Cover

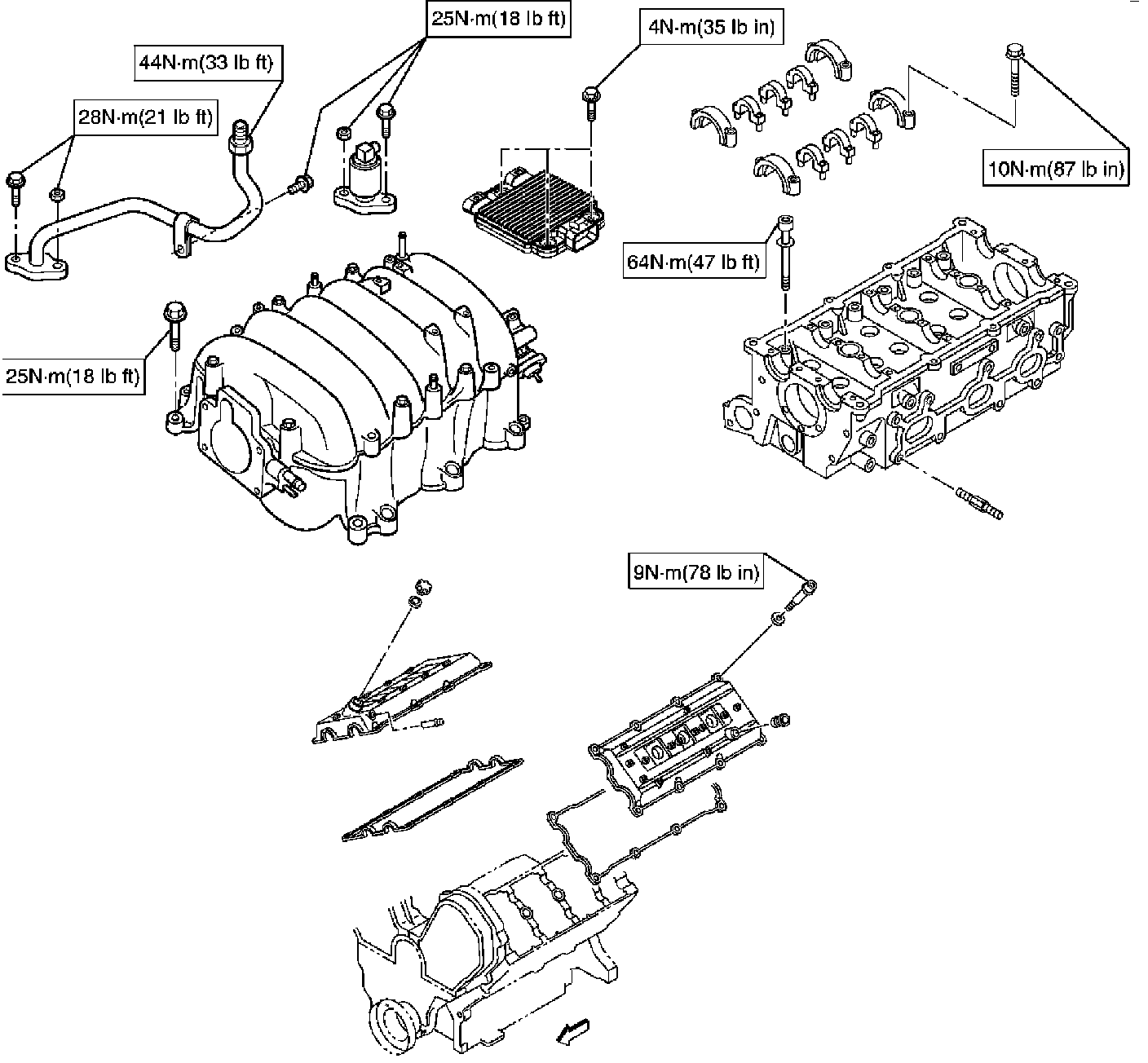

Cylinder Head Cover, Cylinder Head, Camshaft Bearing Cap, Common Chamber, EGR Valve and EGR Pipe

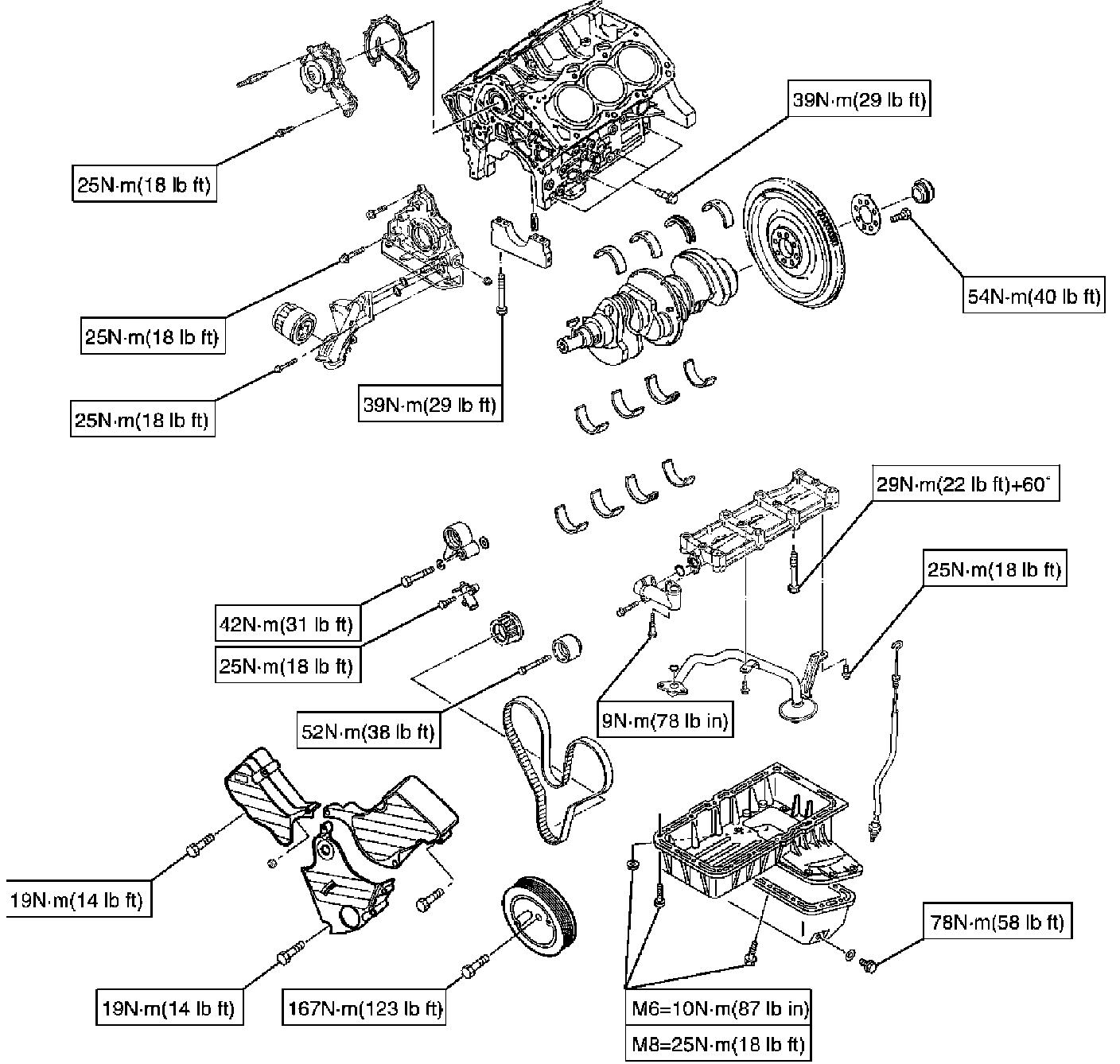

Crankshaft Main Bearing, Flywheel, Crankcase, Oil Pan, Timing Belt Tensioner, Timing Pulley, Timing Belt Cover, Oil Pump, Oil Gallery, Oil Strainer and Water Pump
Connecting Rod and Water Pump

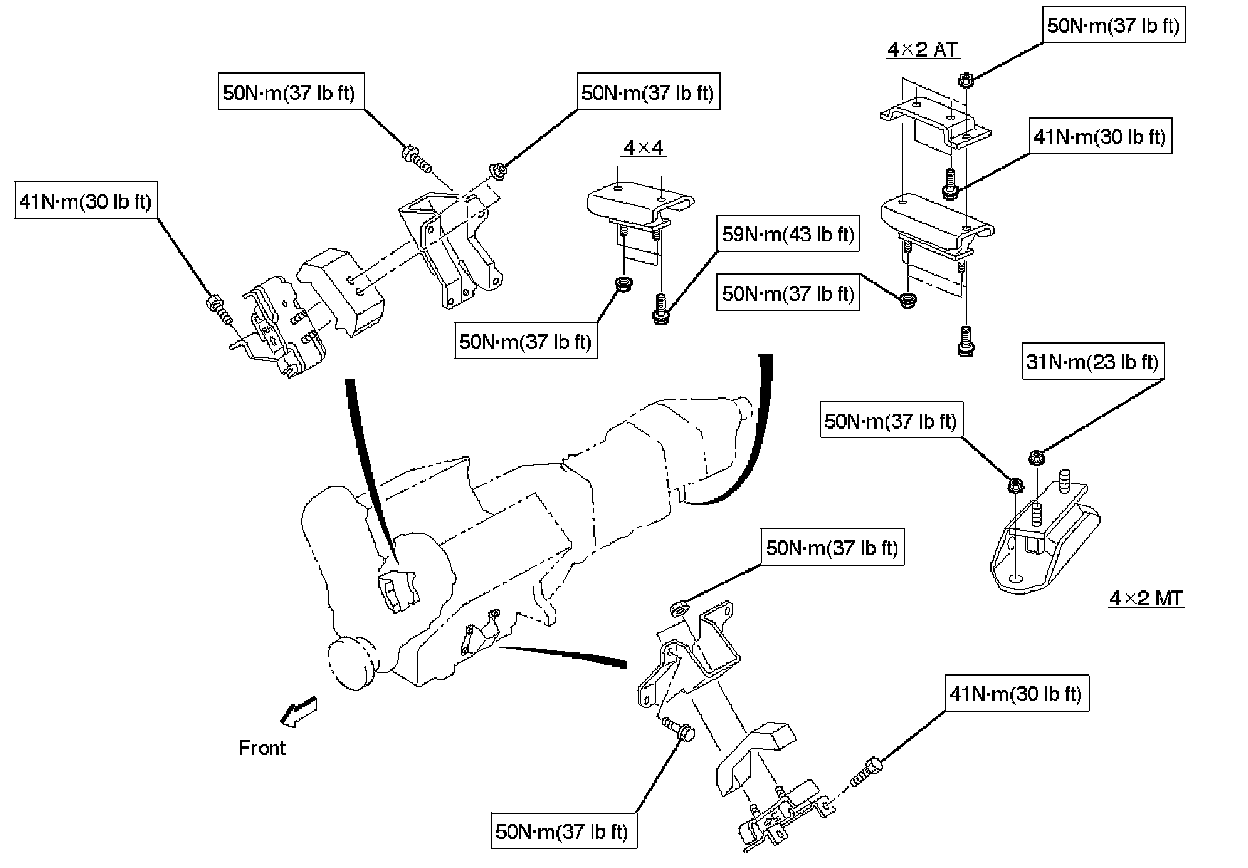

Engine Mount
Note: Do not reuse cylinder head bolts.
TIGHTENING SEQUENCES

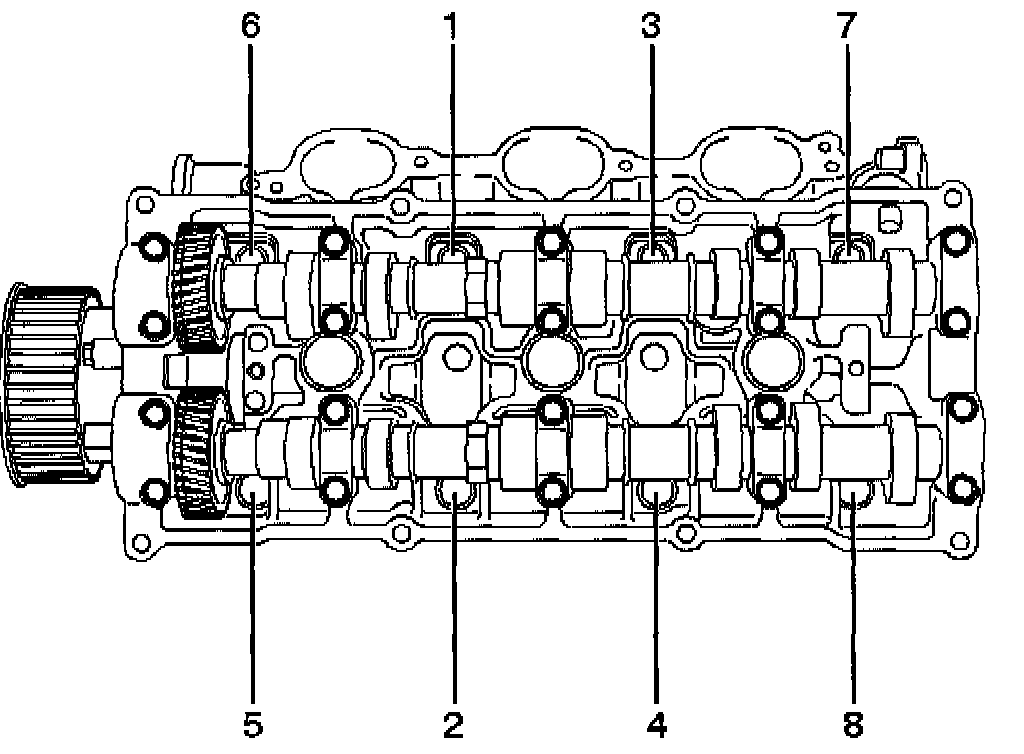

Cylinder Head
Installation
Note: The sequence for removal is the reverse of the installation sequence.

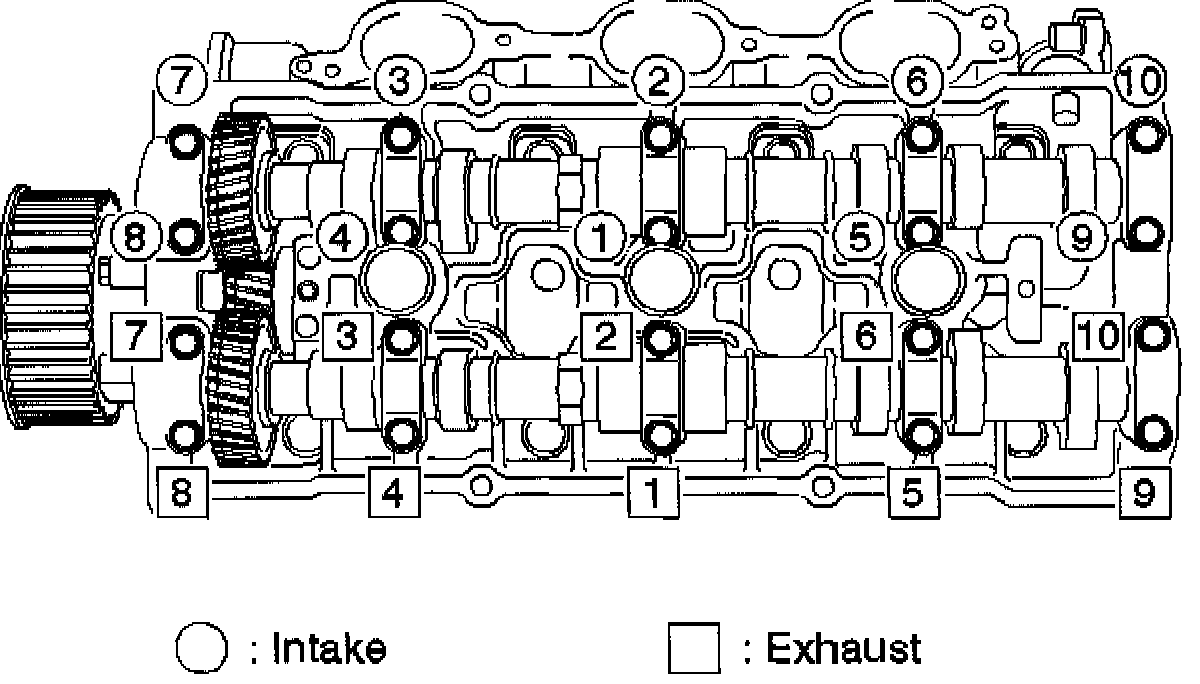

Camshaft Bearing Cap
Installation
Note: The sequence for removal is the reverse of the installation sequence.
Ignition Coil, Spark Plug, Crankshaft Angle Sensor and Under Cover
Cylinder Head Cover, Cylinder Head, Camshaft Bearing Cap, Common Chamber, EGR Valve and EGR Pipe
Crankshaft Main Bearing, Flywheel, Crankcase, Oil Pan, Timing Belt Tensioner, Timing Pulley, Timing Belt Cover, Oil Pump, Oil Gallery, Oil Strainer and Water Pump
Connecting Rod and Water Pump
Engine Mount
Note: Do not reuse cylinder head bolts.
TIGHTENING SEQUENCES
Cylinder Head
Installation
Note: The sequence for removal is the reverse of the installation sequence.
Camshaft Bearing Cap
Installation
Note: The sequence for removal is the reverse of the installation sequence.
