2001 Isuzu Rodeo LS 2WD V6-3.2LFACTORY OEM SERVICE PROCEDURE
Ignition Control Module: Service and Repair
Removal Procedure
1. Disconnect the negative battery cable.
2. Disconnect the ION sensing module connector.

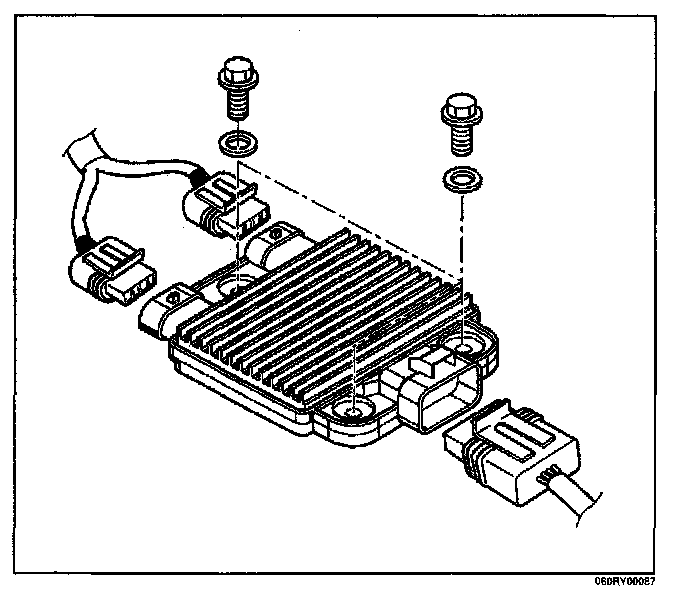

3. Remove the bolts and the ION sensing module from the common chamber.
Installation Procedure
1. Install the ION sensing module on the common chamber with the bolts.
Tighten
- Tighten the ION sensing module to 4 N.m (35 lb.in.).

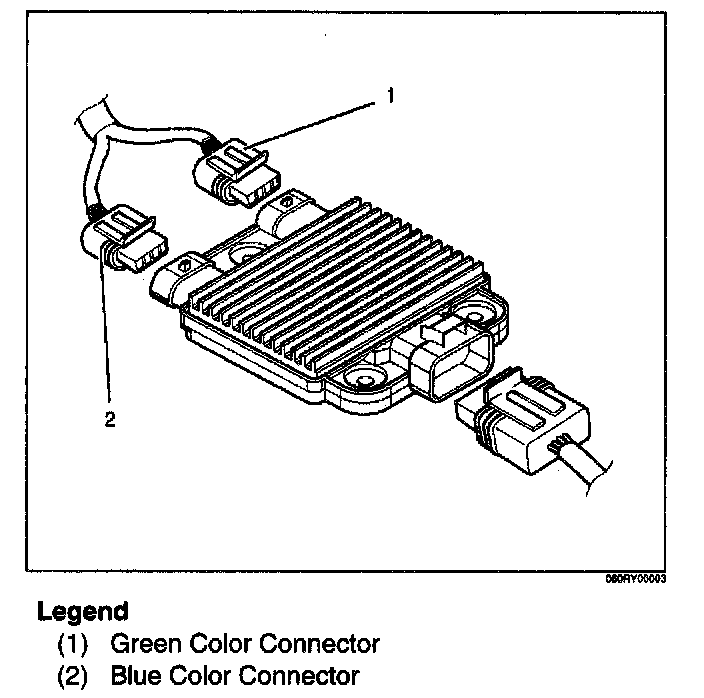

2. Connect the ION sensing module connectors as shown in the illustration.
3. Connect the negative battery cable.
