2001 Isuzu Rodeo LS 2WD V6-3.2LFACTORY OEM SERVICE PROCEDURE
Component Locations

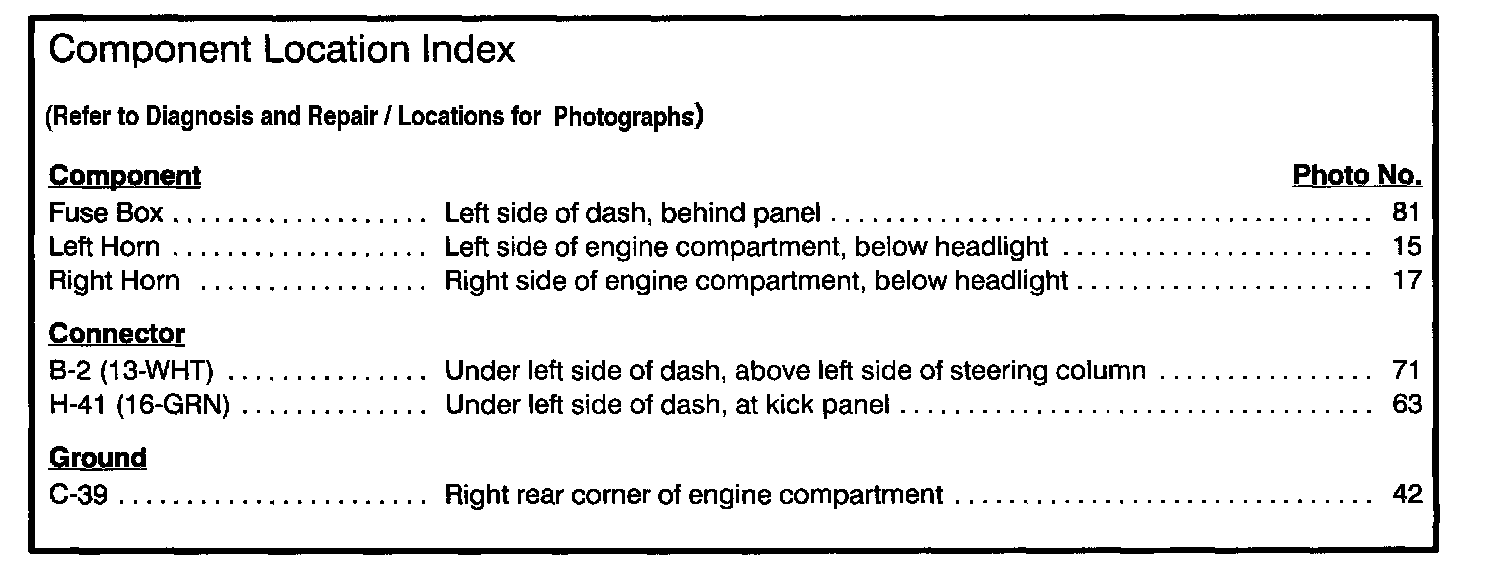

A component location index follows each schematic. Except for the location of obvious components like left headlight, the index lists the location of every component, connector and ground in the schematic. The index also gives references to component location photographs located in /Locations/Photographs. Component Locations The number of cavities in each connector and the connector color is also listed. Wires may not be used in all connector cavities.
