2000 Isuzu Trooper LS, RWDFACTORY OEM SERVICE PROCEDURE

Body Structure: Windshield: Removal

  1. Disconnect the battery ground cable.
  2. Remove windshield wiper.
  3. Remove front cowl cover.
  4. Remove windshield side moulding.
    • Pull the moulding out from the windshield side moulding clip.
  5. Remove windshield support.
  6. Remove windshield side seal.
  7. Remove windshield (2).
    • Use a knife to cut through part of the adhesive caulking material.
    • Secure one end of a piece of steel piano wire (1) (0.02 inches in diameter) to a piece of wood that can serve as a handle.

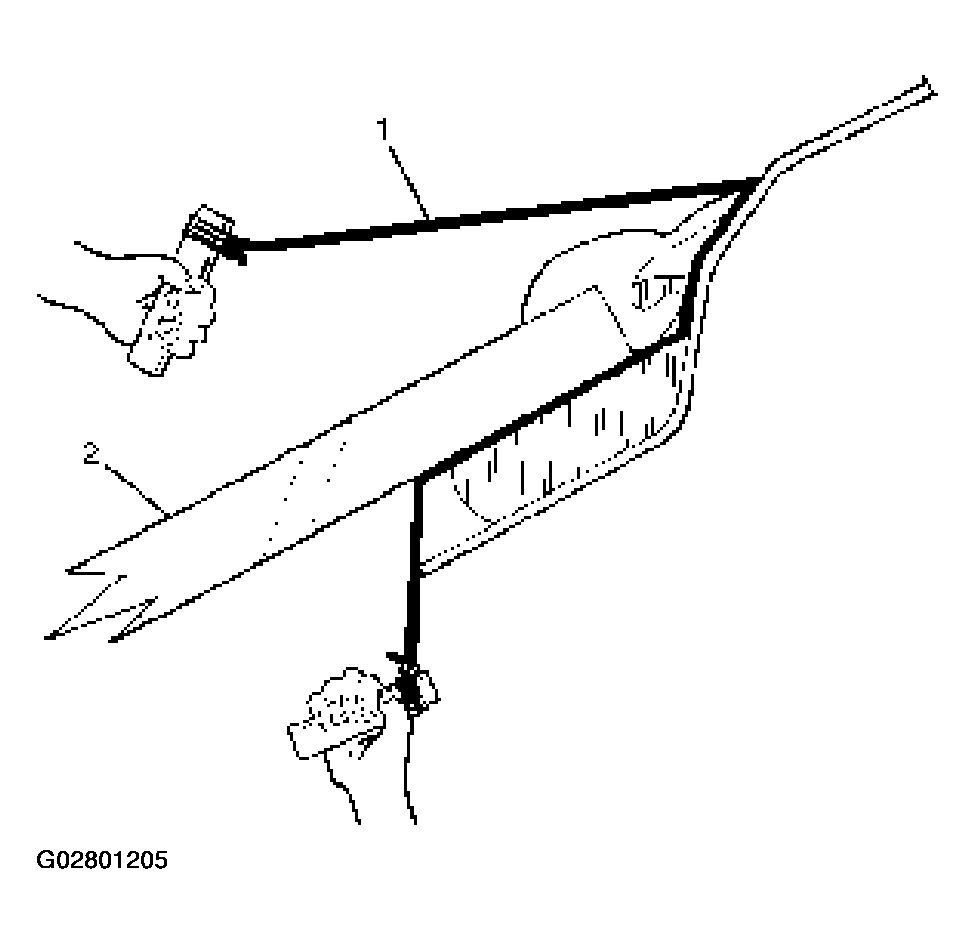

      Fig 1: Removing Windshield
      G02801205Courtesy of ISUZU MOTOR CO.
    • Use a pair of needle nose pliers to insert the other end of the piano wire through the adhesive caulking material at the edge of the windshield glass.
    • Secure the other end of the piano wire to another piece of wood.
    • With the aid of an assistant, carefully move the piano wire with a sawing motion to cut through the adhesive caulking material around the entire circumference of the windshield glass.
    • Clean the remaining adhesive caulking material from the area of the body which holds the windshield.
  8. Remove windshield upper moulding.
    • Taking notice of the adhesive tape, and peel the moulding off the windshield upper portion.
  9. Remove moulding clip.
  10. Remove spacer.
