2000 Isuzu Trooper LS V6-3.5LFACTORY OEM SERVICE PROCEDURE
Ignition Control Module: Testing and Inspection
ION SENSING MODULE
REMOVAL PROCEDURE
1. Disconnect the negative battery cable.
2. Disconnect the ION sensing module connector.
3. Remove the bolts and the ION sensing module from the common chamber.
INSTALLATION PROCEDURE
1. Install the ION sensing module on the common chamber with the bolts.
Tighten
Tighten the ION sensing module to 4 N.m (35 lb in.).

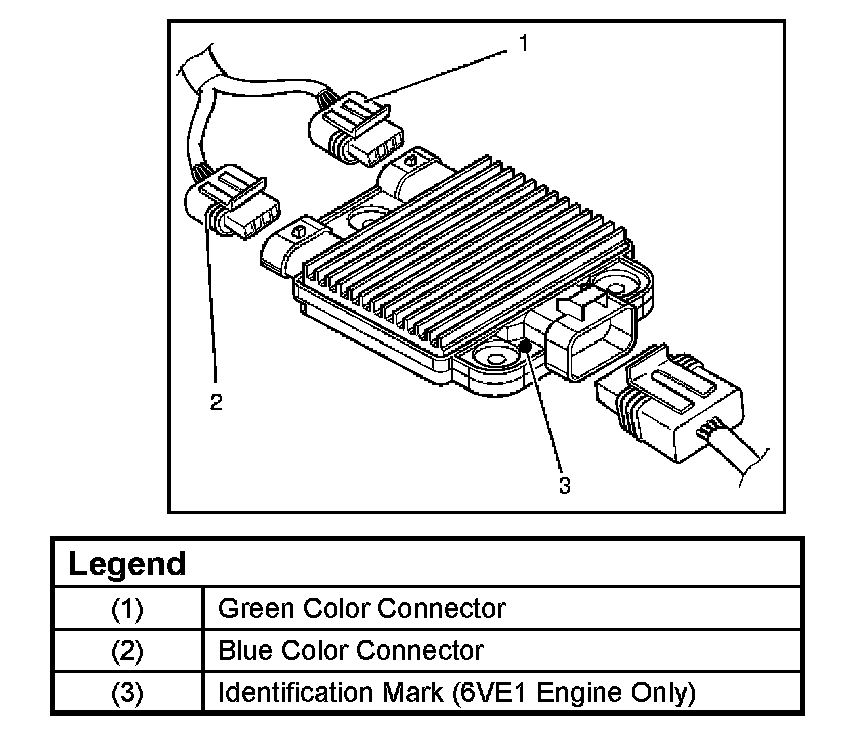

2. Connect the ION sensing module connectors as shown in the illustration.
3. Connect the negative battery cable.
REMOVAL PROCEDURE
1. Disconnect the negative battery cable.
2. Disconnect the ION sensing module connector.
3. Remove the bolts and the ION sensing module from the common chamber.
INSTALLATION PROCEDURE
1. Install the ION sensing module on the common chamber with the bolts.
Tighten
Tighten the ION sensing module to 4 N.m (35 lb in.).
2. Connect the ION sensing module connectors as shown in the illustration.
3. Connect the negative battery cable.
