2000 Isuzu Rodeo S 2WD V6-3.2LFACTORY OEM SERVICE PROCEDURE
Torque Specifications
Torque Specifications

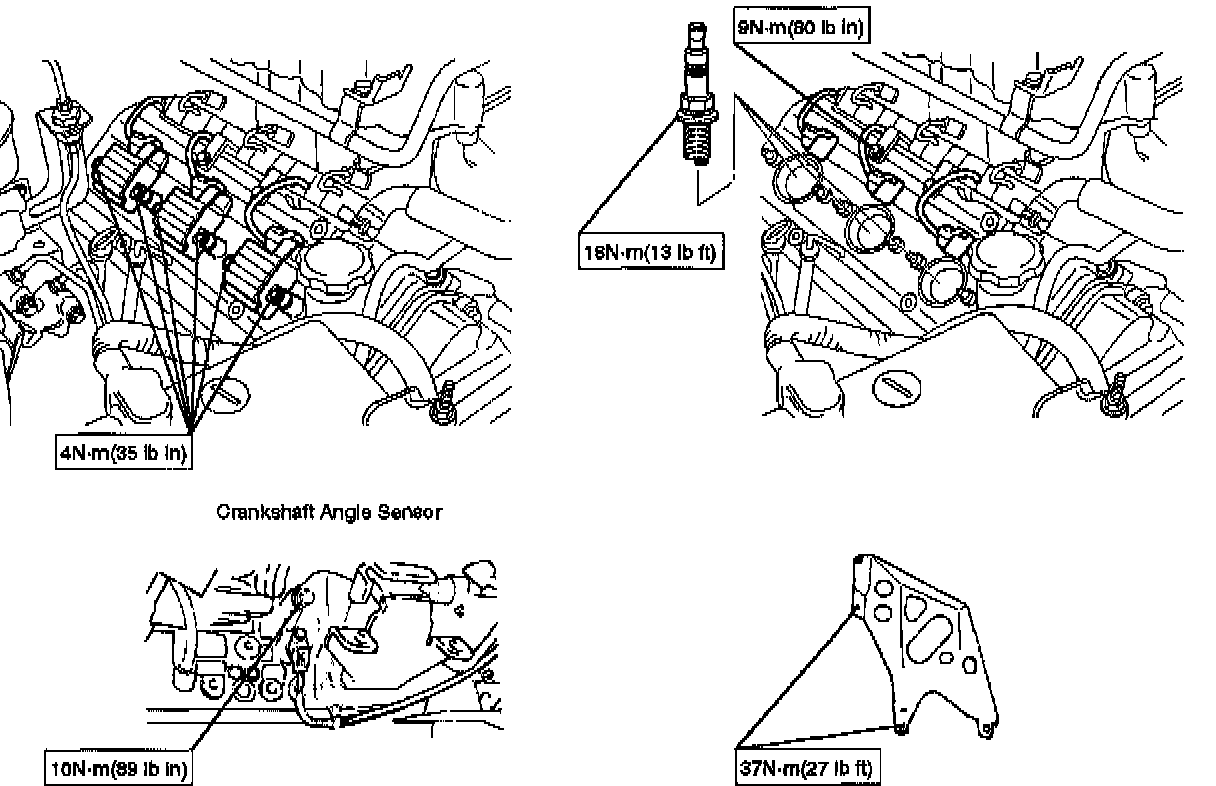

Ignition coil, Spark plug, Crankshaft angle sensor and Under cover
Cylinder head cover, Cylinder head, Camshaft bracket, Common chamber, EGR valve and EGR pipe

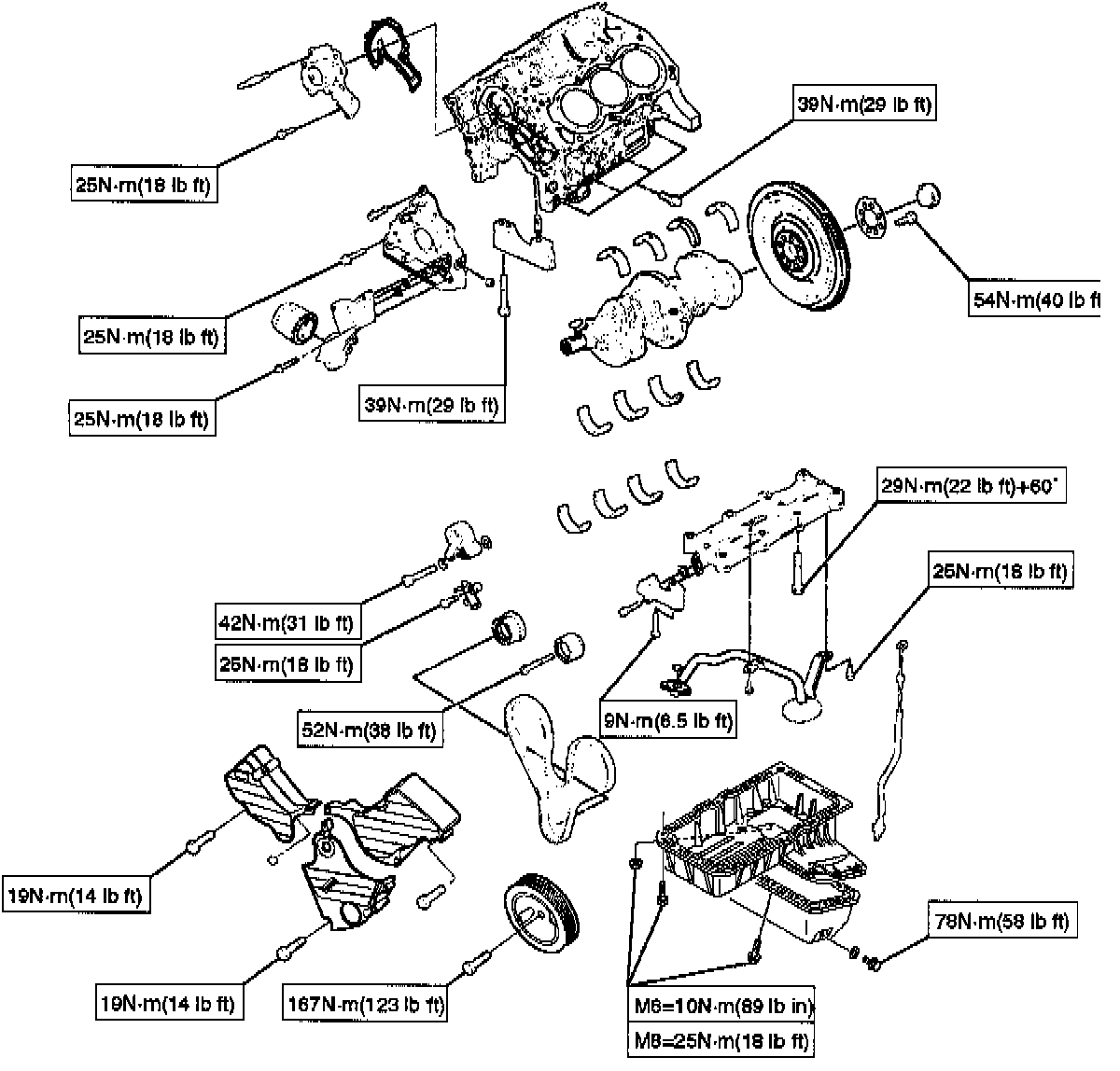

Crankshaft main bearing, Flywheel, Crankcase, Oil pan, Timing belt tensioner, Timing pulley, Timing belt cover, Oil pump, Oil gallery, Oil strainer and water pump
Crankcase, Oil Pan, Timing Belt Tensioner, Timing Pulley, Timing Belt Cover, Oil Pump, Oil Gallery, Oil Strainer

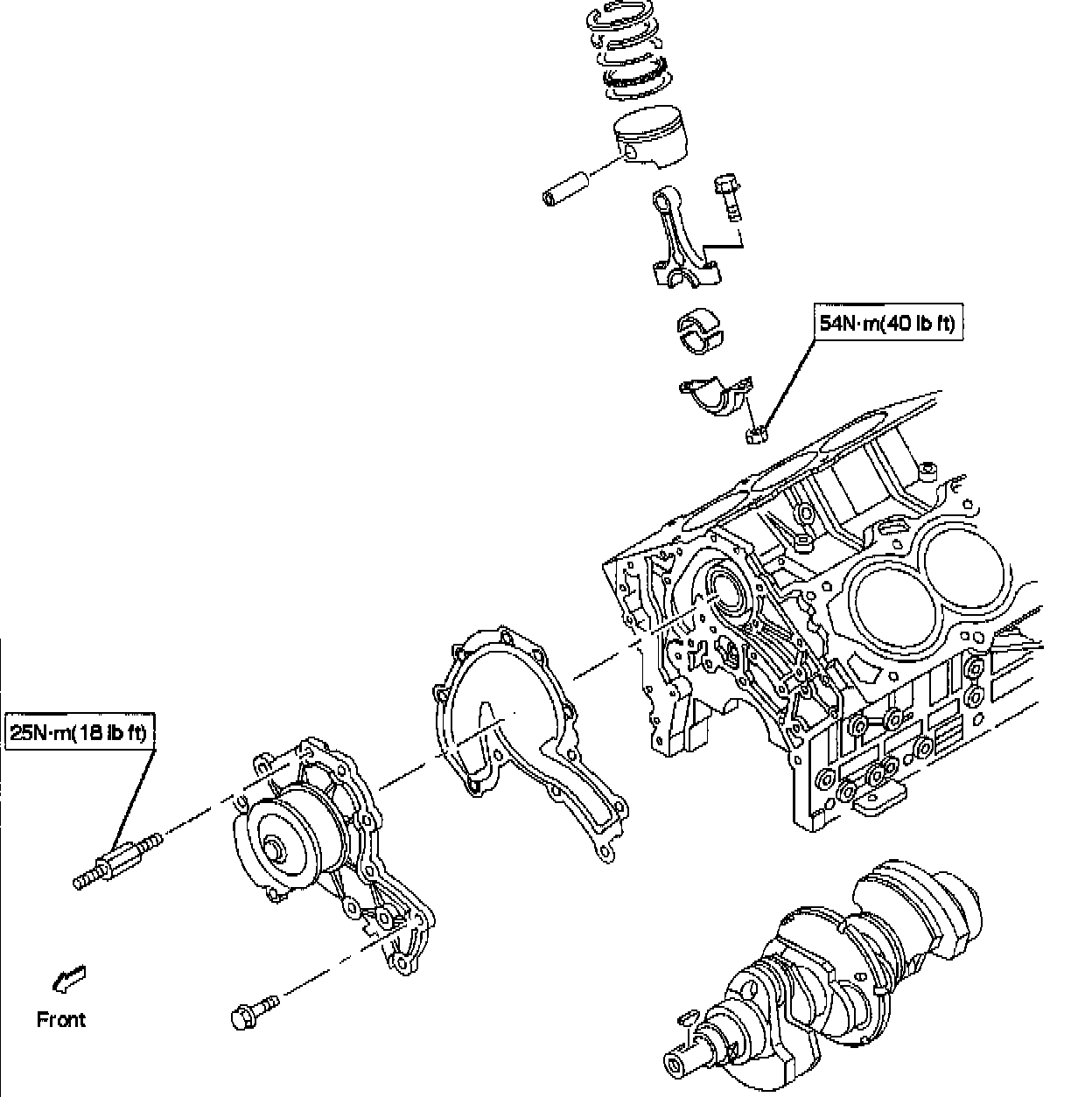

Connecting Rod And Water Pump

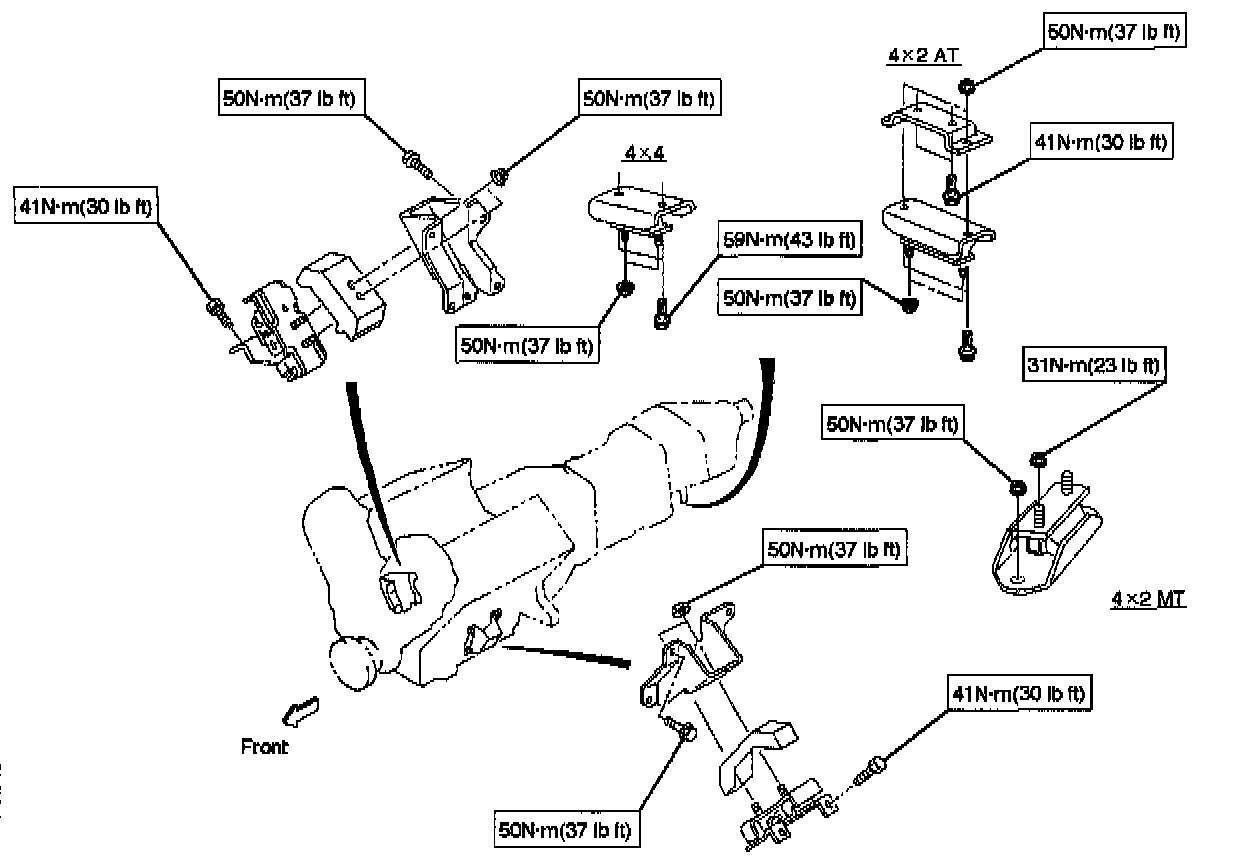

Engine Mount
Ignition coil, Spark plug, Crankshaft angle sensor and Under cover
Cylinder head cover, Cylinder head, Camshaft bracket, Common chamber, EGR valve and EGR pipe
Crankshaft main bearing, Flywheel, Crankcase, Oil pan, Timing belt tensioner, Timing pulley, Timing belt cover, Oil pump, Oil gallery, Oil strainer and water pump
Crankcase, Oil Pan, Timing Belt Tensioner, Timing Pulley, Timing Belt Cover, Oil Pump, Oil Gallery, Oil Strainer
Connecting Rod And Water Pump
Engine Mount
