2000 Isuzu Rodeo S 2WD V6-3.2LFACTORY OEM SERVICE PROCEDURE

Engine Control Module: Service and Repair

REMOVAL PROCEDURE
1. Disconnect the negative battery cable.
2. Block the wheels.

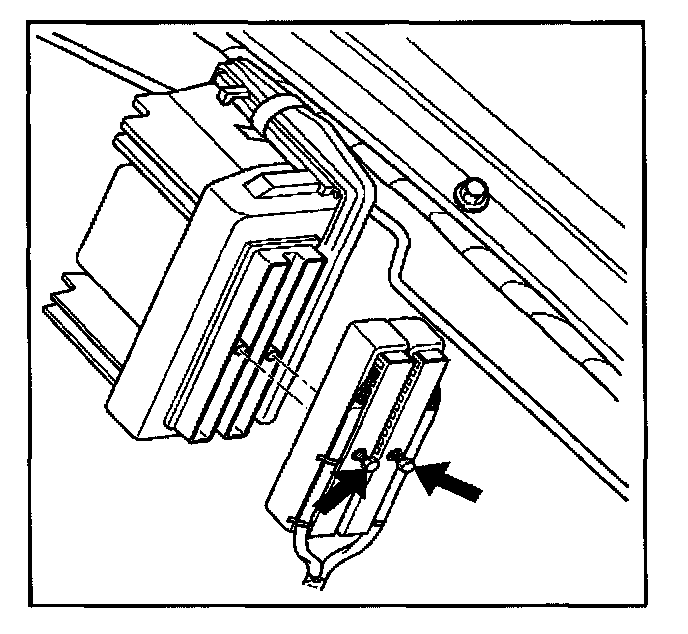

3. Remove the two screws from the PCM electrical connectors.

4. Disconnect the PCM electrical connectors.

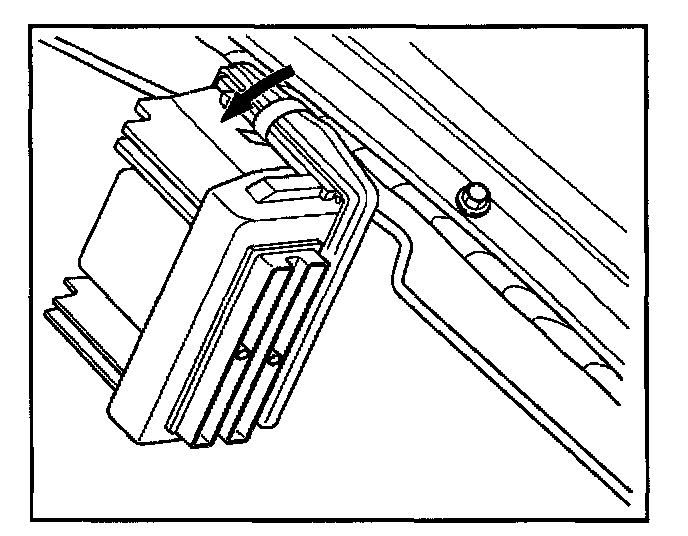

5. After removing the clip which fixes the PCM to the bracket, remove PCM.

INSTALLATION PROCEDURE

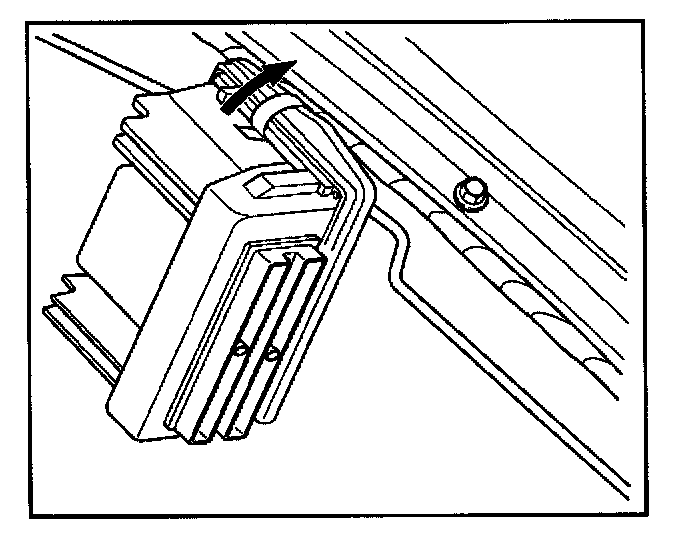

1. Install the PCM to bracket and fix with the clip.
2. Connect the PCM electrical connectors.

3. Install the two screws to PCM electrical connectors.
