2000 Isuzu Rodeo S 2WD V6-3.2LFACTORY OEM SERVICE PROCEDURE
Engine Control Module: Diagrams
PCM 80-Way Blue Connector - Row "F1 - 20":
PCM Pinout Table, 80-Way Blue Connector - Row "F1 - 20" (F1 To F15):
PCM Pinout Table, 80-Way Blue Connector - Row "F1 - 20" (F16 To F20):
PCM Pinout Table, 80-Way Blue Connector - Row "F20 - 40" (F21 To F40):
PCM 80-Way Blue Connector - Row "F41 - 60":
PCM Pinout Table, 80-Way Blue Connector - Row "F41 - 60" (F41 To F56):

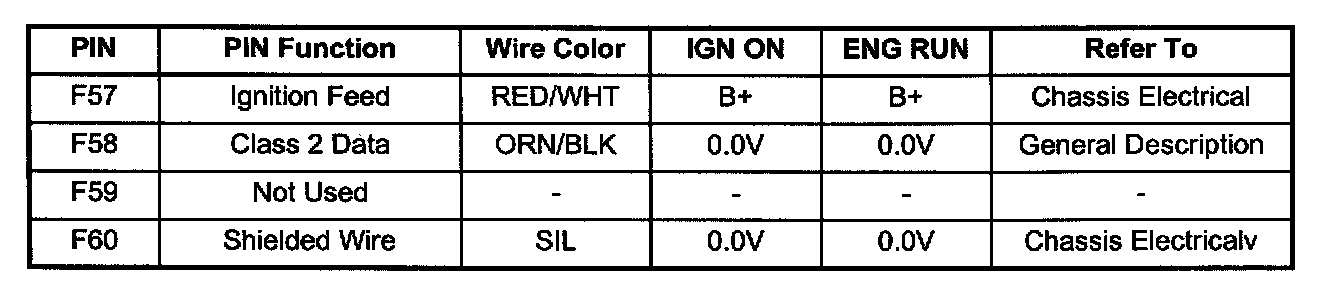

PCM Pinout Table, 80-Way Blue Connector - Row "F41 - 60" (F57 To F60):
PCM 80-Way Blue Connector - Row "F61 - 80":
PCM Pinout Table, 80-Way Blue Connector - Row "F61 - 80" (F61 To F72):
PCM Pinout Table, 80-Way Blue Connector - Row "F61 - 80" (F73 To F80):
PCM 80-Way Red Connector - Row "S1 - 20":

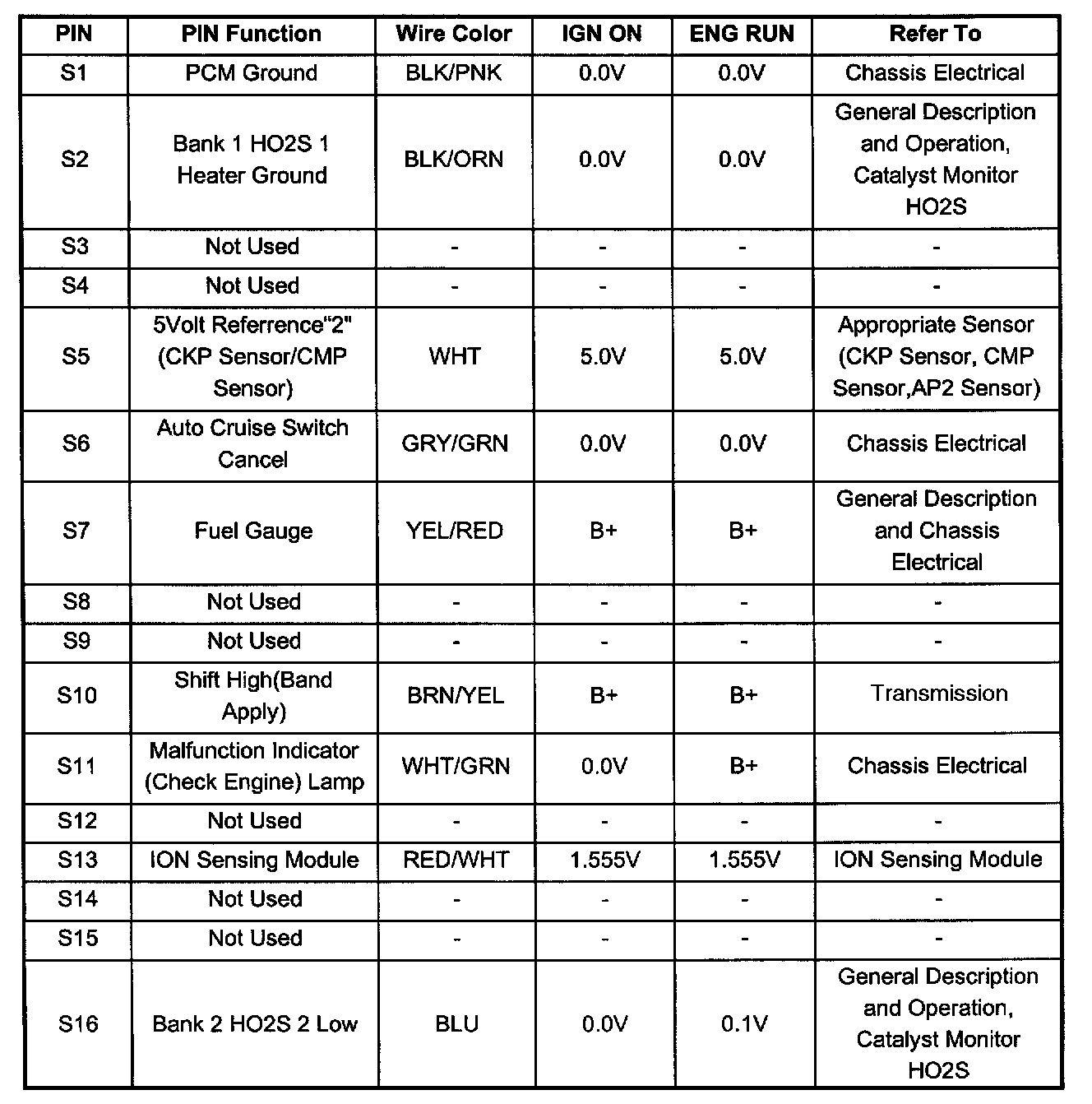

PCM Pinout Table, 80-Way Red Connector - Row "S1 - 20" (S1 To S16):
PCM Pinout Table, 80-Way Red Connector - Row "S1 - 20" (S17 To S20):
PCM 80-Way Red Connector - Row "S21 - 40":

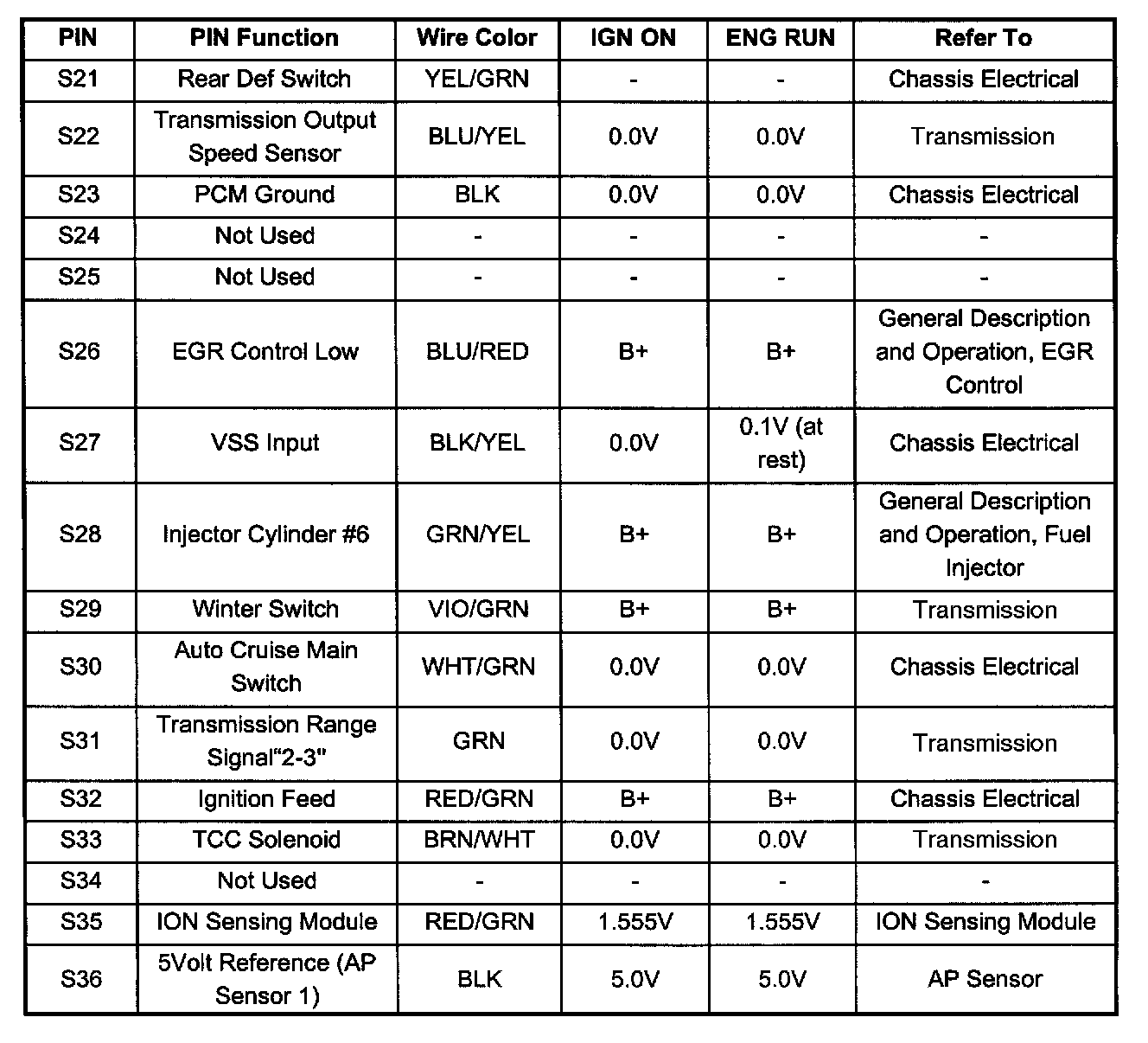

PCM Pinout Table, 80-Way Red Connector - Row "S21 - 40" (S21 To S36):
PCM Pinout Table, 80-Way Red Connector - Row "S21 - 40" (S37 To S40):
PCM 80-Way Red Connector - Row "S41 - 60":
PCM Pinout Table, 80-Way Red Connector - Row "S41 - 60" (S41 To S55):

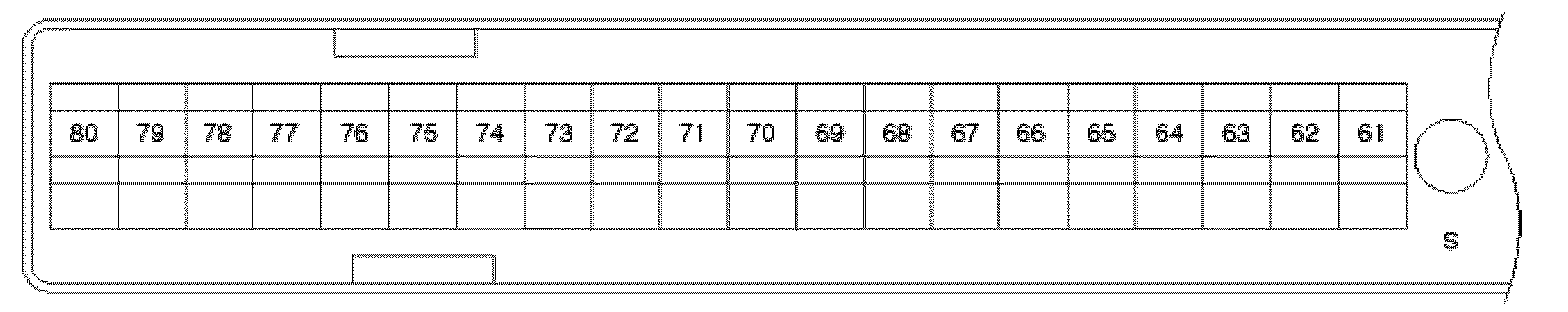

PCM 80-way Red Connector - Row "S61-80":
PCM Pinout Table, 80-way Red Connector - Row "S61-80":
