2000 Isuzu Rodeo S 2WD L4-2.2LFACTORY OEM SERVICE PROCEDURE
Engine Control Module
PCM 32 Pin Red Connector - Row "A" - View:
PCM Pinout Table, 32 Pin Red Connector - Row "A" ( Pin A1 - A14):
PCM Pinout Table, 32-Pin Red Connector - Row "A" ( Pin A15):
PCM 32 Pin Red Connector - Row "B" - View:

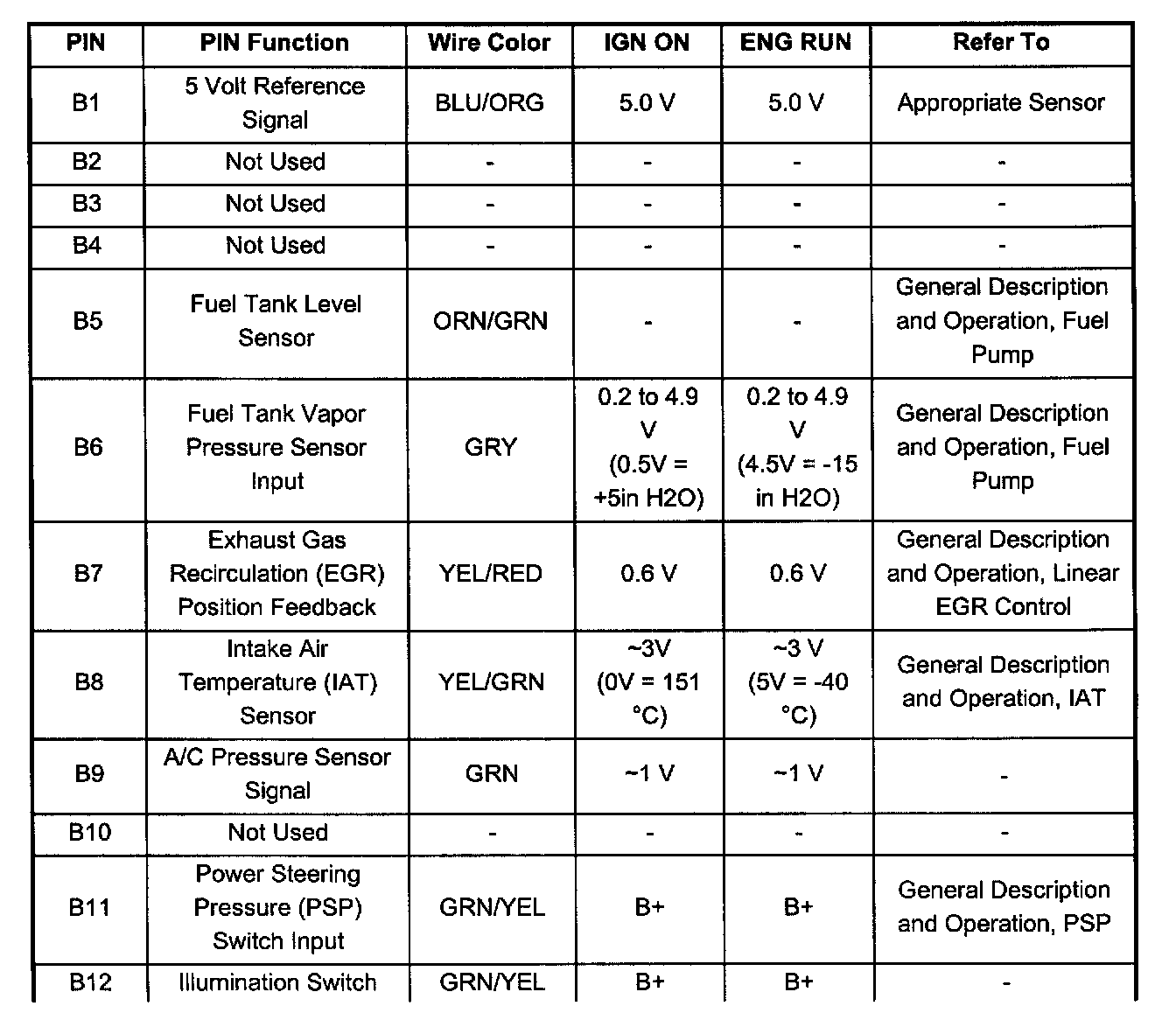

PCM Pinout Table, 32-Pin Red Connector - Row "B" ( Pin B1 - B12):
PCM Pinout Table, 32-Pin Red Connector - Row "B" ( Pin B13 - B16):
PCM 32 Pin Red Connector - Row "C" - View:
PCM 32 Pin Red Connector - Row "C" - (Pin C1 - C12):
PCM 32 Pin Red Connector - Row "C" - (Pin C13 - C16):
PCM 32 Pin Red Connector - Row "D" - View:
PCM 32 Pin Red Connector - Row "D" (Pin D1 - D15):

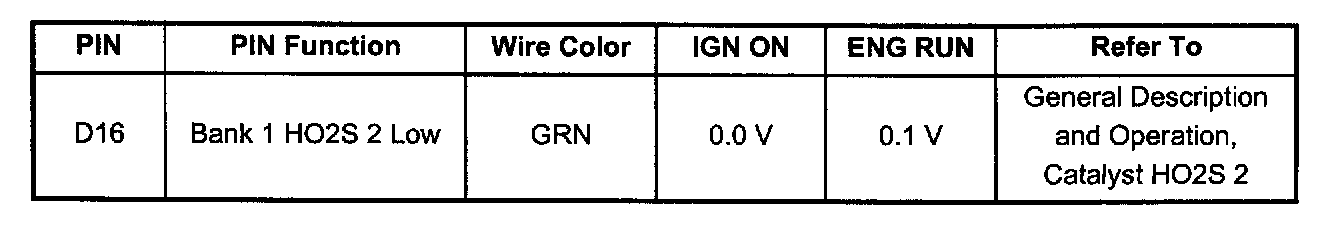

PCM 32 Pin Red Connector - Row "D" (Pin D16):

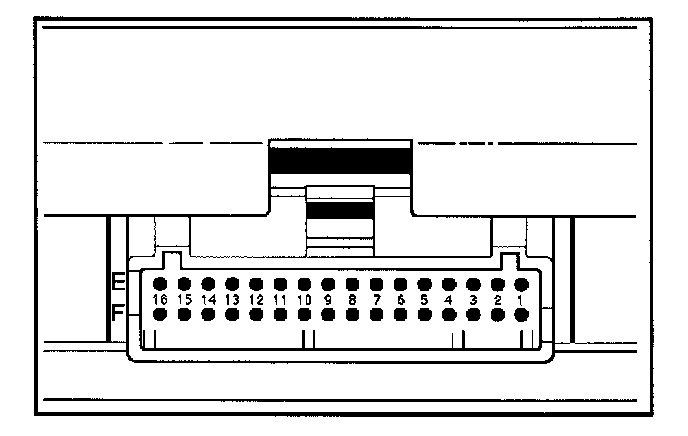

PCM 32 Pin Red Connector - Row "E" - View:
PCM 32 Pin Red Connector - Row "E" (Part E1 - E13):
PCM 32 Pin Red Connector - Row "E" (Pin E14 - E16):
PCM Pinout Table, 32 - Pin White Connector - Row "F":
