2000 Isuzu Rodeo LS 2WD V6-3.2LFACTORY OEM SERVICE PROCEDURE
Tools - Powerlink Diagnostics Interface Module
BULLETIN NUMBER:
IBO1-14-S011
ISSUE DATE:
NOVEMBER 2001
GROUP:
MISCELLANEOUS
ISUZU POWERLINK DIAGNOSTICS INTERFACE
MODULE CONNECTION
AFFECTED VEHICLES
1996 and newer Rodeo (UC), Rodeo (UE), Amigo/Rodeo Sport (UA), Trooper (UX), Vehicross (VX), Axiom (UP)
SERVICE INFORMATION

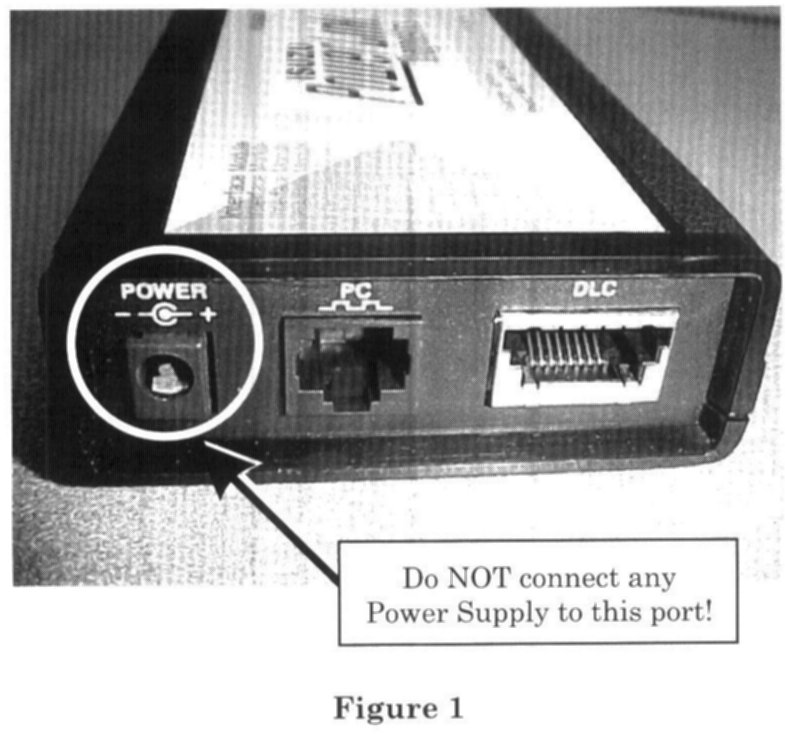

When connecting the Isuzu PowerLink Diagnostics Interface Module to a vehicle, it is important NOT to connect any power supply to the 12-volt port on the Interface Module (Figure 1). Doing so may irreparably damage the Interface Module, rendering it inoperative.

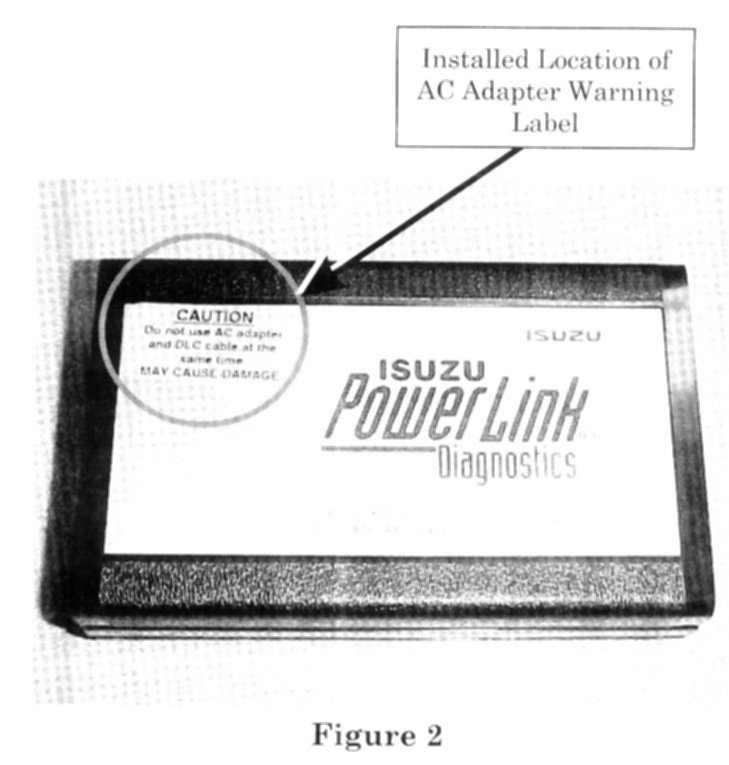

Enclosed with this bulletin is an AC Adapter warning label. This label should be affixed to the Isuzu PowerLink Diagnostics Interface Module, on the front side, upper left corner. (Figure 2)
Should your Isuzu PowerLink Diagnostics Interface Module become damaged, please contact the ITCS Hotline at (888) 482-5828.
IBO1-14-S011
ISSUE DATE:
NOVEMBER 2001
GROUP:
MISCELLANEOUS
ISUZU POWERLINK DIAGNOSTICS INTERFACE
MODULE CONNECTION
AFFECTED VEHICLES
1996 and newer Rodeo (UC), Rodeo (UE), Amigo/Rodeo Sport (UA), Trooper (UX), Vehicross (VX), Axiom (UP)
SERVICE INFORMATION
When connecting the Isuzu PowerLink Diagnostics Interface Module to a vehicle, it is important NOT to connect any power supply to the 12-volt port on the Interface Module (Figure 1). Doing so may irreparably damage the Interface Module, rendering it inoperative.
Enclosed with this bulletin is an AC Adapter warning label. This label should be affixed to the Isuzu PowerLink Diagnostics Interface Module, on the front side, upper left corner. (Figure 2)
Should your Isuzu PowerLink Diagnostics Interface Module become damaged, please contact the ITCS Hotline at (888) 482-5828.
