1999 Isuzu Rodeo LS 2WD V6-3.2LFACTORY OEM SERVICE PROCEDURE
Diagnostic Check

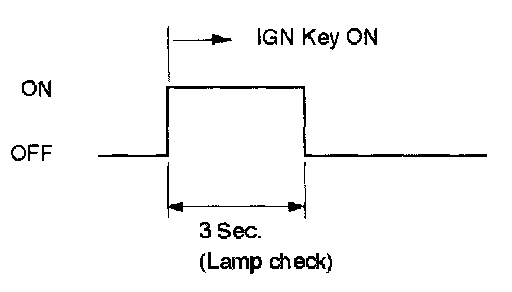

Normal:
Abnormal - DTC Stored:
This test determines if the transmission or its input, or output, connections, or sensors are failing.
1. Connect the TECH-2: GOTHROUGH TECH-2 OBD II CONNECTION.
2. Turn on the ignition but not the engine.
3. Push "F2" on TECH-2 to see the Diagnostic Trouble Code (DTC):
4. Do you have a DTC?
YES: write down all code numbers and do the DTC CHECK
NO: the DTC can not help you find the problem.
1. GOTHROUGH "CHECK TRANS" CHECK
2. IF it is flashing and the flash is 0.2 seconds ON and 0.2 seconds OFF, this means that you should have a DTC stored. Please recheck GOTO DIAGNOSTIC CHECK and if you find the same problem, replace the Powertrain Control Module (PCM).
Normal
Abnormal
