1999 Isuzu Rodeo LS 2WD V6-3.2LFACTORY OEM SERVICE PROCEDURE
Power Door Lock Control Module: Service and Repair
Disassembly and assembly of the transmitter include details of spare parts and replacement procedure for defective parts found through troubleshooting. Each part is a precise electronic components to handle with care.

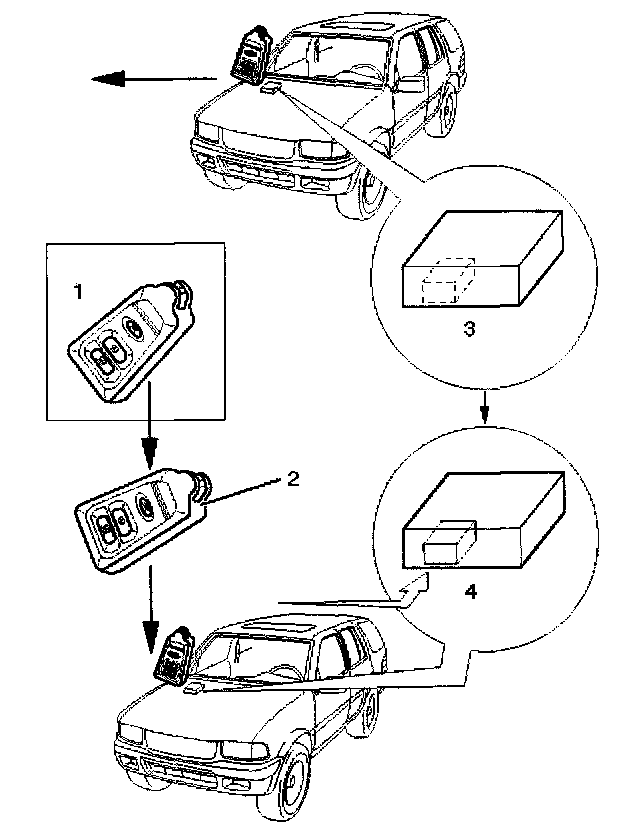

Spare Parts And Replacement Procedure For Malfunctioning Parts:
For malfunctioning transmitter:
1. Prepare a new transmitter (1).
2. Programs VAC (Vehicle Access Code) (2).
3. Check that the door lock remote control operation works (3). (4).
For malfunctioning battery:
1. Prepare new batteries (1) (Type : CR2016x2).
2. Remove the batteries from transmitter (2).
3. Install a new batteries into transmitter.
4. Check that the door lock remote control operation works.
For malfunctioning ECU:
1. Prepare a new ECU (1).
2. Remove the battery from transmitter (2).
3. Install a new ECU in the vehicle.
4. VAC (Vehicle Access Code) programs (3).
5. Check that the door lock remote control operation works.

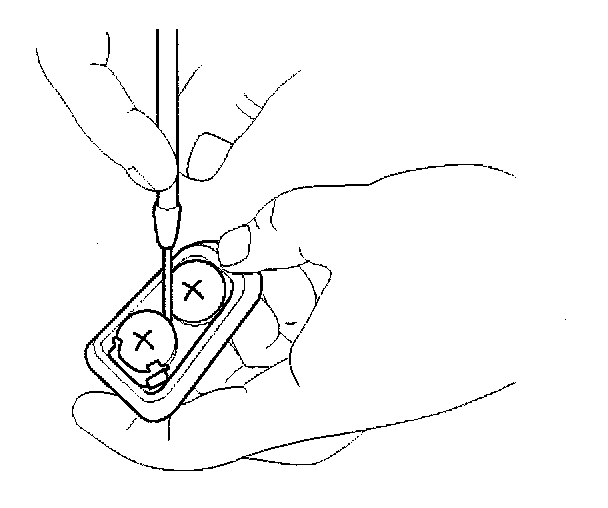

Replace Battery For Transmitter
1. Remove the batteries.
2. Set new batteries into the transmitter.
3. Install the cover to the transmitter.
Spare Parts And Replacement Procedure For Malfunctioning Parts:
For malfunctioning transmitter:
1. Prepare a new transmitter (1).
2. Programs VAC (Vehicle Access Code) (2).
3. Check that the door lock remote control operation works (3). (4).
For malfunctioning battery:
1. Prepare new batteries (1) (Type : CR2016x2).
2. Remove the batteries from transmitter (2).
3. Install a new batteries into transmitter.
4. Check that the door lock remote control operation works.
For malfunctioning ECU:
1. Prepare a new ECU (1).
2. Remove the battery from transmitter (2).
3. Install a new ECU in the vehicle.
4. VAC (Vehicle Access Code) programs (3).
5. Check that the door lock remote control operation works.
Replace Battery For Transmitter
1. Remove the batteries.
2. Set new batteries into the transmitter.
3. Install the cover to the transmitter.
