1997 Isuzu Oasis LSFACTORY OEM SERVICE PROCEDURE
Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

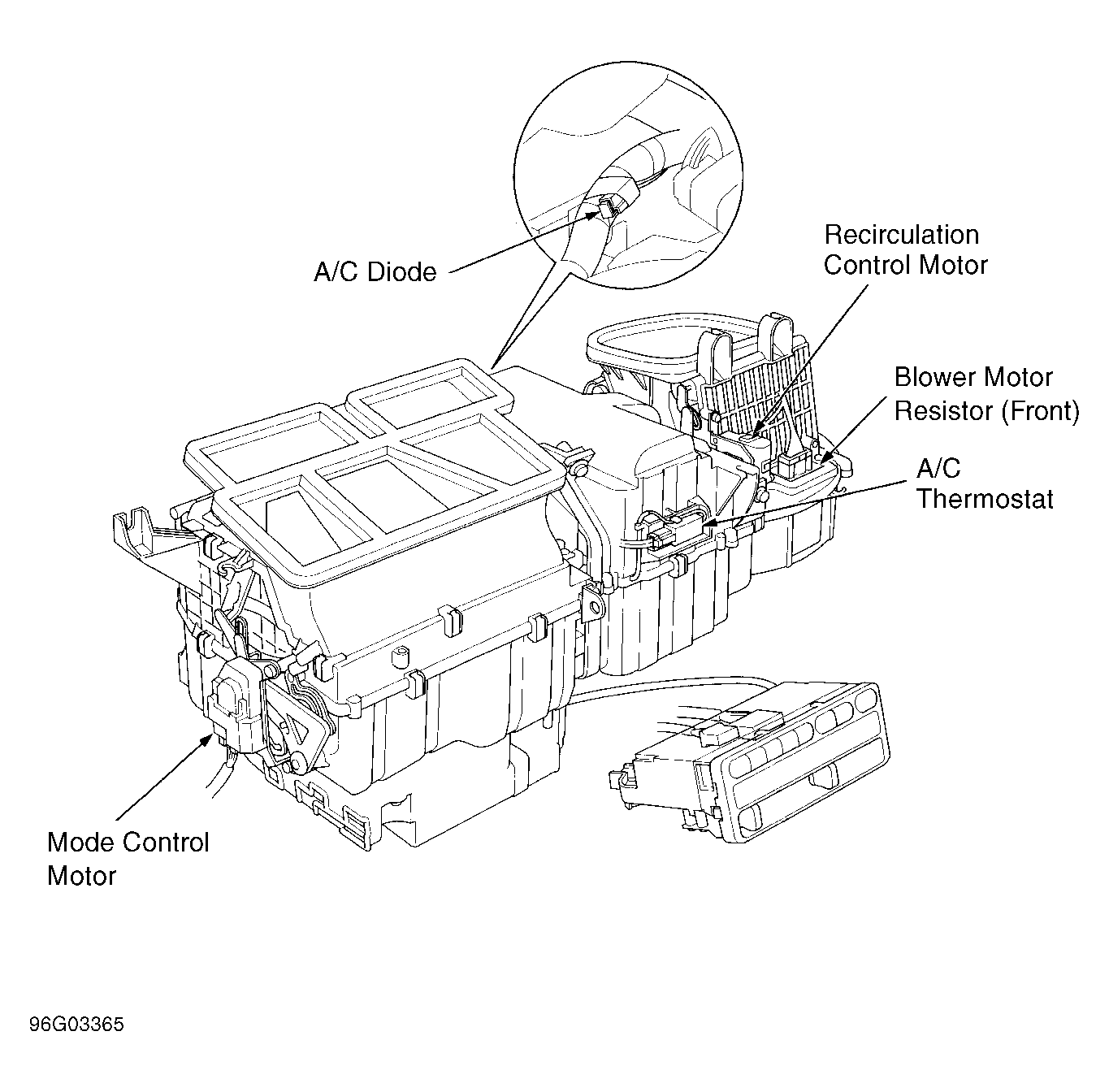

| A/C Diode | Behind glove box, taped to harness. See Figure . |
| A/T Reverse Diode | Behind dash, right of steering column, taped to harness. |
| Fog Lamp In-Line Fuse | On right front of engine compartment, on battery bracket. |
| Rear Blower Motor In-Line Fuse | On underside of ceiling, right side of rear A/C unit. |
| Security In-Line Fuse Holder | At left kick panel, taped to harness. |

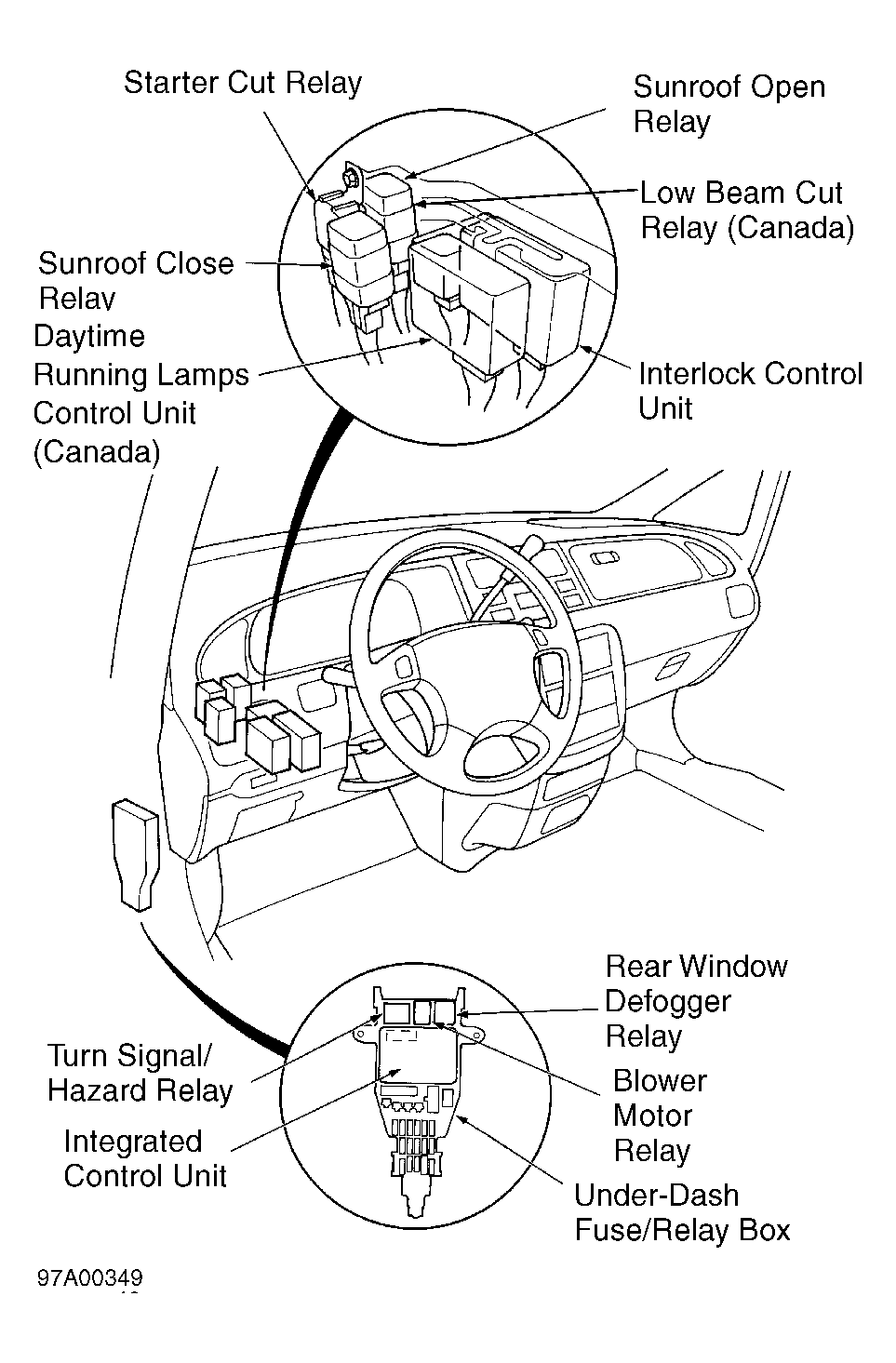

| Underdash Fuse/Relay Box | At left kick panel. See Figure . |

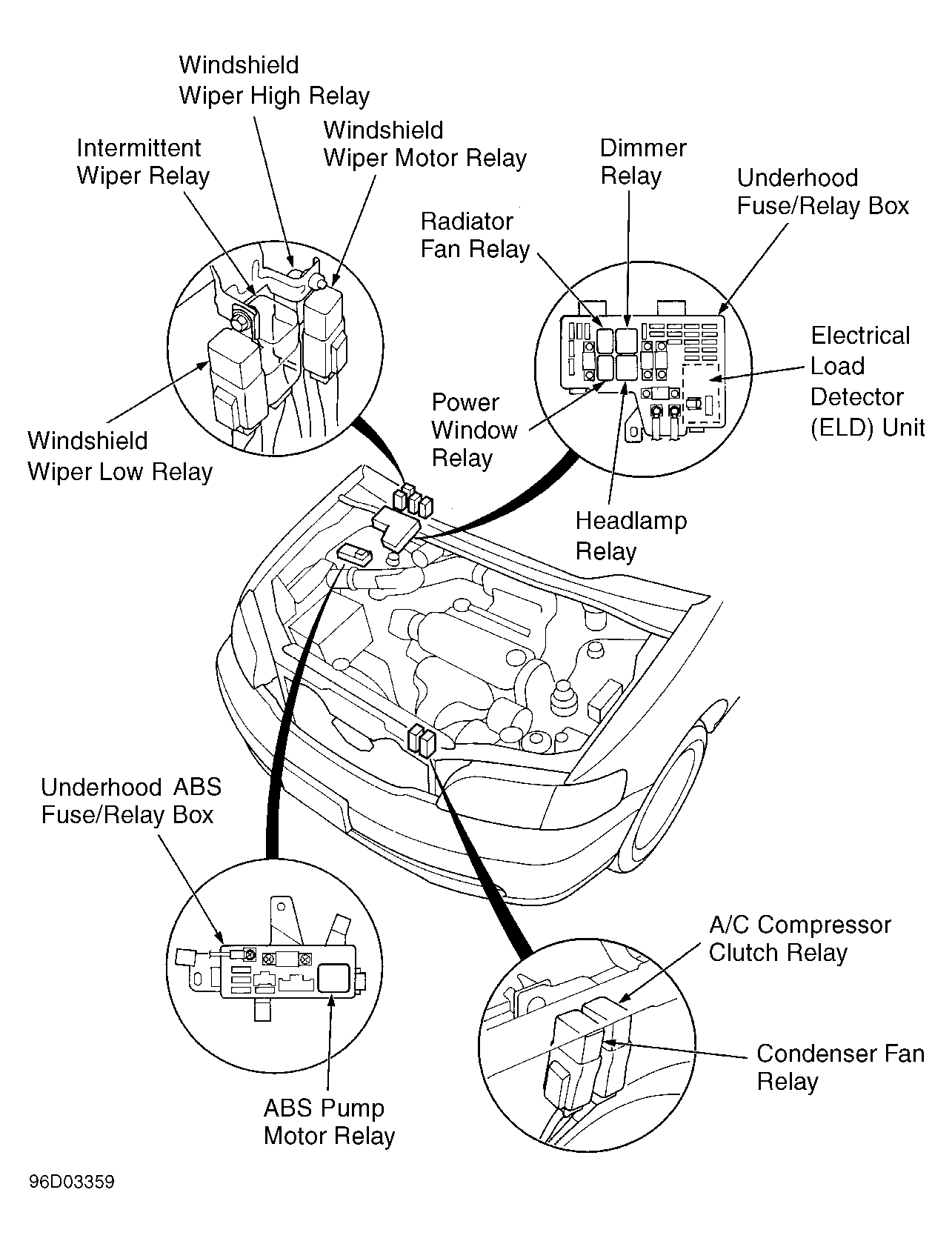

| Underhood ABS Fuse/Relay Box | On right rear of engine compartment. See Figure . |
| Underhood Fuse/Relay Box | On right rear corner of engine compartment. See Figure . |
