Passenger's Window Switch Test

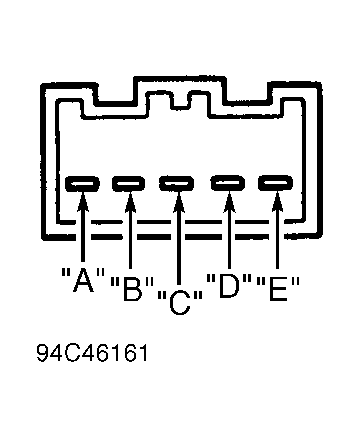

Remove power window master switch. See MASTER POWER WINDOW SWITCH under REMOVAL & INSTALLATION. Using an ohmmeter, check resistance of switch terminals with switch in indicated positions. If continuity is not as specified, replace switch. SeeFig 1 . See PASSENGER'S POWER WINDOW SWITCH TEST .
| Position | Pin Continuity |
|---|---|
| Off | B & C; D & E |
| Up | A & D; B & C |
| Down | A & C; D & E |
