Passenger Power Window Switch

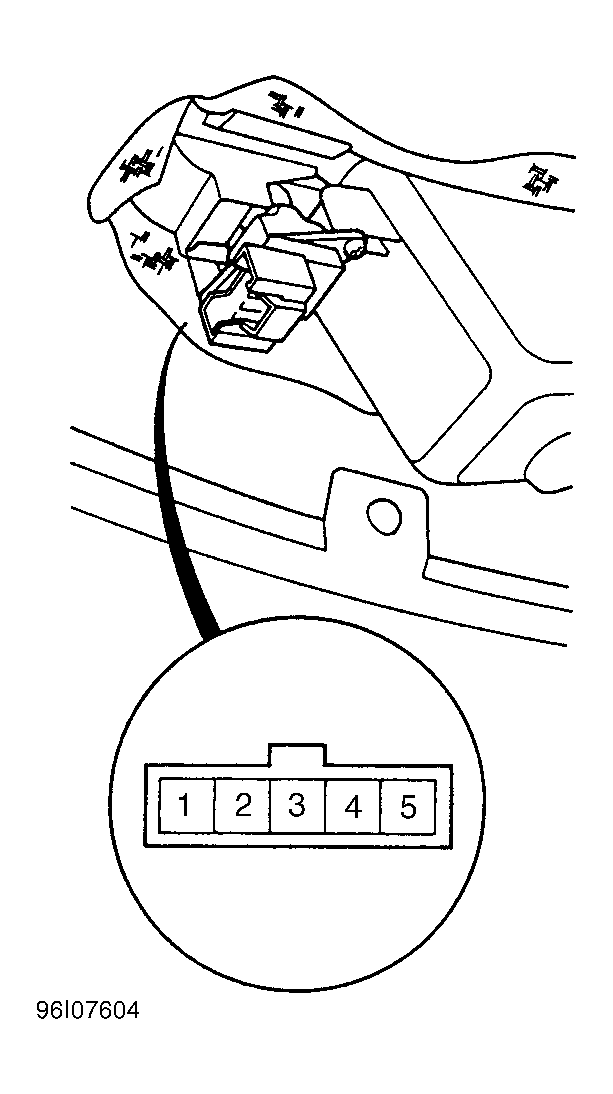

Turn ignition off. Remove suspected switch from door trim panel. Disconnect power window switch harness connector. Using an ohmmeter, check for continuity between specified switch terminals with switch in specified position. See PASSENGER'S POWER WINDOW SWITCH CONTINUITY . SeeFig 1 . If continuity is not as specified, replace switch.
| Condition | Between Terminals No. |
|---|---|
| DOWN | 1 & 3; 4 & 5 |
| OFF | 2 & 3; 4 & 5 |
| UP | 1 & 4; 2 & 3 |
