Master Power Window Switch

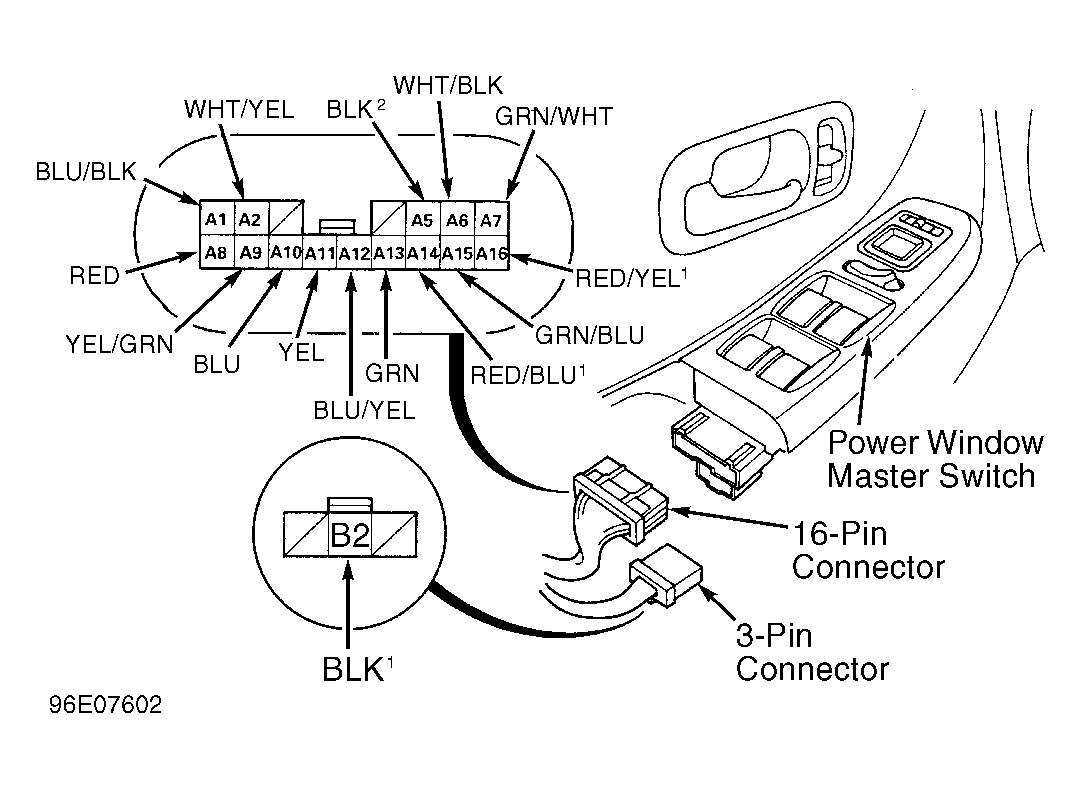

Turn ignition off. Remove master power window switch from door trim panel. Disconnect switch harness connector. Using an ohmmeter, check for continuity between specified switch terminals with switch in specified position. See MASTER POWER WINDOW SWITCH CONTINUITY . SeeFig 1 . If continuity is not as specified, replace switch.
| Condition | Between Terminals | ||
|---|---|---|---|
| Right Front | |||
| Window Lock ON | |||
| DOWN | A1 & A10; A12 & B2 | ||
| OFF | A10, A12 & B2 | ||
| UP | A1 & A12; A10 & B2 | ||
| Window Lock OFF | |||
| DOWN | A1 & A10 | ||
| OFF | A10 & A12 | ||
| UP | A1 & A12 | ||
| Left Rear | |||
| Window Lock ON | |||
| DOWN | A6 & A13; A15 & B2 | ||
| OFF | A13, A15 & B2 | ||
| UP | A6 & A15; A13 & B2 | ||
| Window Lock OFF | |||
| DOWN | A6 & A13 | ||
| OFF | A13 & A15 | ||
| UP | A6 & A15 | ||
| Right Rear | |||
| Window Lock ON | |||
| DOWN | A2 & A9; A11 & B2 | ||
| OFF | A9, A11 & B2 | ||
| UP | A2 & A11; A9 & B2 | ||
| Window Lock OFF | |||
| DOWN | A2 & A9 | ||
| OFF | A9 & A11 | ||
| UP | A2 & A11 | ||
