1995 Isuzu Rodeo LS, RWDFACTORY OEM SERVICE PROCEDURE
Ignition Coil

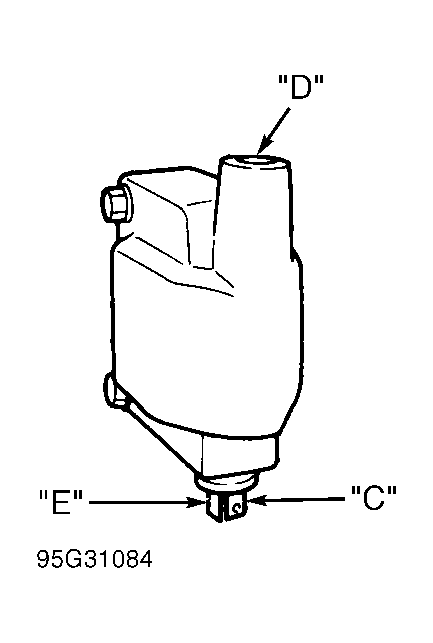

- Ensure ignition is off. Disconnect ignition coil wiring. Measure primary resistance between terminals "C" and "E". See Fig 1 . Measure secondary resistance between terminals "C" and "D". Measure insulation resistance between terminals "C" and body ground.
- Make sure resistance is within specification. Refer to the IGNITION COIL RESISTANCE (NON-HEI SYSTEMS) table. Replace coil if resistance is not within specification.
IGNITION COIL RESISTANCE (NON-HEI SYSTEMS)
| Application/Model (1) | Primary Ohms @ 68°F (20°C) | Secondary Ohms @ 68°F (20°C) | ||
|---|---|---|---|---|
| Rodeo 2.6L | .81-.99 | 7500-11,300 | ||
|
||||
