Power Window Relay

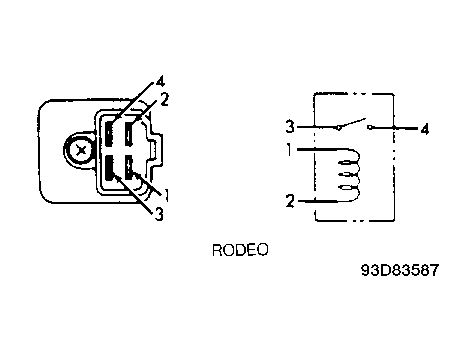

Remove power window relay (located behind right side kick panel). Using an ohmmeter, check continuity between relay terminals No. 3 and 4. SeeFig 1 . Continuity should not exist. Apply battery voltage to terminal No. 1. Ground terminal No. 2. Continuity should exist between terminals No 3 and 4. If relay does not test as described, replace relay.
