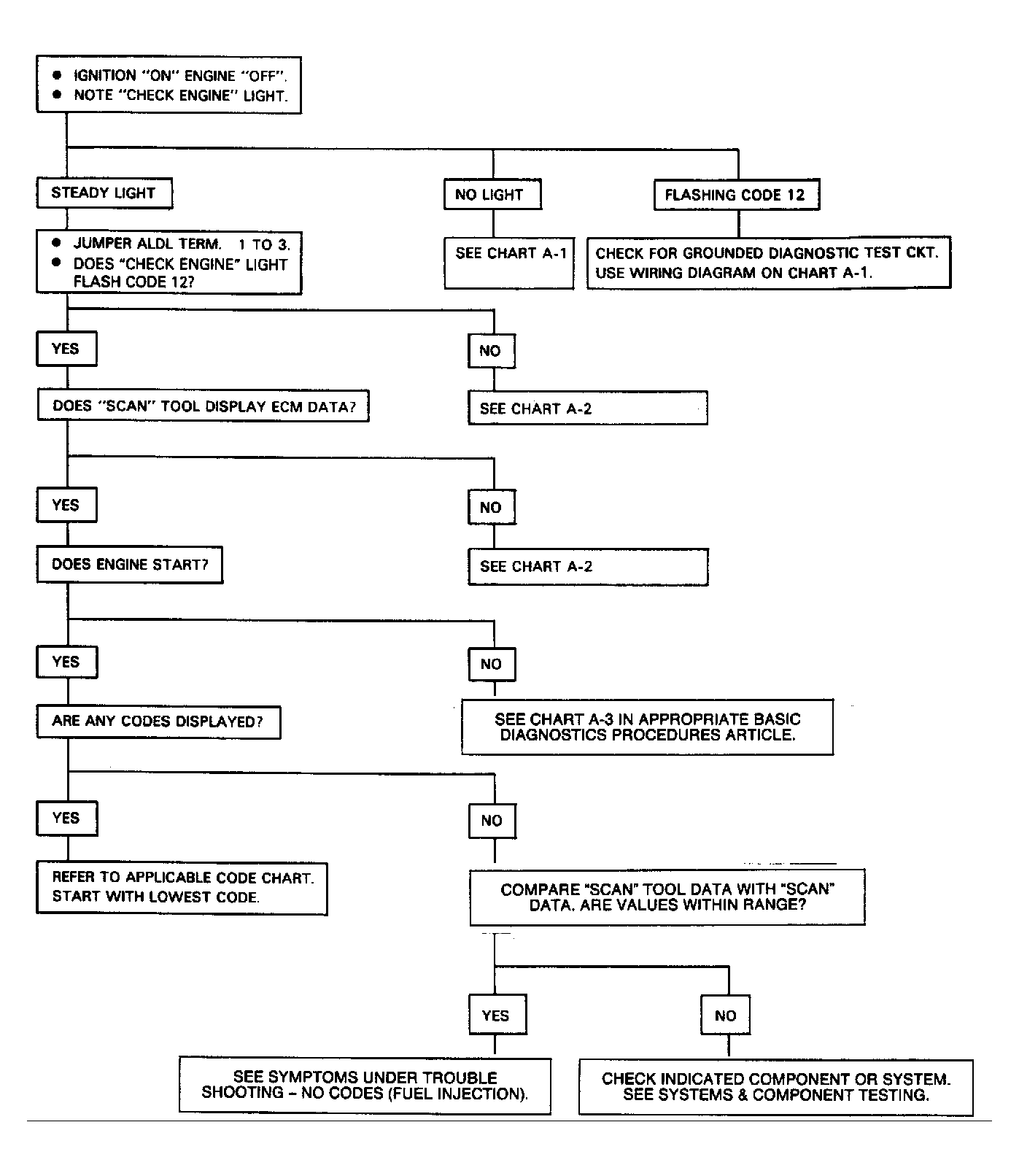

Diagnostic Circuit Check
The diagnostic circuit check will identify a problem created by an Electronic Engine Control System (EECS) malfunction. It is the starting point for diagnosis. This directs you to the next logical step in diagnosing a complaint.
After completing diagnostic circuit check and finding on-board diagnostics functioning properly with no trouble codes displayed, use SCAN DATA table for comparison. The typical values are an average of display values recorded from a properly operating vehicle, and are intended to represent a normal system display.
| Scan Position | (1) Data Value | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| A/C Clutch | Off | |||||||||
| A/C Request | No | |||||||||
| Base Pulse Width (BPW) | .8-3.0 Milliseconds | |||||||||
| Battery | 13.5-14.5 Volts | |||||||||
| Block Learn Cell | 0 | |||||||||
| Block Learn Enable | No | |||||||||
| Block Learn Memory (BLM) | 118-138 Counts | |||||||||
| Coolant Temperature | 185-221°F (85-105°C) | |||||||||
| Desired RPM | ECM Idle Command | |||||||||
| EGR Solenoid | Off | |||||||||
| EGR Temp. Signal | 0-5 Volts | |||||||||
| Engine RPM | ||||||||||
| A/T | 890-990 RPM | |||||||||
| M/T | 800-900 RPM | |||||||||
| IAC | 1-50 Counts | |||||||||
| Idle Throttle | No | |||||||||
| Integrator (INT) | 110-145 Counts | |||||||||
| MAP | (2) .5-2.0 Volts | |||||||||
| MAT Temperature | (3) 50-194°F (10-90°C) | |||||||||
| Open/Closed Loop | Closed Loop (Open w/Extended Idle) | |||||||||
| O2 Sensor | (4) 100-900 Millivolts | |||||||||
| Park/Neutral Switch | P/N | |||||||||
| Power Steering Switch | Normal | |||||||||
| Shift Light (M/T) | Off | |||||||||
| Spark Advance | Varies | |||||||||
| Throttle Angle (%) | 0 | |||||||||
| TPS | .4-1.25 Volts | |||||||||
| Vehicle Speed | 0 | |||||||||
|
||||||||||
