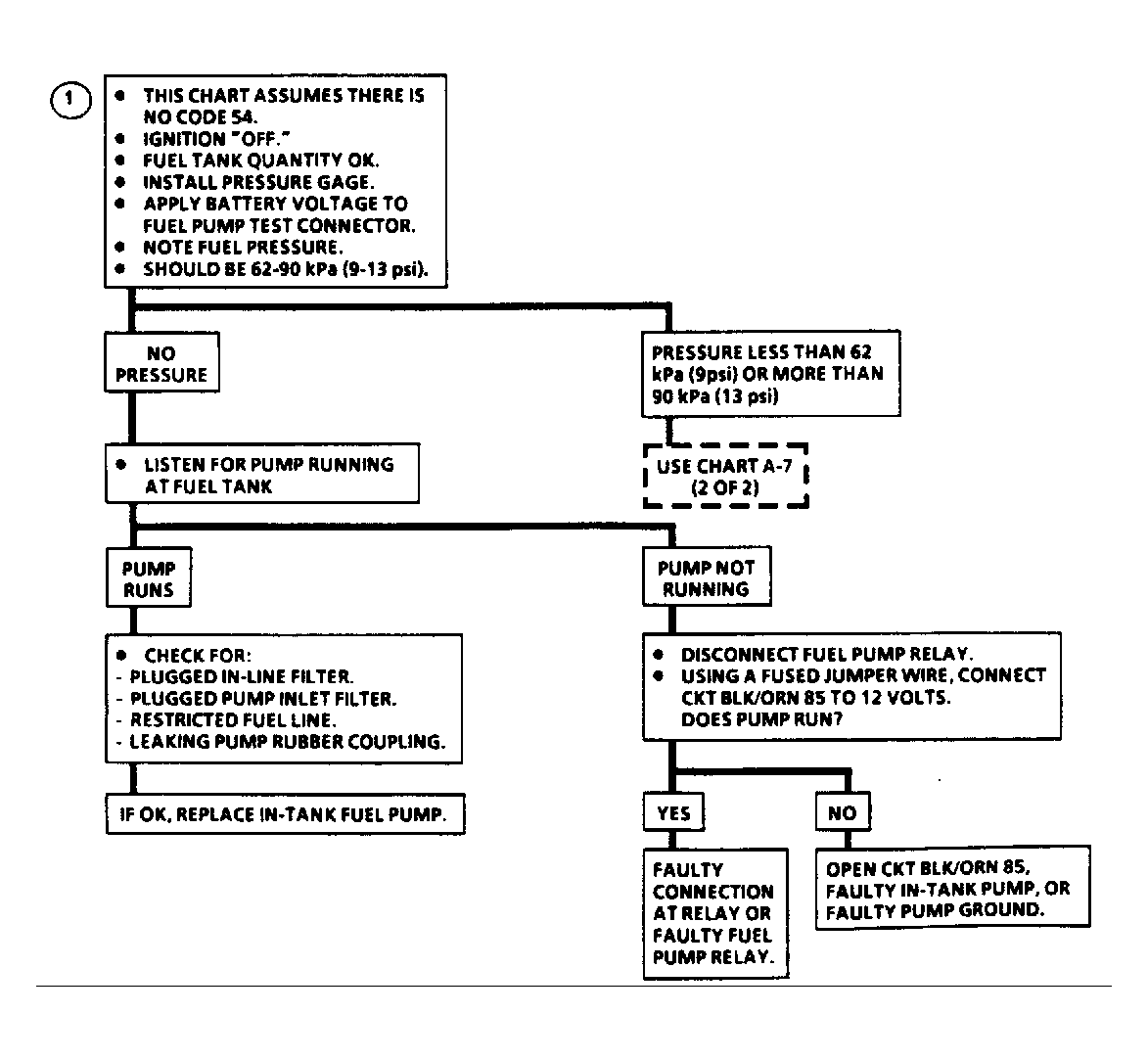

Chart A7, Fuel System Diagnosis: Notes
If there are no RPM reference pulses, the ECM will shut off the fuel pump within 2 seconds after the key is turned on. The fuel pump test terminal is located in the left side of the engine compartment. When the engine is stopped, pump can be turned on by applying battery voltage to the test terminal.
- Fuel pressure should be noted while fuel pump is running. Fuel pressure will drop immediately after fuel pump stops running due to a controlled bleed in the fuel system.
- Low fuel pressure falls into 2 categories:
- Regulated Pressure Less Than 9 psi (62 kPa) - Amount of fuel to injectors is okay, but pressure is too low. Fuel system will be running lean and may set Code 44. Also exhibits hard starting cold and poor overall performance.
