2023 Infiniti QX55 EssentialFACTORY OEM SERVICE PROCEDURE

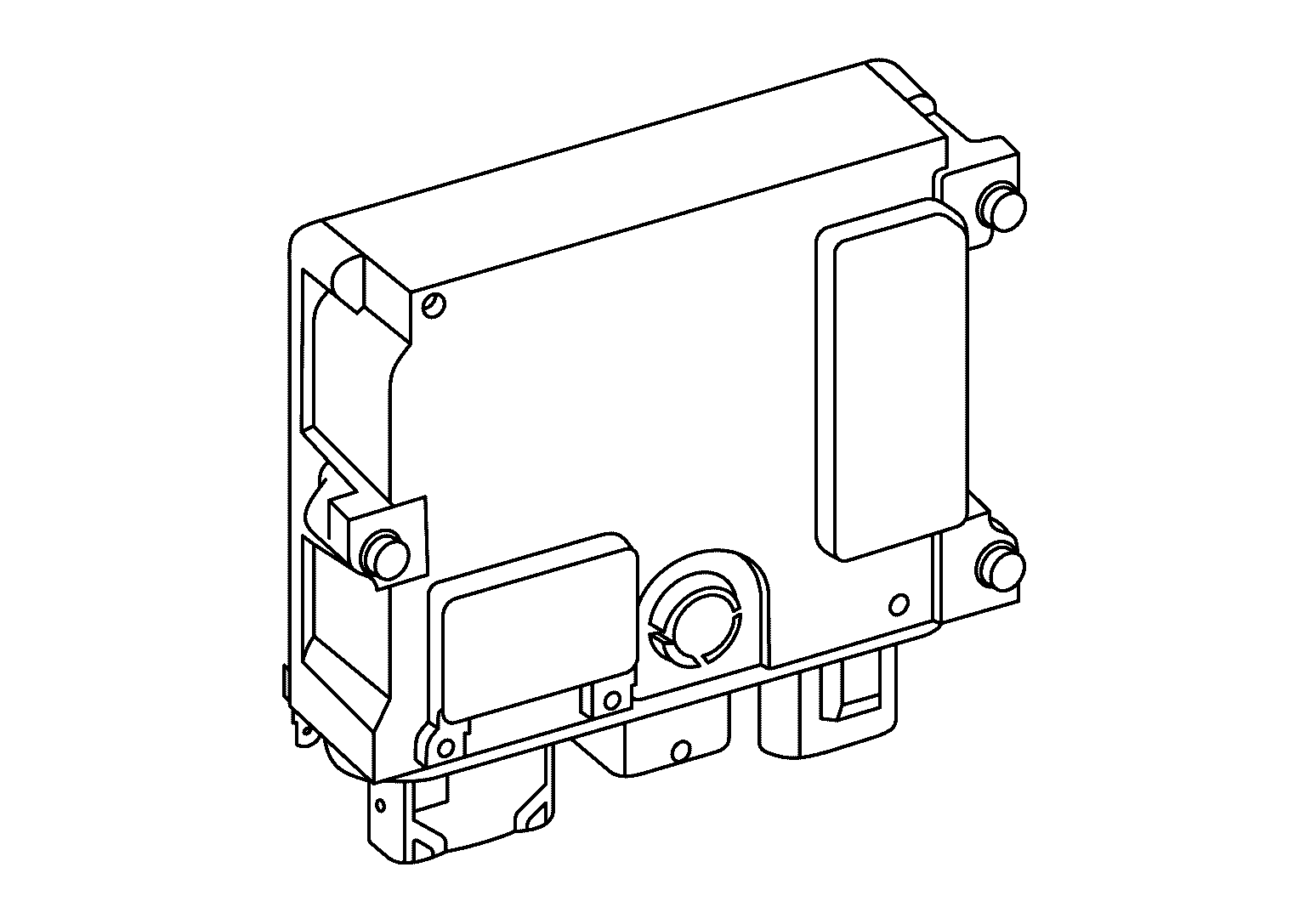

Steering Angle Main Control Module
- Calculates the optimum control variable for steering angle main motor from input values of force motor angle sensor, main motor angle sensor, and vehicle speed signal for controlling the steering angle main motor.
- Steering angle main control module changes the steering gear ratio based on the drive mode select signal from chassis control module.
- Quickly switches the control after a malfunction occurs according to synchronous control using FlexRay communication.
- When transferring to EPS mode, this calculates the optimum control variable for steering angle sub motor from input values of steering torque sensor to control steering angle sub motor (Torque assist control).
