2023 Infiniti QX55 EssentialFACTORY OEM SERVICE PROCEDURE
Removal and Installation: Installation
CAUTION:
- Perform additional service when replacing control module. Refer to Description .
- When off-center is bigger than 120 deg., refer to Diagnosis Procedure to correct off-center before performing the work.
Note the following, and install in the reverse order of removal.

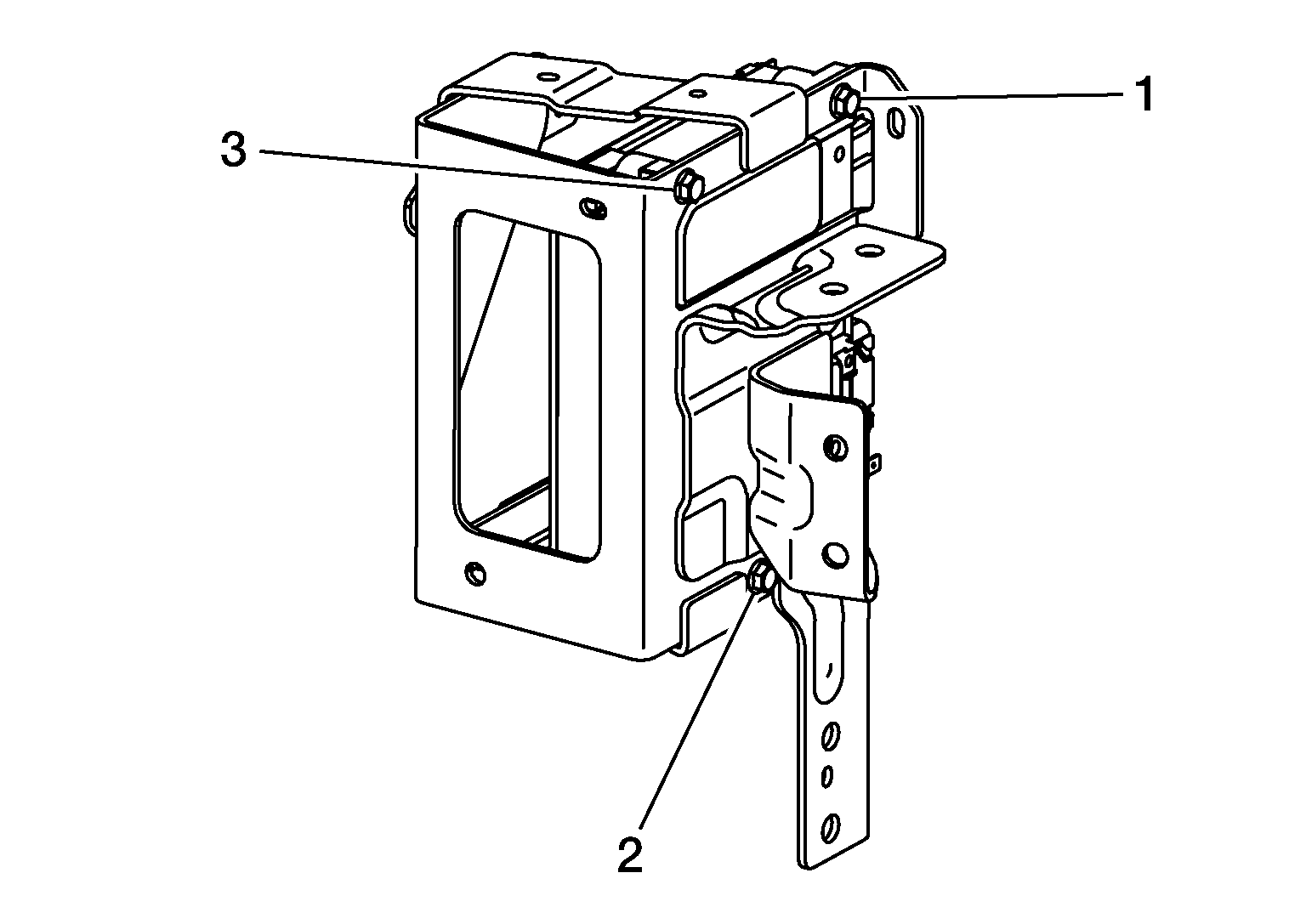

- Temporarily tighten bolts in sequence shown.
- Torque to specification in reverse order.
|
(Bolts) |
: 6.4 N.m (0.65 kg-m, 57 in-Ib) |
