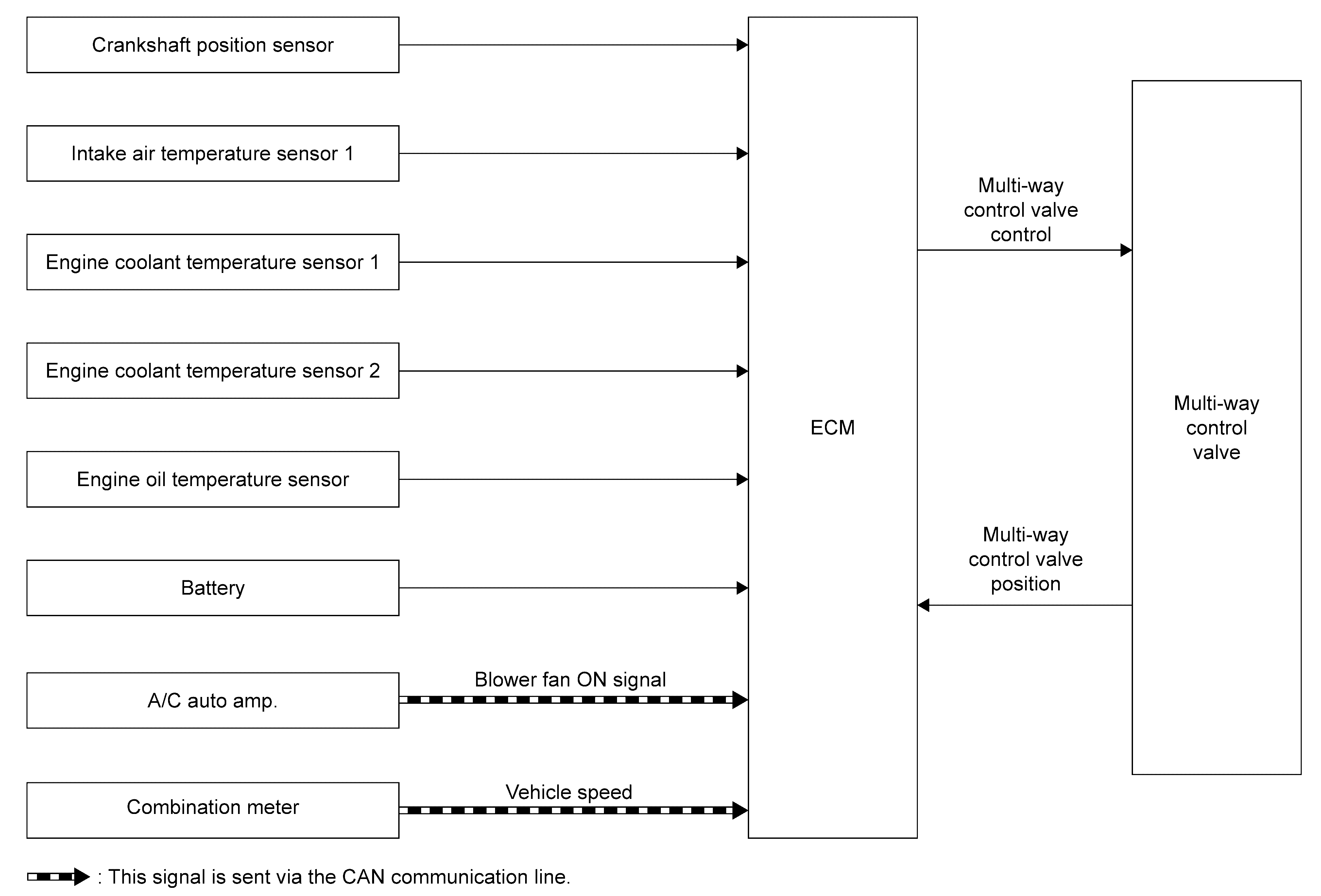

System Diagram
|
Component parts |
Function |
|
Crankshaft position sensor |
|
|
Mass Air Flow Sensor (With Intake Air Temperature Sensor 1) |
|
|
Engine Coolant Temperature Sensor 1 |
|
|
Engine Coolant Temperature Sensor 2 |
|
|
Engine Oil Temperature Sensor |
|
|
Battery |
ECM receives the battery voltage signal. |
|
A/C auto amp. |
|
|
Combination meter |
ECM receives the vehicle speed signal via CAN communication. |
|
ECM |
|
|
Multi-way Control Valve |
