2023 Infiniti QX55 EssentialFACTORY OEM SERVICE PROCEDURE

Intake Manifold Runner Control Valve Motor

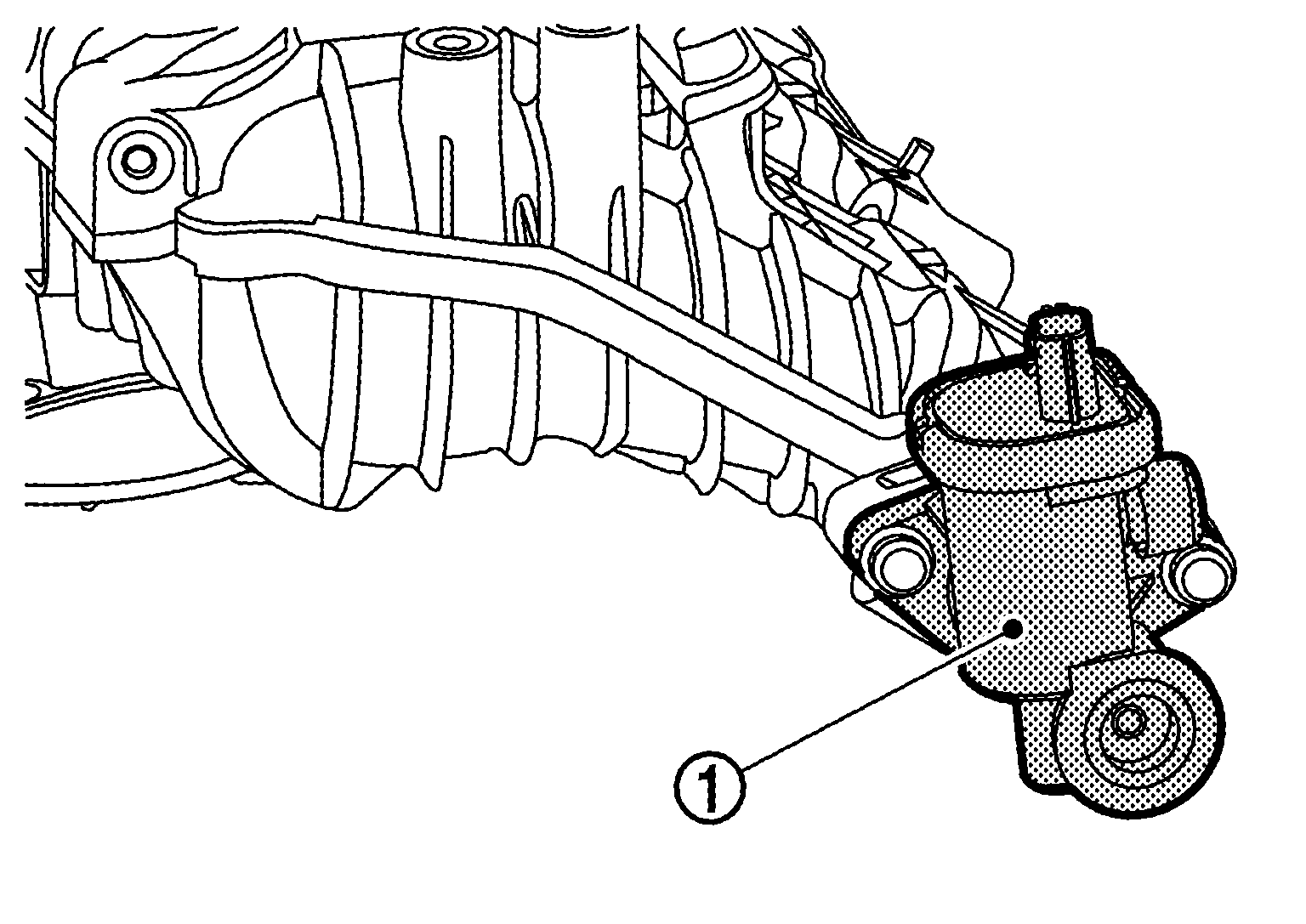

Intake manifold runner control valve motor SYMBOL is connected to the rear end of the valve shaft.

GNSDB38987Courtesy of NISSAN NORTH AMERICA, INC.

The motor opens or closes the valve by the output signal of the ECM.
