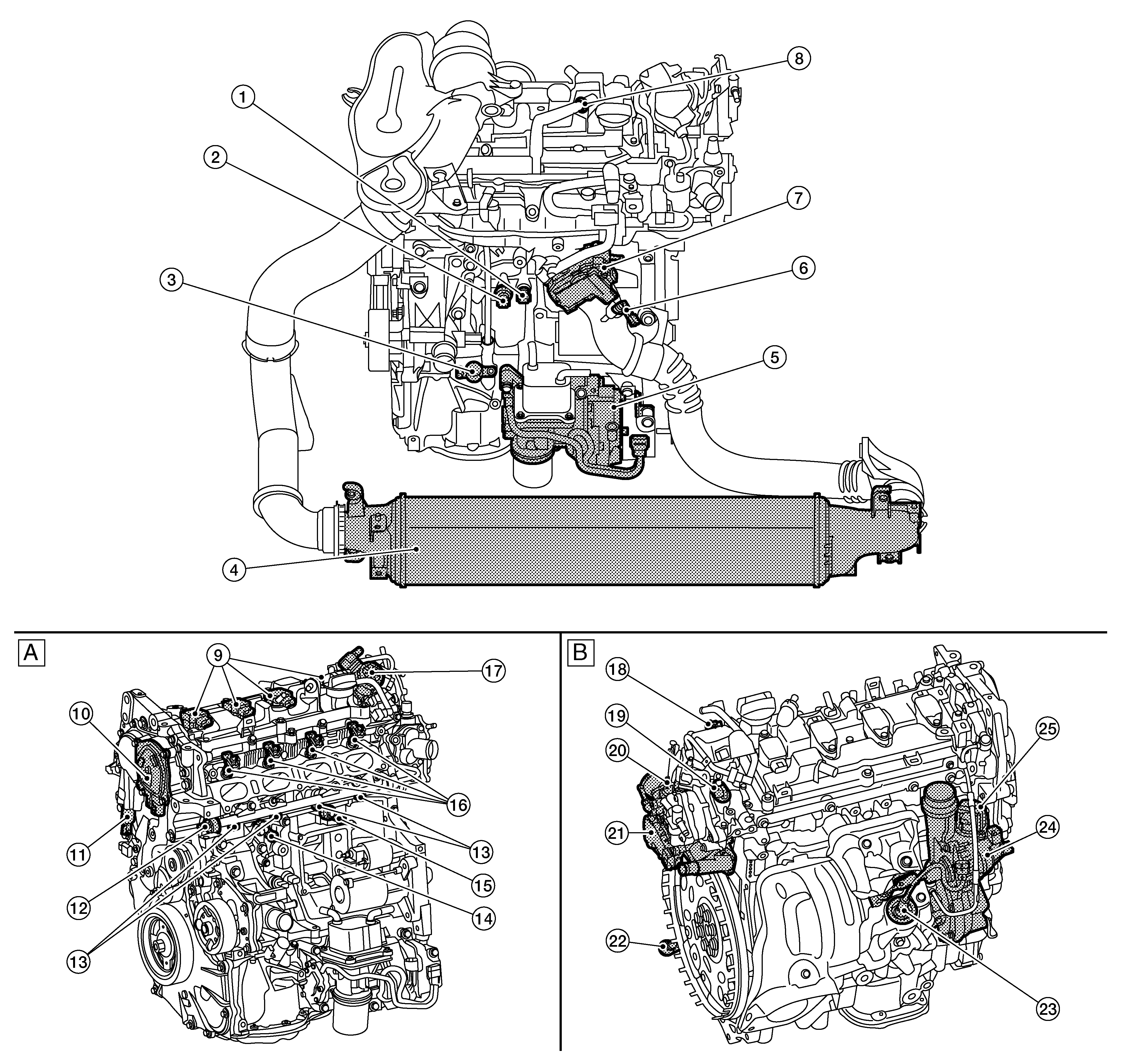

Engine Compartment
|
|
Cylinder block left side |
|
Cylinder block right side |
||
|
|
Engine oil temperature sensor |
|
Engine oil pressure sensor |
|
Engine oil pressure control solenoid valve |
|
|
Charge air cooler |
|
VCR actuator |
|
Turbocharger boost sensor (with intake air temperature intake air sensor 2) |
|
|
Electric throttle control actuator |
|
PCV valve |
|
Ignition coil (with power transistor) |
|
|
Electric intake valve timing control actuator |
|
Exhaust valve timing control solenoid valve |
|
Fuel rail pressure sensor |
|
|
Direct fuel injector |
|
Knock sensor 1 |
|
Knock sensor 2 |
|
|
Port fuel injector |
|
High pressure fuel pump |
|
Intake camshaft position sensor |
|
|
Exhaust camshaft position sensor |
|
Engine coolant temperature sensor 1 |
|
Multi-way control valve |
|
|
Crankshaft position sensor |
|
Air fuel ratio (A/F) sensor 1 |
|
Electric wastegate control actuator |
|
|
Turbocharger bypass control valve |
||||
