Commercial Service Tools
|
Tool name (TechMate No.) |
Description |
|
|

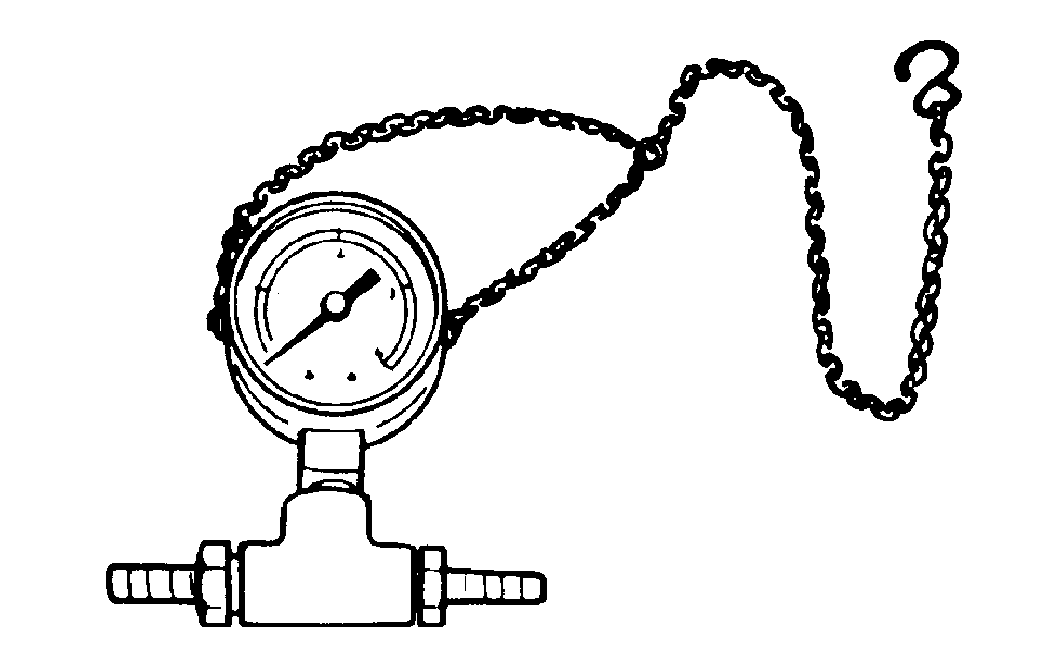

Fuel pressure gauge (--) |
Measuring fuel pressure |
|
|

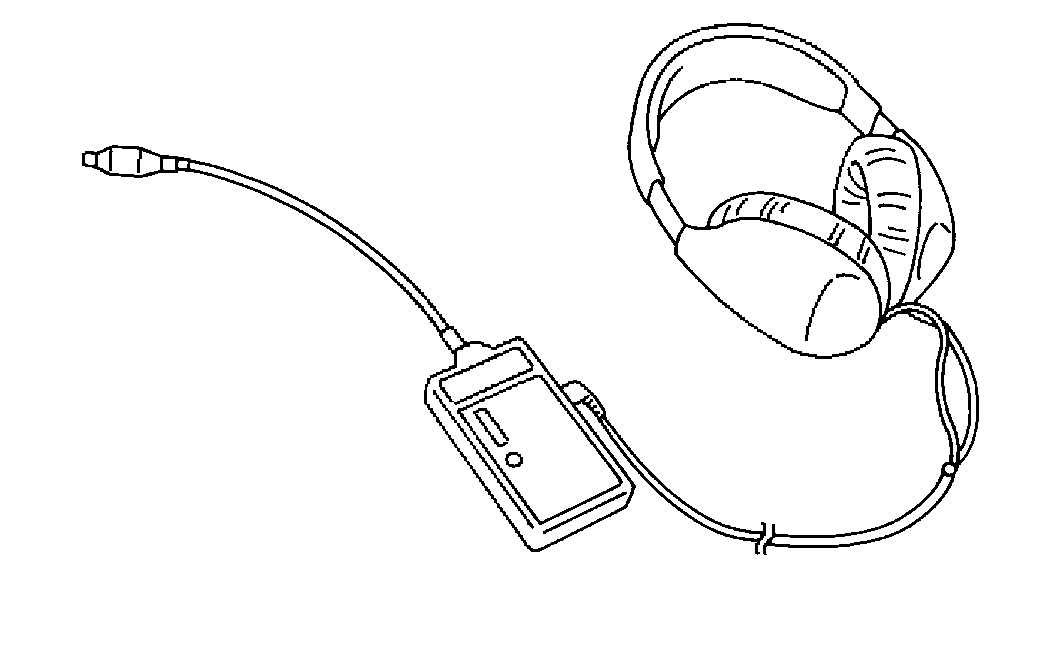

Leak detector i.e.: (J-41416) |
Locates the EVAP leak |
|
|

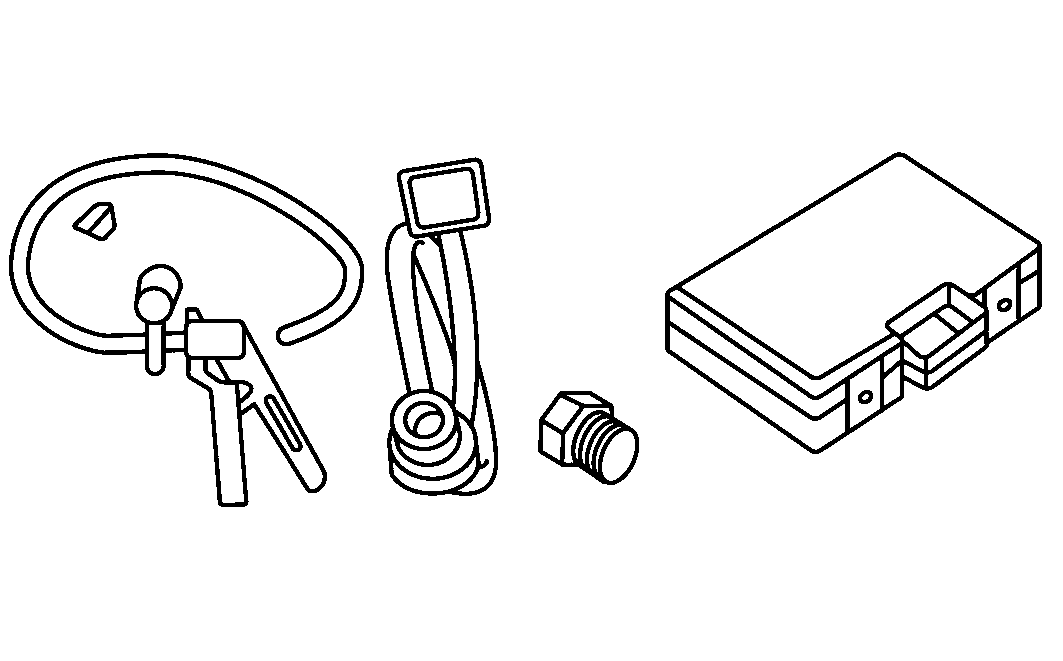

EVAP service port adapter i.e.: (J-41413-OBD) |
Applies positive pressure through EVAP service port |
|
|

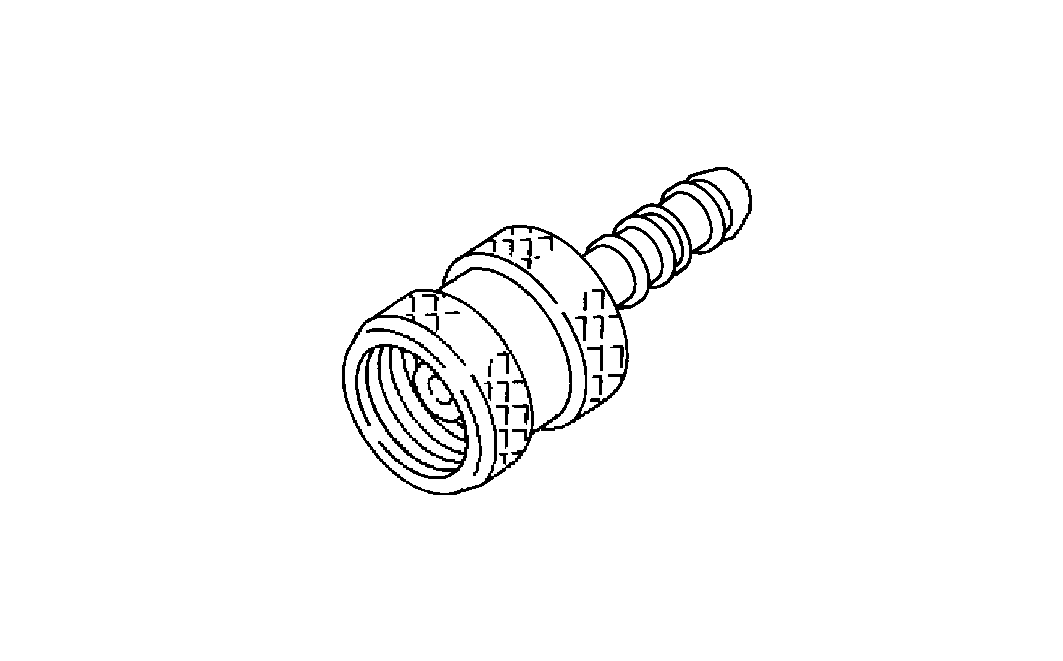

Fuel filler cap adapter i.e.: (J-42909) |
Checks fuel tank vacuum relief valve opening pressure |
|
|

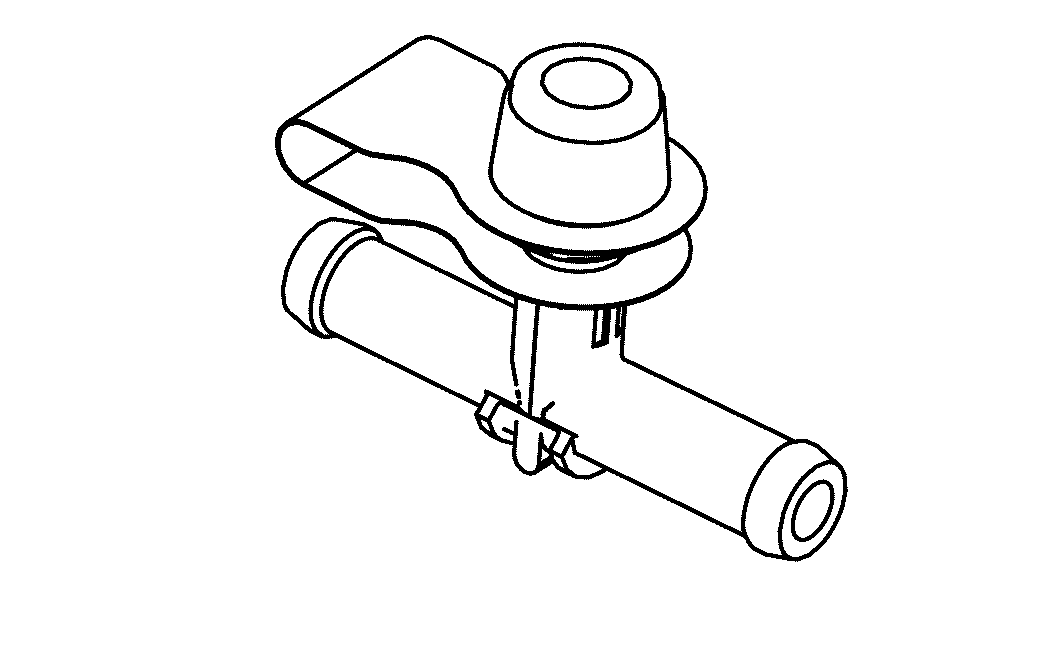

EVAP service port |
Connects pressure pump to EVAP line (Par No. 149393S500)
NOTE:
This tool is used if the vacuum delay valve does not have EVAP service port.
|
|
