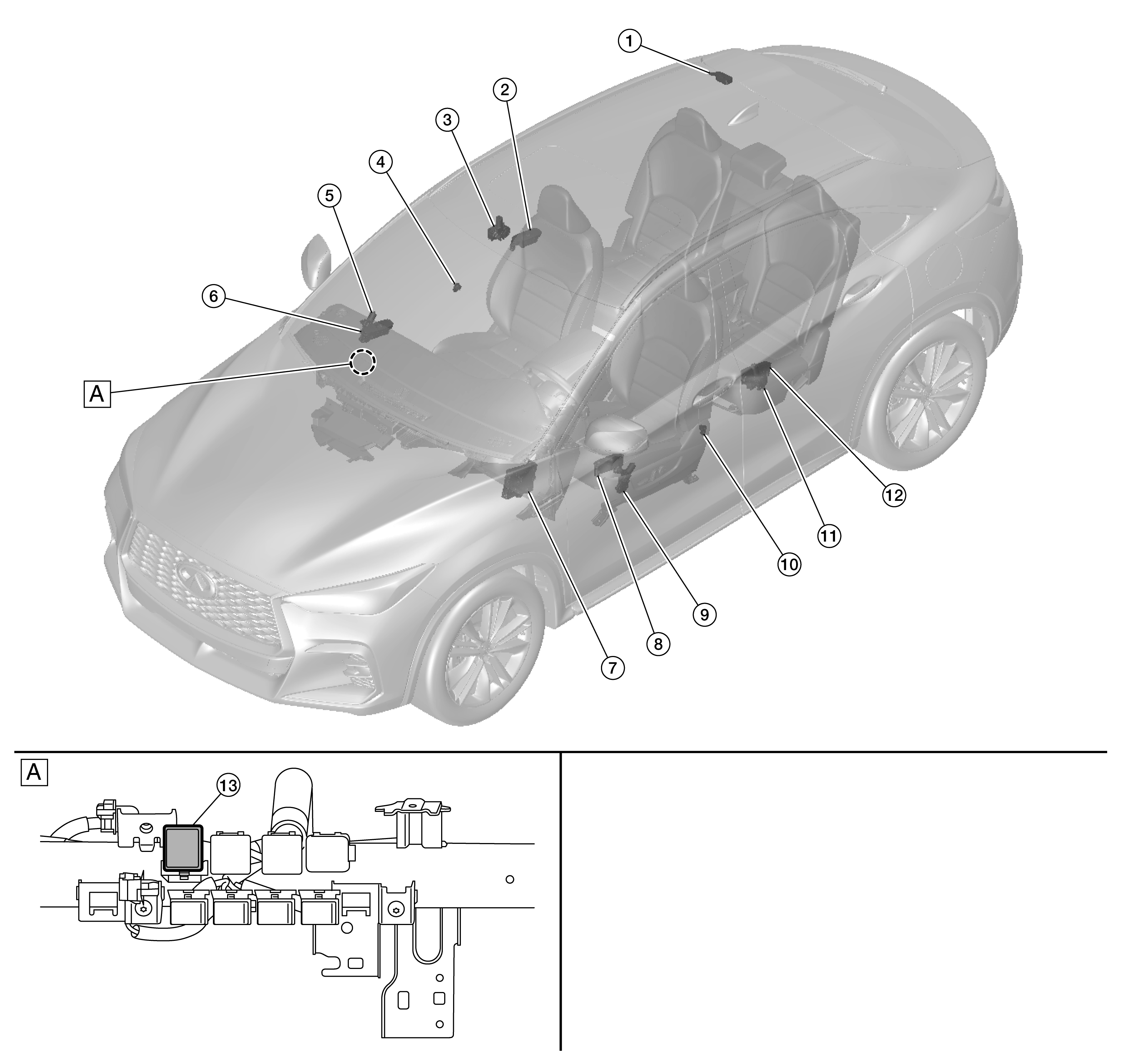

Component Location
|
A. |
Behind RH side of instrument panel (view with instrument panel removed) |
|
No. |
Component |
Function |
|
1. |
Remote keyless entry receiver |
Receives key ID signal from the Intelligent Key, and then transmits to BCM. Refer to Remote Keyless Entry Receiver . |
|
2. |
Rear power window switch RH |
Refer to Rear Power Window Switch LH/RH . |
|
3. |
Rear power window motor RH |
Refer to Power Window Motor . |
|
4. |
Front door switch RH |
Detects door open/close condition and transmits to BCM. Refer to Front Door Switch . |
|
5. |
Front power window motor RH |
Refer to Power Window Motor . |
|
6. |
Power window and door lock/unlock switch RH |
Refer to Power Window And Door Lock/Unlock Switch RH . |
|
7. |
BCM (Body Control Module) |
Refer to Component Location for detailed component location. |
|
8. |
Main power window and door lock/unlock switch |
|
|
9. |
Front power window motor LH |
Refer to Power Window Motor . |
|
10. |
Front door switch LH |
Detects door open/close condition and transmits to BCM. Refer to Front Door Switch . |
|
11. |
Rear power window motor LH |
Refer to Power Window Motor . |
|
12. |
Rear power window switch LH |
Refer to Rear Power Window Switch LH/RH . |
|
13. |
Power window relay |
Supplies power to power window switches, for power window motor operation. |
