2022 Infiniti QX55 EssentialFACTORY OEM SERVICE PROCEDURE
Disassembly and Assembly: Disassembly
NOTE:
Before disassembly, note the proper placement of the wires to the correct terminals and correct wire routing to the terminals.

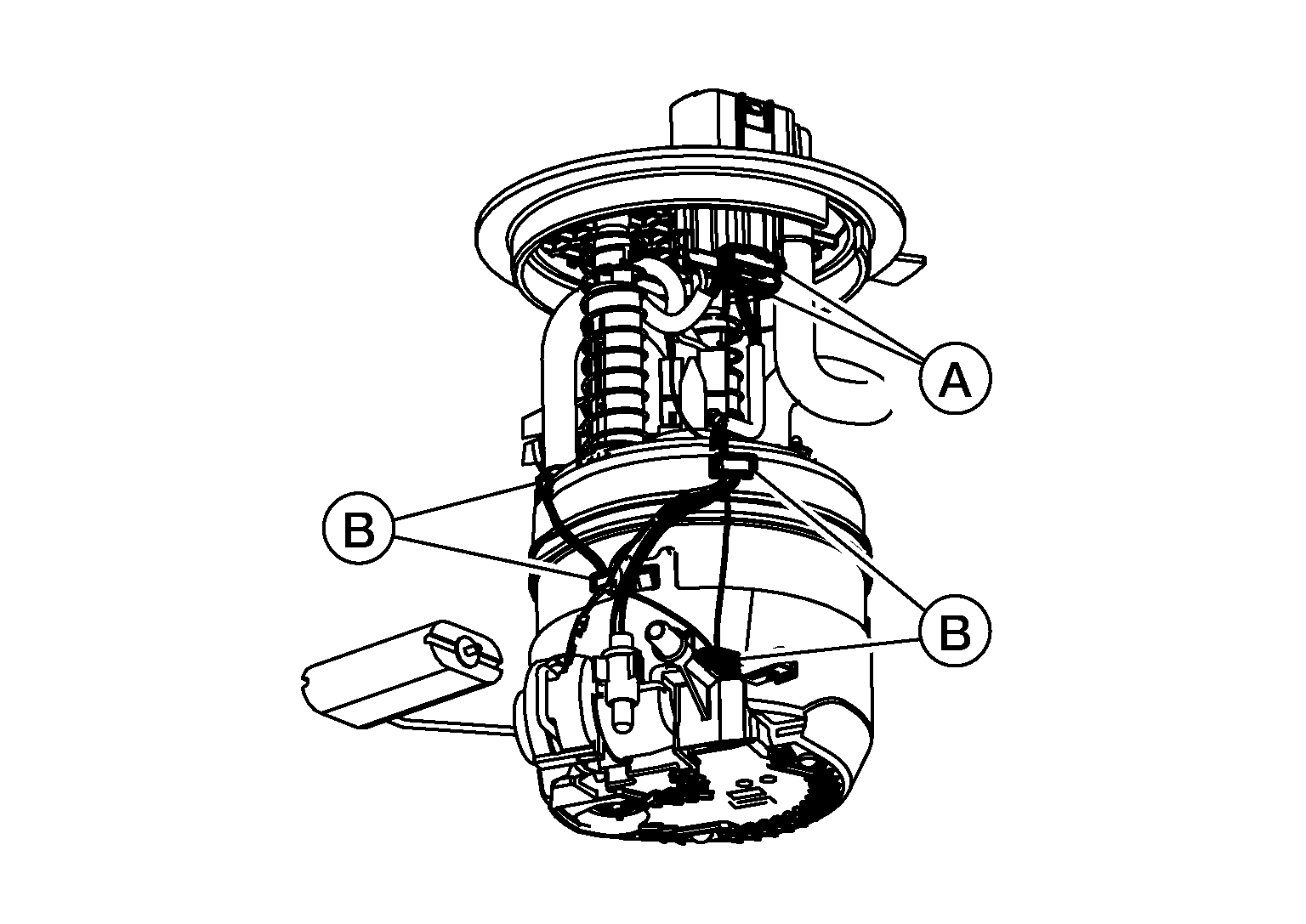

- Disconnect fuel level sensor unit and fuel tank temperature sensor harness connectors (A).
- Remove wires from wire clips (B).CAUTION: Be careful not to damage wires when removing them from wire clips.

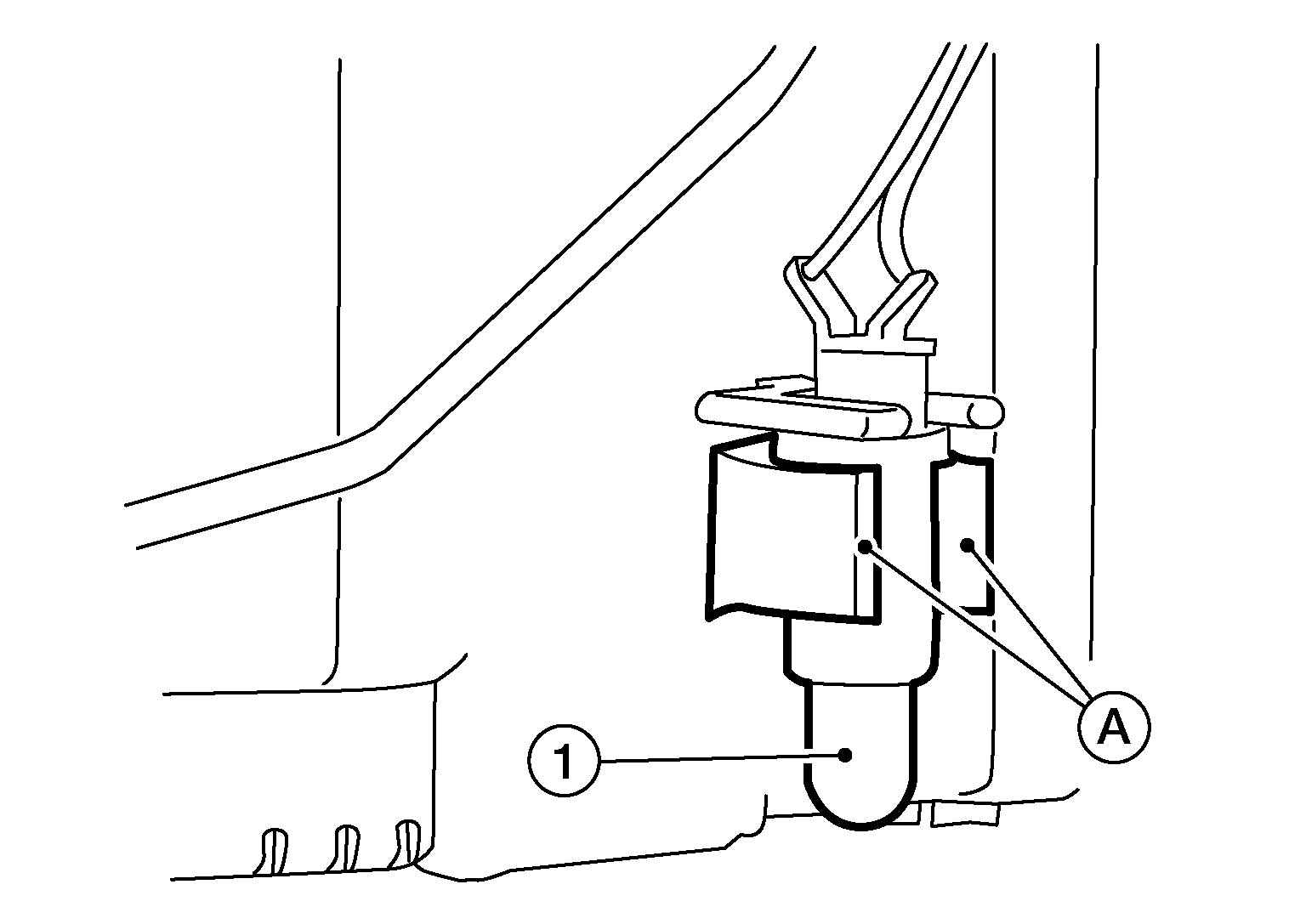

- Release clips (A), then remove fuel temperature sensor (1) from fuel filter and fuel pump assembly.

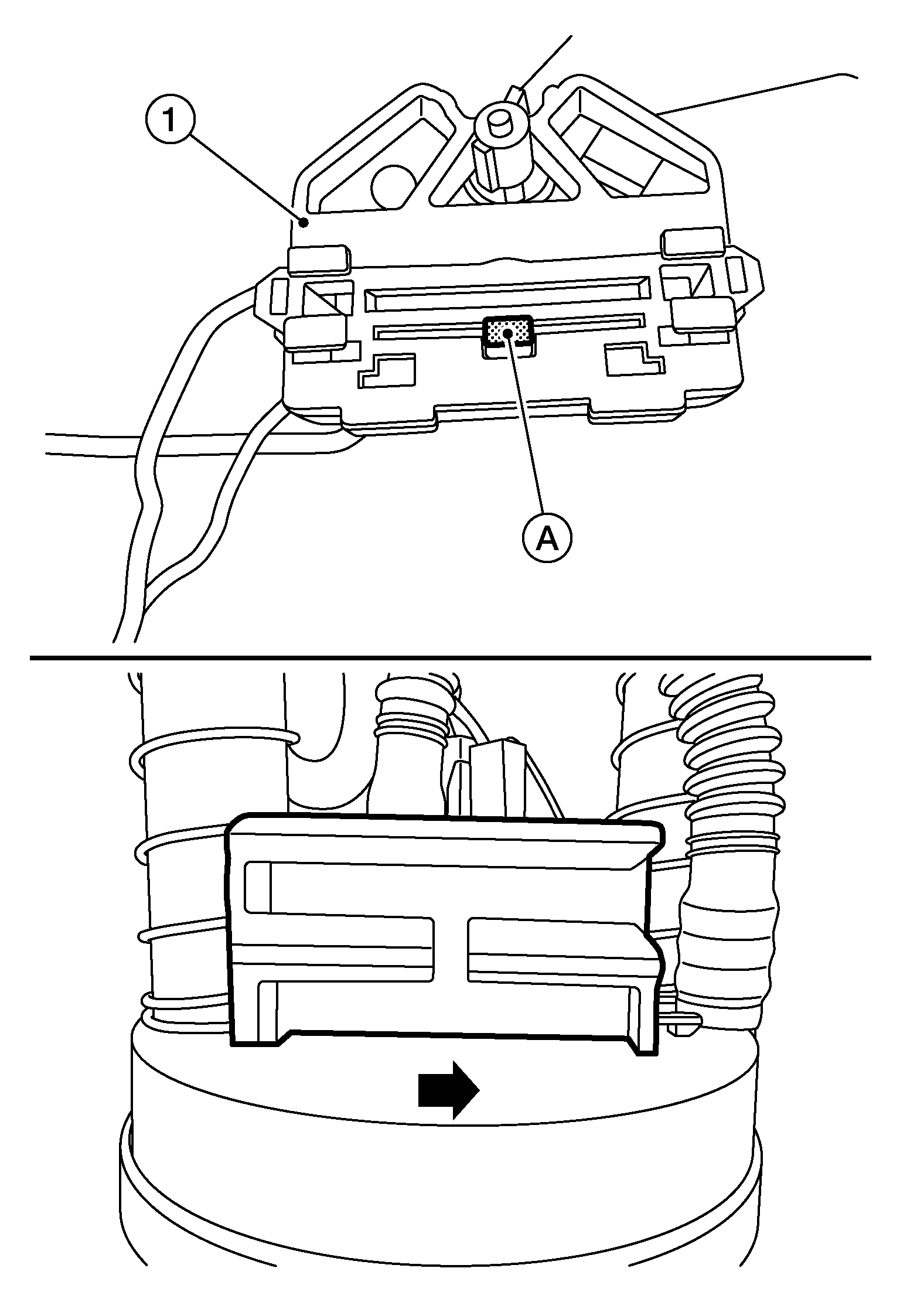

- Release tab (A) using suitable tool, then slide fuel level sensor unit (1) in direction shown.NOTE: Fuel level sensor unit shown removed from fuel filter and fuel pump assembly for clarity.
