2022 Infiniti QX55 EssentialFACTORY OEM SERVICE PROCEDURE

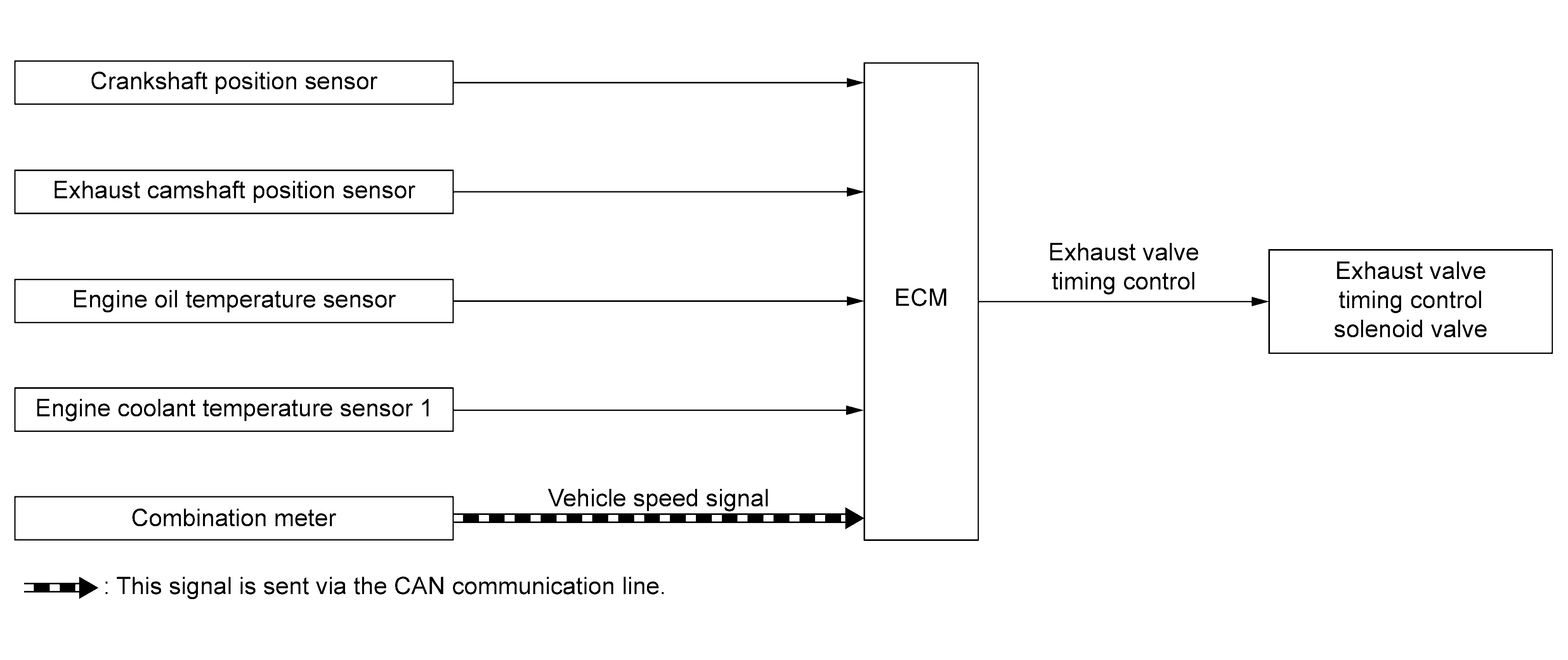

System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

Component parts	Function
Crankshaft position sensor	Crankshaft Position Sensor
Exhaust camshaft position sensor	Exhaust Camshaft Position Sensor
Engine oil temperature sensor	Engine Oil Temperature Sensor
Engine coolant temperature sensor 1	Engine Coolant Temperature Sensor
Exhaust valve timing control solenoid valve	Exhaust Valve Timing Control Solenoid Valve
Combination meter	ECM receives vehicle speed signal via CAN communication.
ECM	ECM
