2022 Infiniti QX55 EssentialFACTORY OEM SERVICE PROCEDURE

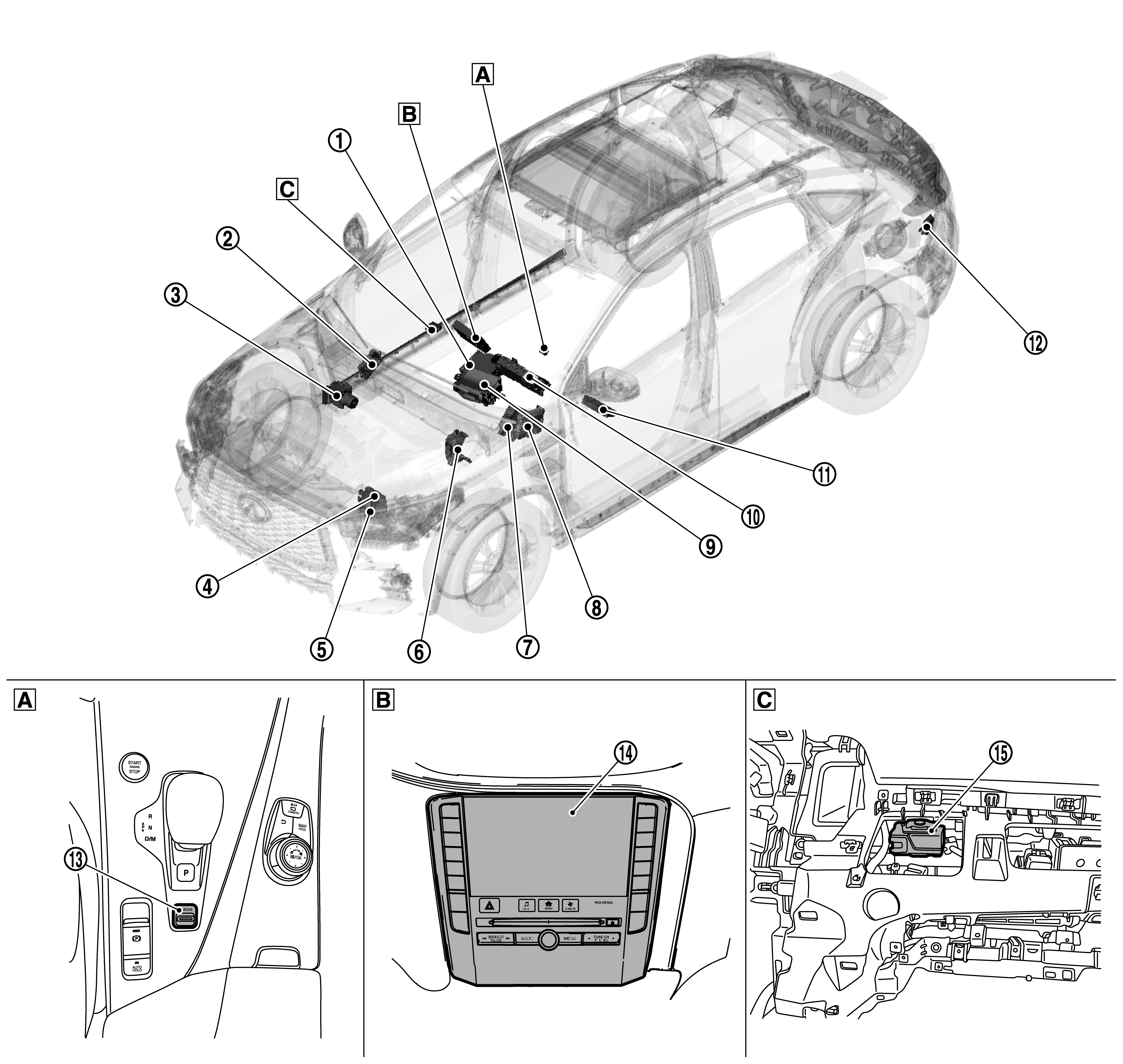

Component Location

GNSILL0339081Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Console finisher assembly

SYMBOL

Integral switch

SYMBOL

Upside of instrument lower panel RH

No.

Component

Description

SYMBOL

AV control unit
  • AV control unit receives the following signal from integral switch.
    • Select signal
  • AV control unit transmits information of PERSONAL mode set by the driver to the chassis control module via the following signal.
    • Drive mode characteristics customizing signal
  • The AV control unit transmits an user information signal to the following unit:
    • Combination meter
    • A/C auto amp.
    • Driver seat control unit
    • ADAS control unit
    • Chassis control module
    • BCM
  • The AV control unit receives a key link signal and a log-in permit signal from chassis control module.
  • The AV control unit receives a key ID signal from BCM.

Refer to Component Location for detailed component location.

SYMBOL

A/C auto amp.
  • A/C auto amp. receives a key link signal and a log-in permit signal from chassis control module.
  • A/C auto amp. receives a key ID signal from BCM.
  • A/C auto amp. receives a user information signal from AV control unit.

Refer to Component Location for detailed component location.

SYMBOL

ABS actuator and electric unit (control unit)
  • ABS actuator and electric unit (control unit) receives the following signals from chassis control module.
    • Active trace control function control signal
    • Drive mode signal
  • ABS actuator and electric unit (control unit) controls the active trace control function according to the received signal.

Refer to Component Location for detailed component location.

SYMBOL

ECM
  • ECM receives the following signal from TCM.
    • Drive mode signal
  • ECM controls throttle angle characteristics and torque according to the received signal and transmits the following signals to ADAS control unit.
    • ECO pedal reaction force control signal

Refer to Component Location for detailed component location.

SYMBOL

TCM
  • TCM receives the following signal from chassis control module.
    • Drive mode signal
  • TCM selects a shift pattern according to the received signal and transmits the following signal to ECM and the ADAS control unit.
    • Drive mode signal

Refer to Component Location for detailed component location.

SYMBOL

Accelerator pedal actuator
  • Accelerator pedal actuator receives the following signal from the ADAS control unit.
    • ECO pedal reaction force control signal
  • Accelerator pedal actuator exerts a feedback force on the accelerator pedal according to the received signal.

SYMBOL

Steering force control module
  • Steering force control module receives the following signal from chassis control module.
    • Drive mode signal
  • Steering force control module controls the steering mode and response according to the received signal.

Refer to Component Location for detailed component location.

SYMBOL

BCM
  • BCM transmits a key ID signal to the following units:
    • Combination meter
    • AV control unit
    • A/C auto amp.
    • Chassis control module
    • Driver seat control unit
    • ADAS control unit
  • BCM receives a key link signal and a log-in permit signal from chassis control module.
  • BCM receives a user information signal from AV control unit.

Refer to Component Location for detailed component location.

SYMBOL

Head up display unit
  • Head up display unit receives a key link signal and a log-in permit signal from chassis control module.
  • Head up display unit receives a user information signal from AV control unit.
  • Head up display unit receives a key ID signal from BCM.

SYMBOL

Combination meter
  • Combination meter receives the following signals from chassis control module.
    • Drive mode signal
    • Key link signal
    • Log-in permit signal
  • Combination meter displays the status of drive mode selected by the driver on the information display according to the received signal.
  • The combination meter receives a key ID signal from BCM.
  • The combination meter receives a user information signal from AV control unit.

Refer to Component Location for detailed component location.

SYMBOL

Driver seat control unit
  • Driver seat control unit receives a key link signal and a log-in permit signal from chassis control module.
  • Driver seat control unit receives a user information signal from AV control unit.
  • Driver seat control unit receives a key ID signal from BCM.

Refer to Component Location for detailed component location.

SYMBOL

ADAS control unit
  • ADAS control unit receives the following signal from chassis control module.
    • Drive mode signal
    • Key link signal
    • Log-in permit signal
  • ADAS control unit controls accelerator reaction force of accelerator pedal actuator according to the received signal and transmits the following signals to accelerator pedal actuator.
    • ECO pedal reaction force control signal
  • The ADAS control unit receives a user information signal from AV control unit.
  • The ADAS control unit receives a key ID signal from BCM.

Refer to Component Location for detailed component location.

SYMBOL

Drive mode switch

Drive mode switch

SYMBOL

Integral switch
  • Integral switch (lower display) allows the driver to set a PERSONAL mode arbitrarily.
  • Integral switch outputs the following signal (set by a driver) to the AV control unit.
    • Select signal

SYMBOL

Chassis control module
  • Chassis control module receives the following signals from drive mode switch and AV control unit.

    From drive mode switch

    • Up/down signal

    From AV control unit

    • Drive mode characteristics customizing signal
  • Chassis control module identifies the drive mode selected by the driver according to the received signal and transmits the following signal to related control modules.
    • Drive mode signal
  • The chassis control module transmits a key link signal and a log-in permit signal to the following units:
    • Combination meter
    • AV control unit
    • A/C auto amp.
    • Driver seat control unit
    • ADAS control unit
    • BCM
  • The chassis control module receives a key ID signal from BCM.
  • The chassis control module receives a user information signal from AV control unit.

Refer to Component Location for detailed component location.
