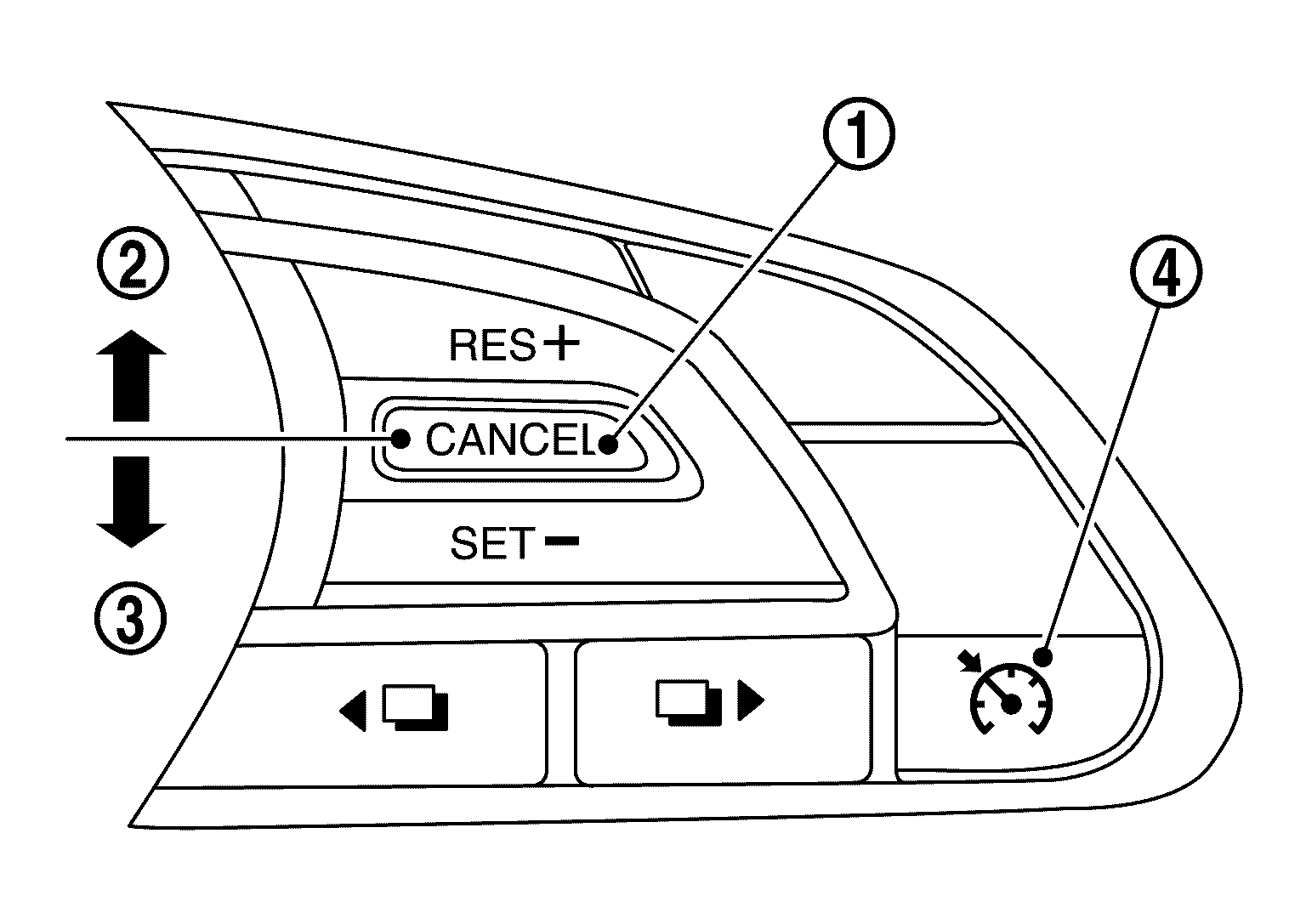

Functions of each switch are listed in the following table.

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Name	Function
	CANCEL switch	When the switch is pressed, the ASCD control is cancelled.
	RES+ switch (RESUME/ACCELERATE)	When the switch is pressed after the cruise control is cancelled in any method other than main switch operation, the vehicle speed is reset to the previous speed setting before the cancellation ^* . When the switch is pressed during cruise control, the setting speed is increased and the vehicle speed increases.
	SET- switch (SET/COAST)	When the switch is pressed at the preferred vehicle speed, the cruise control starts to operate. When the switch is pressed during cruise control, the set speed is reduced and the vehicle speed reduces.
	ASCD MAIN switch	Turns the ASCD ON/OFF.

*: To reset vehicle speed, the vehicle condition must be as follows:

When to See a Mechanic

Stop DIY work and contact a certified mechanic immediately if any of the following apply:

• You smell fuel, burning insulation, or see smoke.

• Brakes feel soft, pull hard to one side, or make grinding noises.

• The engine overheats, stalls repeatedly, or misfires under load.

• You are missing required tools, torque specs, or safe lifting equipment.

• You are not confident in the next step or safety outcome.

Safety Warning

Automatic Speed Control Device (ASCD): Operation
