ENGINE CONTROL SYSTEM : Commercial Service Tools or/and Repair Part
|
Tool name (TechMate No.) |
Description |
|
|

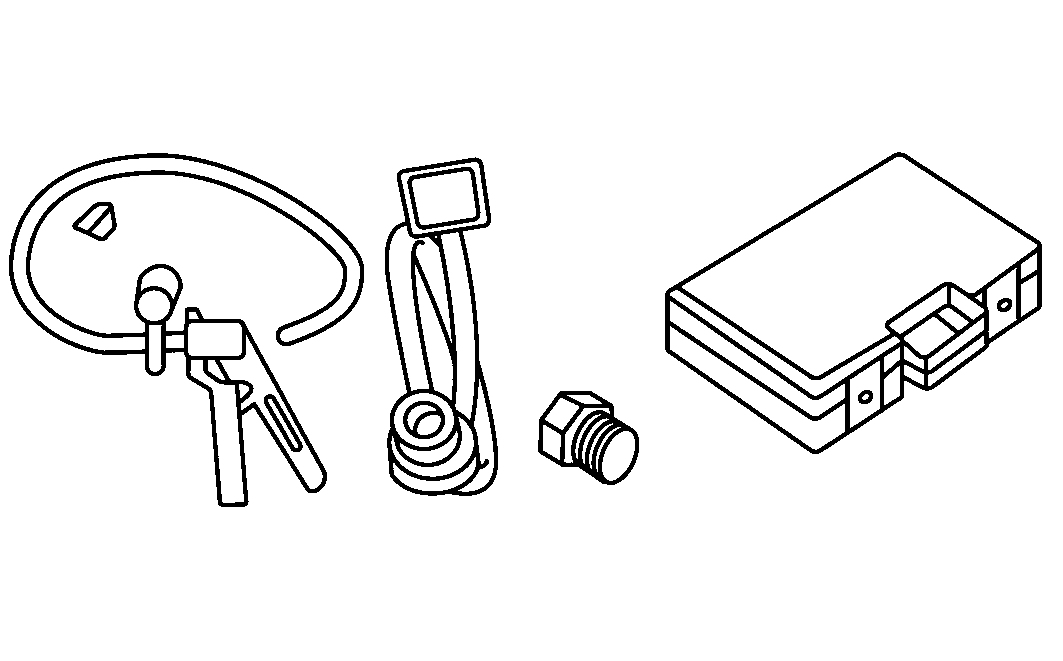

Leak detector i.e.: (J-41416) |
Locates the EVAP leak |
|
|

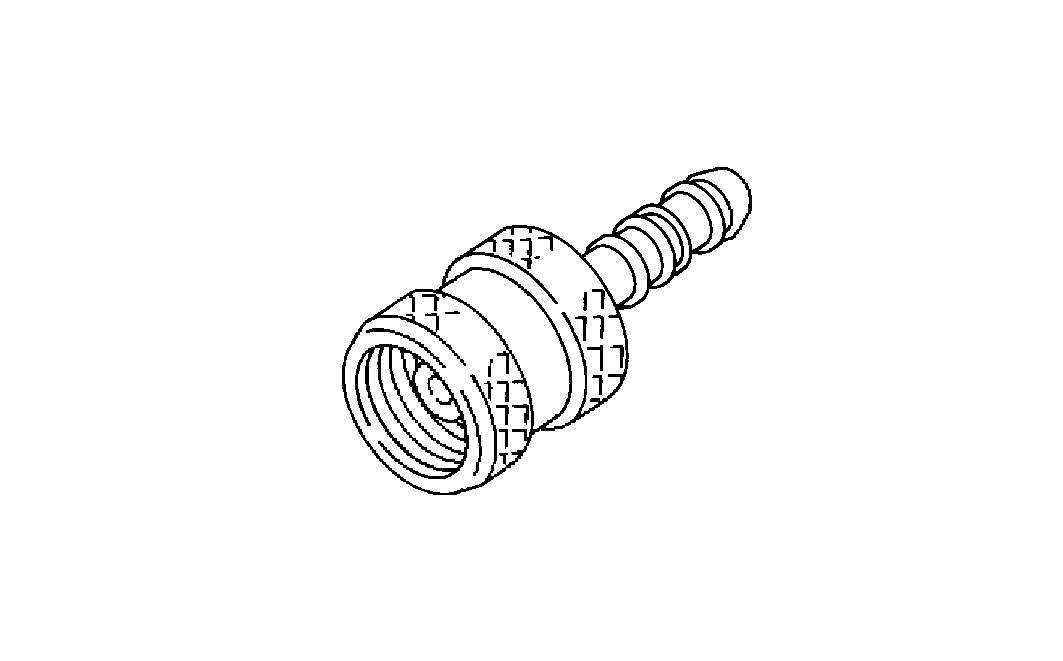

EVAP service port adapter i.e.: (J-41413-OBD) |
Applies positive pressure through EVAP service port |
|
|
Fuel filler cap adapter i.e.: (J-42909) |
Checks fuel tank vacuum relief valve opening pressure |
|
|

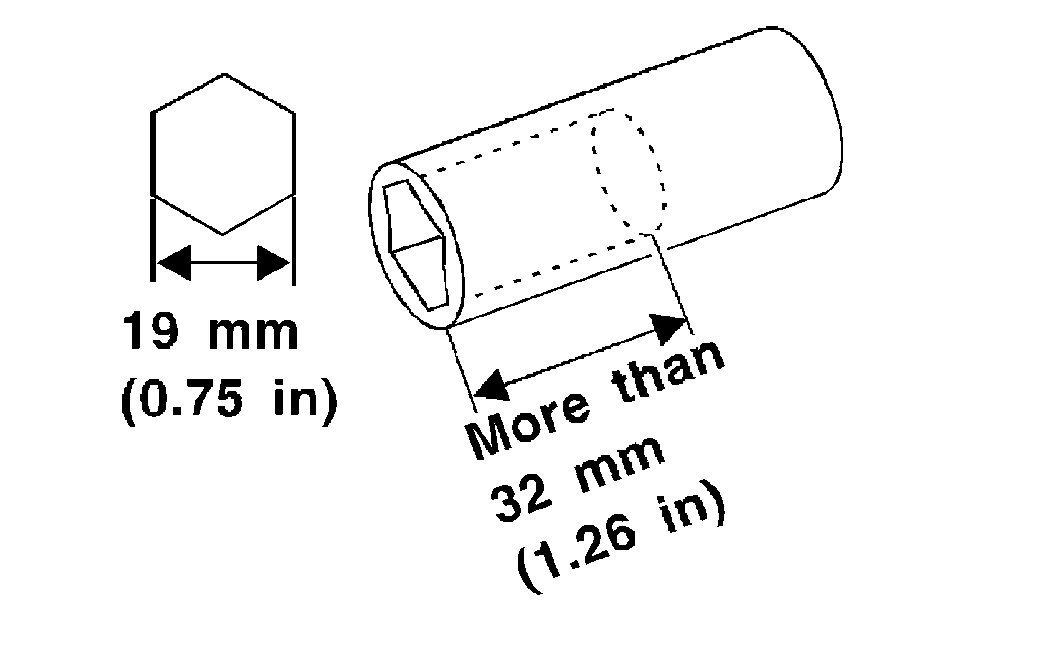

Socket wrench |
Removes and installs engine coolant temperature sensor |
|
|
Oxygen sensor thread cleaner i.e.: (J-43897-18) (J-43897-12) |
Reconditions the exhaust system threads before installing a new oxygen sensor. Use with anti-seize lubricant shown below. a: 18 mm diameter with pitch 1.5 mm for Zirconia Oxygen Sensor b: 12 mm diameter with pitch 1.25 mm for Titania Oxygen Sensor |
|
|

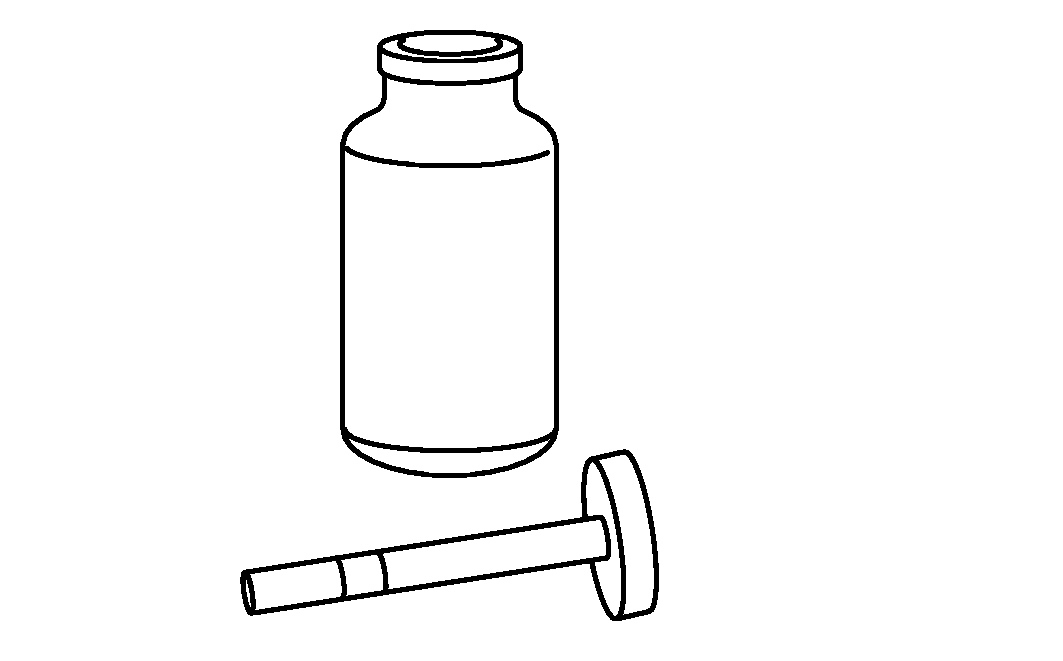

Anti-seize lubricant i.e.: (Permatex TM 133AR or equivalent meeting MIL specification MIL-A-907) |
Lubricates oxygen sensor thread cleaning tool when reconditioning exhaust system threads. |
|
