DTC Detection Logic

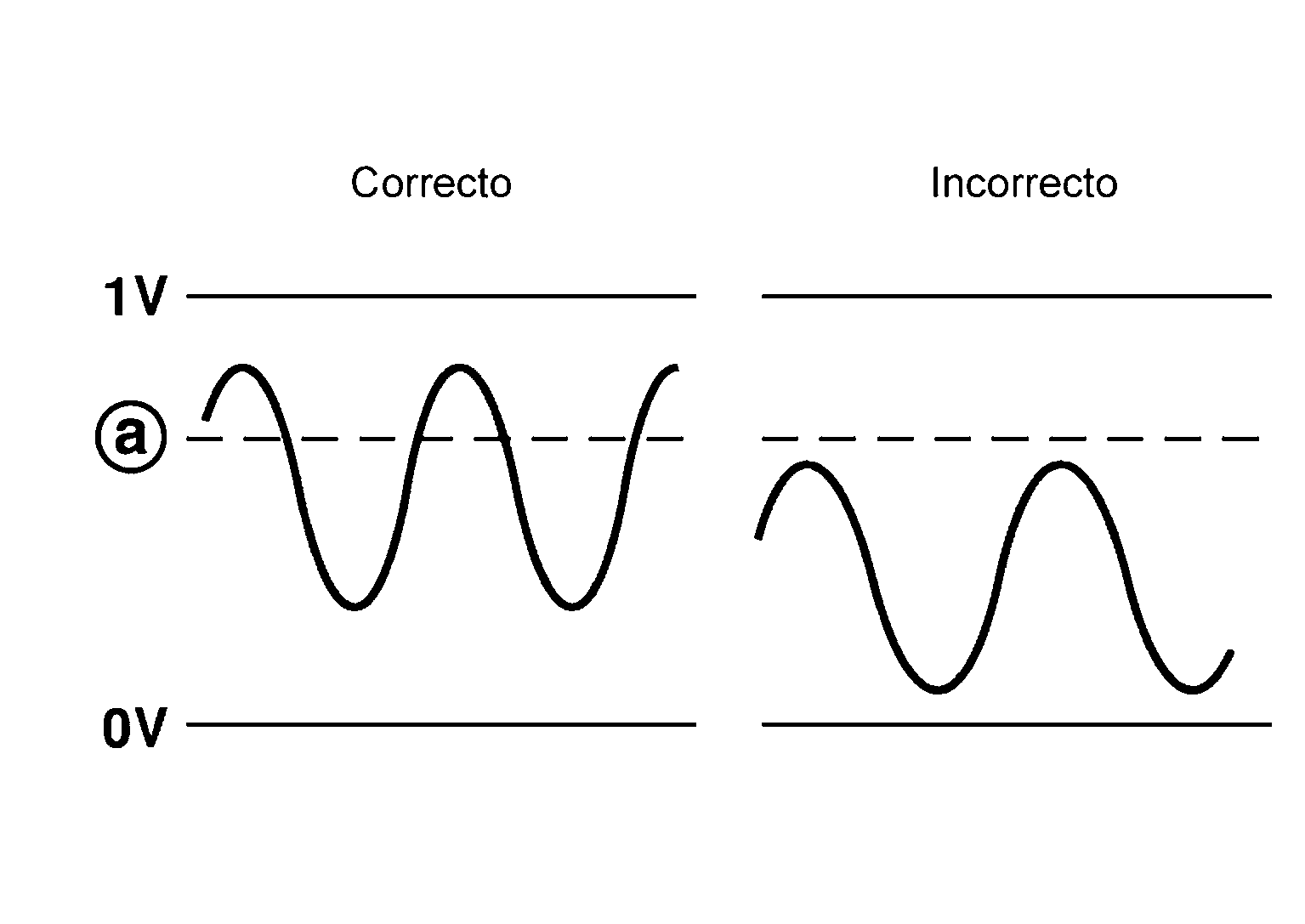

The heated oxygen sensor 2 has a much longer switching time between rich and lean than the air fuel ratio (A/F) sensor 1. The oxygen storage capacity of the three way catalyst (manifold) causes the longer switching time. To judge the malfunctions of heated oxygen sensor 2, ECM monitors whether the maximum voltage of the sensor is sufficiently high during various driving conditions such as fuel cut.
|
|
: 0.71 V |
|
DTC No. |
Trouble diagnosis name (Trouble diagnosis content) |
DTC detecting condition |
Possible cause |
|
P2271 |
O2 sensor signal bank 1 sensor 2 [O2 sensor signal biased/stuck rich bank 1 sensor 2] |
|
|
